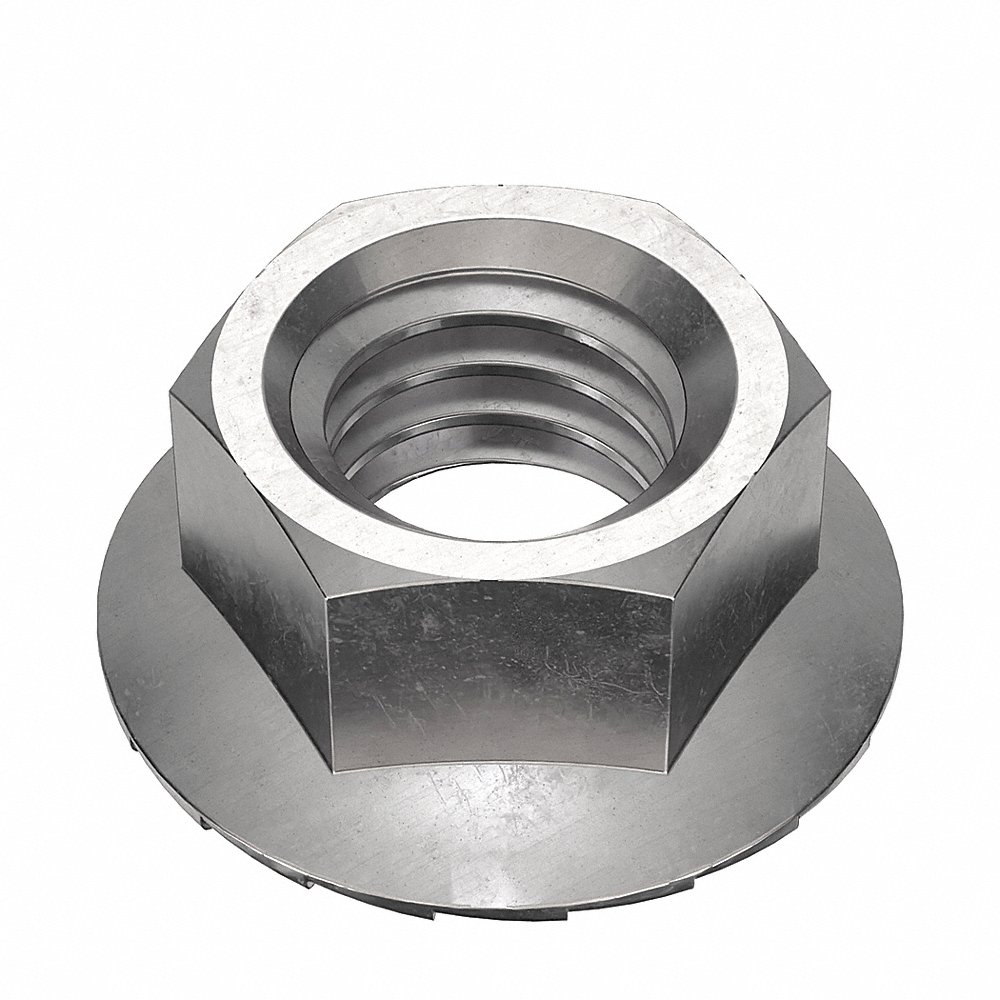

FOREVERBOLT FB3FHNM6P50 Locknut, M6x1 Thread Size, Serrated, 14.8 mm Hex Wd., Flange, Gr. A4, NL-19
Item: CG8VEGModel: FB3FHNM6P50Cross Ref: 53MF33
7 In Stock
Ships within 2 days via
10.00% off
€103.15 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lock Nut |
| Dimensional Standards | Din 6923 |
| Finish | NL-19 |
| Flange Diameter | 14.8 mm |
| Grade | Grade A4 |
| Hex Height | 10 mm |
| Hex Type | Flange Hex |
| Hex Width | 14.8 mm |
| Lock Type | Serrated |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Nut Height | 10 mm |
| Nut Type | Serrated |
| Nut Type | Serrated Lock Nut |
| Standard | DIN 6923 |
| System Of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Size | M6 x 1 |
| Thread Type | Coarse |
| Type | Flange |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Taiwan |
Product Variants
| Product | Model | Thread Size | Hex Width | Hex Height | Nut Height | Hex Type | Nut Type | Type | Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FB3FHNM10P10 | M10 x 1.5 | 22 mm | 10 mm | 10 mm | Flange Hex | Serrated | Flange | Stainless Steel | 10 | €76.33 | |
 |
FB3FHNM12P10 | M12 x 1.75 | 26.703125 mm | 18 mm | 18 mm | Flange Hex | Serrated | Flange | Stainless Steel | 10 | €94.64 | |
 |
FB3FHNM8P25 | M8 x 1.25 | 18 mm | - | 13 mm | - | Serrated | Flange | Stainless Steel | 25 | €93.47 |
