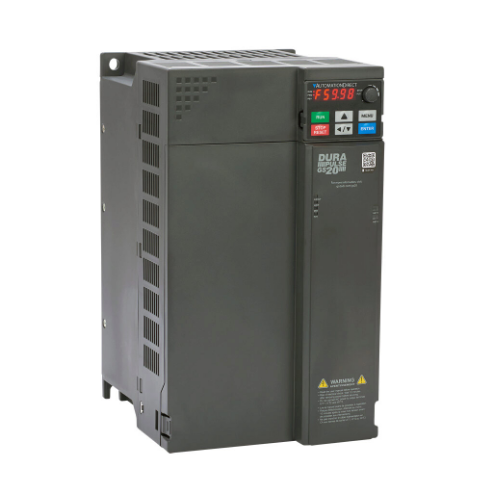

DURAPULSE GS23-2020 General Purpose Drive, Enclosed, 230 VAC, 20Hp With 3-Phase Input
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Drive |
| Amps Rating | 65A With 3-Phase Inputand 32.5A With 1-Phase Input |
| Analog Input Signal Type | Current/Voltage |
| Carrier Frequency | 2-15 kHz |
| Connector Type | Spring Clamp Terminals |
| Control Mode | SVC, V/Hz, FOC Or Torque |
| Controller Type | General Purpose |
| Discrete Input Type | Sinking, Sourcing |
| Discrete Output Type | Relay, Sinking, Sourcing |
| Dynamic Braking | Integrated Dynamic Braking Unit |
| Enclosure Type | Enclosed |
| For Use With | 3-Phase Induction And Permanent Magnet AC Motors |
| Frame Type | F |
| Fuse Type | User Supplied External Fuse |
| Hp By Input Phase | 20 Hp With 3 Phase Input, 10 Hp With 1 Phase Input |
| Input Signal | 4-20 Ma, Voltage, Potentiometer Or Pulse Train Input |
| Input Voltage Signal Range | 10V DC |
| Internally Bypassed | No |
| Ip Rating | IP20 |
| Mounting | Panel, Wall |
| No. Of Discrete Input Points | 7 |
| No. Of Input Phase | 1, 3 |
| No. Of Points Per Discrete Input Common | 4 |
| Nominal Discrete Input Voltage | 24V DC |
| Nominal Discrete Output Voltage | 240V AC/48V DC |
| Output Frequency | 0.1-599 Hz |
| Output Resolution | 10 Bit |
| Output Type | PWM Output |
| Port Protocols | Modbus Rtu Slave Modbus Ascii Slave |
| Port Speed(s) | Up To 115.2k Baud |
| Product Datasheet | automation-direct-gs21-10p2.pdf |
| Programming Language | Ladder |
| Relay Configuration | Form C (SPDT) Relay |
| Reverse Capability | Built In |
| Safe Torque Off (sto) | Yes |
| Series | GS20 Series |
| Temp. Rating | -20°C to +50°C |
| Variable Torque Amps Rating | 69A |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 7.52 |
| HS code | 850440 |
| Country of Origin | TW |
