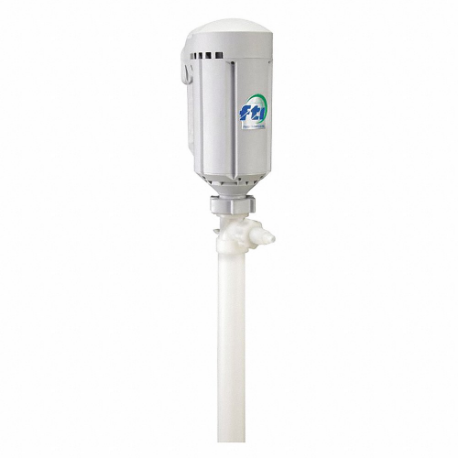

FINISH THOMPSON PFV-40 W/M3T Electric Operated Drum Pump, 1 Hp Motor Hp, 55 Gal For Container Size, 110VAC
Get it by Wednesday, Dec 17
10.00% off
€2,687.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Adapter Connection Type | Smooth Bore |
| Agency Compliance | CSA |
| Bung Connection Dia. | 2" |
| Bung Connection Size | 2" |
| Cord Length | 12 ft. |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Inside Dia. | 1" |
| Discharge Tube Outlet I.d. | 1" |
| Discharge Tube Outlet O.d. | 1" |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Explosion Proof | No |
| Food Grade | No |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | Acetic Acid, Ammonium Hydroxide, Antifreeze, Automatic Transmission Fluid, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Fertilizers, Formic Acid, Fungicides, Herbicides, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sulfuric Acid, Trichlorethylene, Water |
| Frequency | 60 Hz |
| Full Load Amps | 9.1A |
| Hose I.d. | 1" |
| Hose Inside Dia. | 1" |
| Hose Length | 60" |
| Hose Material | PVC |
| Hose Outside Dia. | 1 3/8" |
| Hose Tube Material | PVC |
| Housing Material | PVDF |
| Housing Material - Pumps | PVDF |
| Includes | Clamp, Hose, Motor, Pump |
| Includes Bung Adapter | No |
| Includes Discharge Hose | Yes |
| Includes Nozzle | No |
| Includes Suction Tube | Yes |
| Max. Flow Rate | 40 GPM |
| Max. Fluid Temp. | 120°F |
| Max. Head - Pumps | 80 ft. |
| Max. Head Pressure | 35 psi |
| Max. Outlet Pressure | 35 psi |
| Max. Temp. | 120°F |
| Max. Viscosity | 500 cPS |
| Metered | No |
| Min. Fluid Temp. | 35°F |
| Min. Temp. | 35°F |
| Motor Enclosure | Tefc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Hp | 1 hp |
| Motor Speed | 10000 RPM |
| Motor Type | Universal AC |
| Noise Level | 81 dB |
| Noise Level | 81 dBA |
| Nominal Voltage | 110V AC |
| Package Type | Basic Pump With Discharge Hose |
| Phase | 1 |
| Plug Type | NEMA 5-15 |
| Power Source | Electric |
| Pump Connection Type | Smooth Bore |
| Pump Package Type | Basic Pump With Discharge Hose |
| Rated Voltage | 115V |
| Runs Dry | No |
| Seal Material | Fluoroelastomer |
| Self Priming | Yes |
| Self-priming | Yes |
| Series | PF Series |
| Suction Tube I.d. | 2" |
| Suction Tube Inside Dia. | 2" |
| Suction Tube Length | 40" |
| Suction Tube Material | PVDF |
| Suction Tube O.d. | 2" |
| Thermal Protection | No |
| Variable Speed | No |
| Voltage Rating | 115V AC |
| Wetted Material | Alloy, PTFE, PVDF, Viton |
| Wetted Materials | Alloy 625, PTFE, PVDF, Viton |
Shipping Info:
| Ship weight (kg) | 10.53 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
