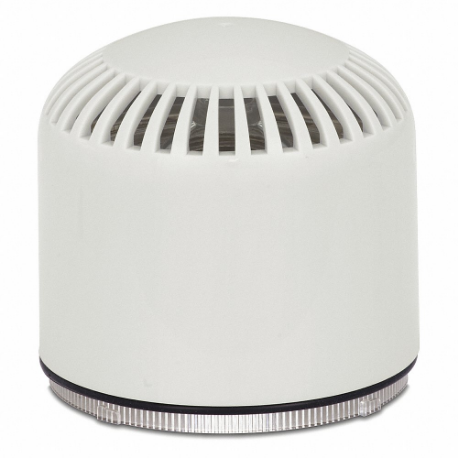

FEDERAL SIGNAL SLM800GY Electronic Sounder, 120 To 240VAC/12 To 24VAC/Dc, Indoor/Outdoor, Conduit/Surface
Item: CP4YEFModel: SLM800GYCross Ref: 436M42
7 In Stock
Ships within 2 days via
10.00% off
€347.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sounder |
| Alarm Volume @ 1 M - Maximum | 111 dBA |
| Alarm Volume @ 1 M - Minimum | 99 dBA |
| Alarm Volume @ 10 Ft - Maximum | 105 dBA |
| Alarm Volume @ 10 Ft - Minimum | 89 dBA |
| Amps | 35-240 mA |
| Amps Drawn | 35-240 mA |
| Audible Alarm Type | Siren |
| Color | Gray |
| Depth | 3.906" |
| Diameter | 3.906" |
| Enclosure Rating | Type 3R, IP65 |
| Environmental Rating | Ordinary Location |
| Features | High Impact And Uv Resistance |
| For Location | Outdoor |
| Height | 3.438" |
| Housing Color | Gray |
| Housing Material | Polycarbonate |
| Includes | Top Module |
| Indoor/outdoor | Indoor/Outdoor |
| Ip Rating | IP65 |
| Lens Color | Gray |
| Material | Polycarbonate |
| Mounting | Conduit, Surface |
| Mounting Location | Wall Mount |
| Mounting Style | Surface Mount |
| Nema Rating | Nema 3R |
| Number Of Sound Patterns | 64 |
| Operating Current | 200A @ 240V AC, 270A @ 24DC, 300A @ 120V AC, 330A @ 12V DC, 700A @ 24V AC, 800A @ 12V AC |
| Operating Current (amps) | 330 @ 12V DC, 270 @ 24V DC, 800 @ 12V AC, 700 @ 24V AC, 300 @ 120V AC, 200 @ 240V AC |
| Operating Temp. Range | -22°F to +122°F |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -40°F |
| Operating Voltage | 12-24V AC/DC/120-240V AC |
| Overall Depth | 3 7/16" |
| Overall Diameter | 3 7/8" |
| Product Type | Sounder Module |
| Rating | IP65, NEMA 3R |
| Sound Continuity | Continuous |
| Sound Pattern | Continuous |
| Sound Style | Siren |
| Vibrating | No |
| Vibration | No Vibration |
| Visual Indicator Type | No Visual Indicator |
| Voltage | 12-24V AC/DC/120-240V AC |
| Volume Selection | Selectable Volume |
| Warranty | 5 yrs. |
| Width | 3.906" |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 8.73 |
| Ship length (cm) | 9.92 |
| Ship width (cm) | 9.92 |
| Country of Origin | IT |
Product Variants
| Product | Model | Voltage | Depth | Housing Color | Diameter | Color | Audible Alarm Type | Indoor/outdoor | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
506-120-1 | 120V AC | 2 5/8" | - | - | Gray | Bell | Indoor/Outdoor | -31°F to +150°F | €489.13 | |
 |
504-120-1 | 120V AC | 2 1/4" | - | - | Gray | Bell | Indoor/Outdoor | -31°F to +150°F | €326.50 | |
 |
EHORN-120-240 | 120/240V AC | 9.609" | - | - | Gray | Horn | Indoor/Outdoor | -40°F to +150°F | €3,958.47 | |
|
EHORN-024 | 24V DC | 9.609" | - | - | Gray | Horn | Indoor/Outdoor | -40°F to +150°F | €3,785.60 | |
 |
450EWBX-024 | 12-24V DC | 3 7/8" | Gray | - | Gray | Horn | Indoor | -65°F to +150°F | €990.55 | |
 |
LP7-18-30A | 18-30V DC | - | White | 3.667" | White, Amber | Siren | - | +14°F to +131°F | €289.61 | |
 |
LP7-18-30R | 18-30V DC | - | White | 3.667" | White, Red | Siren | - | +14°F to +131°F | €294.24 |
