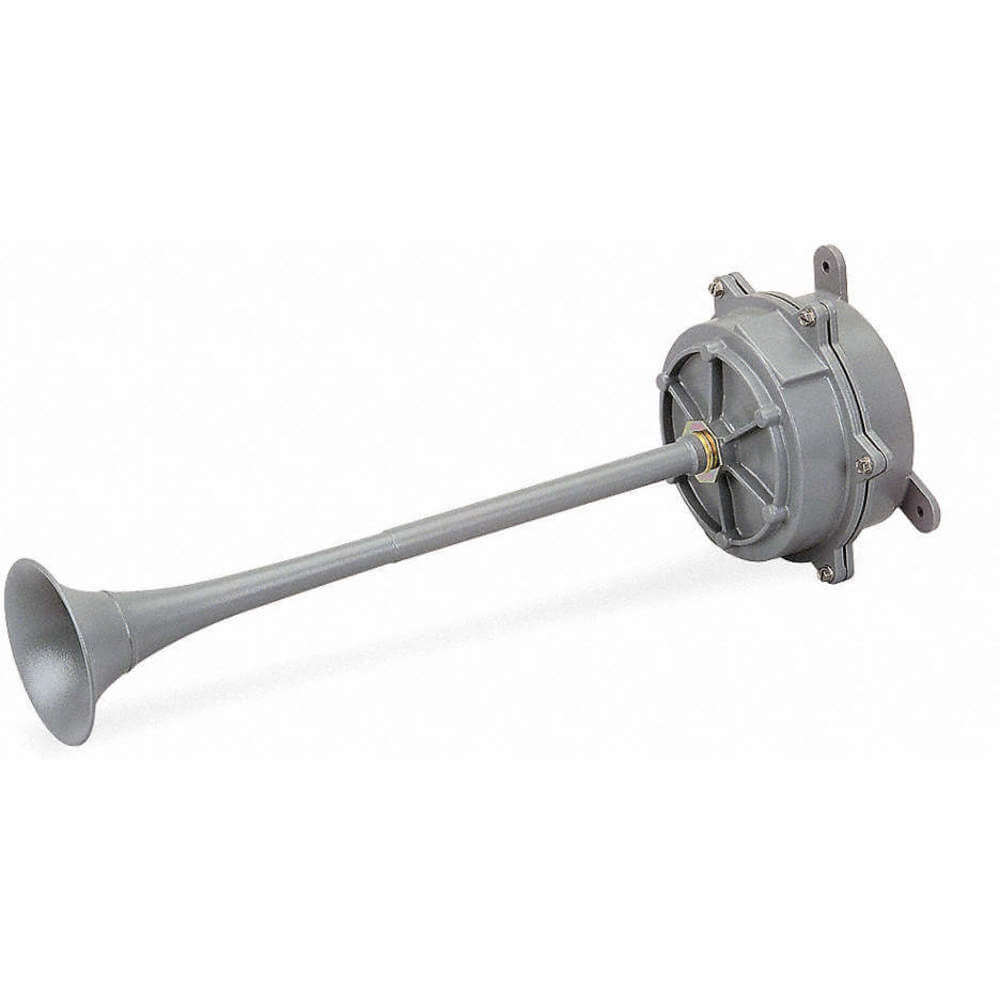

FEDERAL SIGNAL 55-120-1 Resonating Horn 120VAC 0.75 AC Gray
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,125.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Horn |
| Alarm Volume @ 1 M - Maximum | 115 dBA |
| Alarm Volume @ 10 Ft - Maximum | 105 dBA |
| Amps | 0.75A |
| Color | Gray |
| Decibels | 105dB @ 10 ft. |
| Depth | 19 3/4" |
| Enclosure Rating | Type 3R |
| Environmental Rating | Ordinary Location |
| Features | Weatherproof, Water And Dust Tight |
| For Location | Indoor/Outdoor |
| Height | 8" |
| Housing Material | Cast Aluminum |
| Includes Mounting Hardware | Mounting Hardware Included |
| Indoor/outdoor | Indoor/Outdoor |
| Ip Rating | NEMA 4 |
| Material | Cast Aluminum |
| Mounting | Bracket |
| Mounting Style | Surface Mount |
| Mounting Type | Bracket |
| Nema Rating | Nema 3R |
| Noise Level | 105 dB @ 10 ft. |
| Operating Temp. Range | -35°F to +150°F |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | -35°F |
| Operating Voltage | 120V AC |
| Overall Depth | 19 3/4" |
| Overall Length | 8" |
| Overall Width | 8" |
| Product Type | Horn |
| Sound Continuity | Continuous |
| Sound Principle | Resonating |
| Sound Style | Horn |
| Vibration | No Vibration |
| Voltage | 120V AC |
| Warranty | 5 yrs. |
| Width | 8" |
Shipping Info:
| Ship weight (kg) | 2.88 |
| Ship height (cm) | 60.71 |
| Ship length (cm) | 24.38 |
| Ship width (cm) | 21.84 |
| HS code | 8531800030 |
| Country of Origin | US |
Product Details:
Federal Signal 55-120-1 resonating horn is an audible signalling device that produces a loud warning sound with an intensity of 105 dB at 10 feet. It is ideal for industrial, commercial and marine applications.
Features:
- Federal Signal 55-120-1 resonating horn features cast aluminium housing for resisting corrosion on exposed surfaces.
- It is equipped with a Type 3R enclosure that protects against rain, wind-blown dust and sleet.
- This horn offers a swivel bracket for easy installation and angelling.
- It can be operated at temperatures ranging from -37 to 66 degrees C.
- This spun brass projector produces a smooth tone by matching the frequency of the vibrating diaphragm.
Standards and Approvals:
- UL
- CSA
Frequently Asked Questions:
Q. What is the duty cycle of Federal Signal 55-120-1 resonating horn?
A. 5 minutes ON / 5 minutes OFF.
Q. What safety measures should be taken while operating Federal Signal 55-120-1 resonating horn?
A.
- This horn produces loud sounds that may cause permanent hearing loss.
- Always minimise your exposure to the horn while operating and wear hearing protection.
- Do not use the horn indoors or in enclosed areas.
