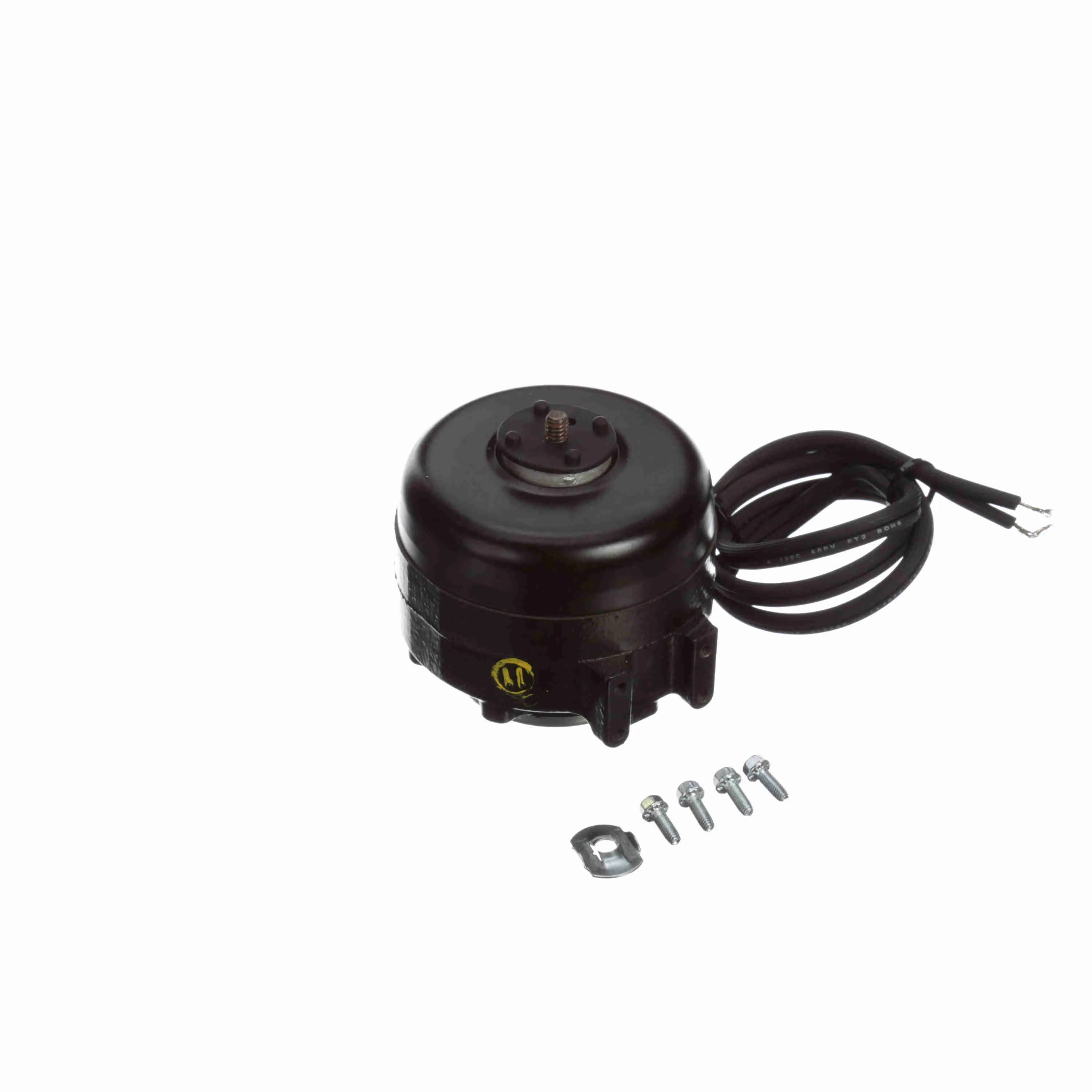

FASCO UB599 Refrigeration Motor, 1550 RPM, 230 Volt, Unit Bearing, TEAO
Item: AH7KKRModel: UB599Cross Ref: 36VE41
7 In Stock
Ships within 2 days via
10.00% off
€96.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Refrigeration Motor |
| Ambient Temp. | 40°C |
| Amps | 0.27A |
| Application | HVAC/R |
| Bearing Type | Unit |
| Body Dia. | 3 7/16" |
| Bolt Circle Dia. | 2 13/16" |
| Drive End Bearing | Unit |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Electrical Type | Shaded Pole |
| Features | Totally Enclosed Air Over |
| Frame | Unit Bearing |
| Frame Length | 3.12" |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 0.27A |
| Hp | 1/100 hp |
| Hz | 60 Hz |
| Includes | Speed Nut And Screw |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 28" |
| Length Less Shaft | 2 13/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Unit |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | TEAO |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rear/Double Foot |
| Motor Service Factor | 1 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Clockwise Lead End |
| Motor Shaft Rotation | CWOSE |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting Stud Length | 3/8" |
| Mounting Stud Pattern | 1 1/8" x 5/8" (L, S Mounting), 2 13/16" (E, G Mounting) |
| Mounting Type | 2 Boss, Ose 3 Holes |
| Nameplate Rpm | 1550 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| No. Of Studs | 2, 3, 4 |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Unit |
| Output Wattage | 9 W |
| Output Watts | 9 W |
| Overall Length | 3 3/8" |
| Phase | 1 |
| Rpm | 1550 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Extension Size | 0.415" |
| Shaft Length | 7/16" |
| Shaft Type | Threaded |
| Standards | Ul And Csa |
| Starting Method | Across The Line |
| Stud Quantity | 2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting) |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V |
| Weight | 3 lbs. |
Shipping Info:
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 10.8 |
| Country of Origin | CN |
Product Details:
- Mounting Stud Length : 3/8"
