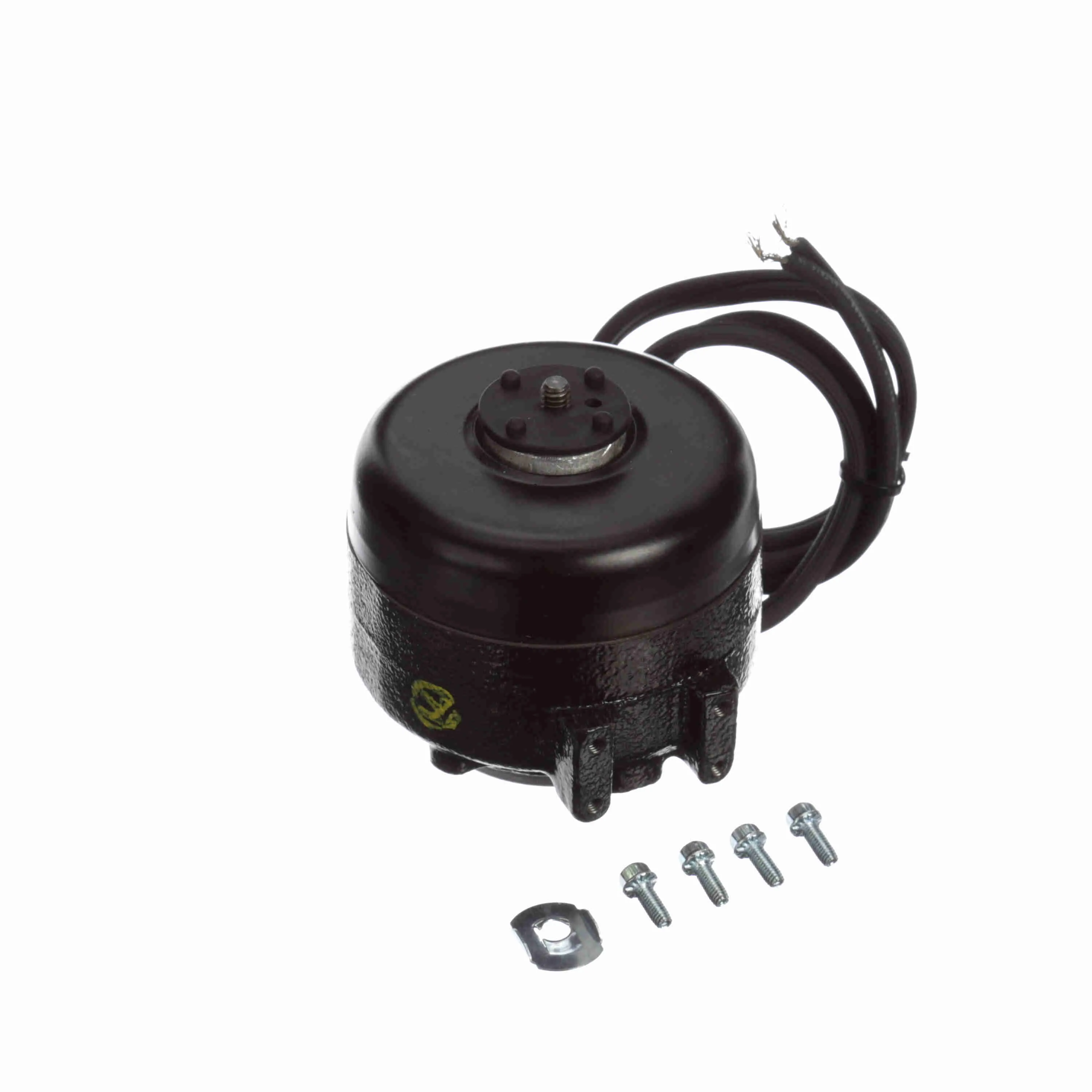

FASCO UB597 Unit Bearing Motor 1/100 HP 0.53 CW 115V | AH7KKT 36VE42

FASCO UB597 Refrigeration Motor, 1550 RPM, 115 Volt, Unit Bearing, TEAO

Item: AH7KKTModel: UB597Cross Ref: 36VE42
7 In Stock

Ships within 2 days via

€91.57
10.00% off
€82.41 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Refrigeration Motor
Ambient Temp. 40°C
Amps 0.53A
Application HVAC/R
Bearing Type Unit
Body Dia. 3 7/16"
Bolt Circle Dia. 2 13/16"
Drive End Bearing Unit
Duty Continuous
Duty Cycle Continuous
Electrical Type Shaded Pole
Features Totally Enclosed Air Over
Frame Unit Bearing
Frame Length 3.12"
Frame Material Cast Iron
Frequency 60 Hz
Full Load Amps 0.53A
Hp 1/100 hp
Hz 60 Hz
Includes Speed Nut And Screw
Ins. Class Class B
Insulation Class Class B
Lead Length 28"
Length Less Shaft 2 13/16"
Max. Ambient Temp. 40°C
Motor Application HVAC/R
Motor Bearings Unit
Motor Design Shaded Pole
Motor Enclosure Design TEAO
Motor Frame Material Cast Iron
Motor Mounting Position All Angle
Motor Mounting Type Rear/Double Foot
Motor Service Factor 1
Motor Shaft Design Threaded
Motor Shaft Rotation Clockwise Lead End
Motor Shaft Rotation CWOSE
Motor Sub Application Refrigerator/Freezer
Motor Thermal Protection Auto
Motor Type Shaded Pole
Mounting Stud Length 3/8"
Mounting Stud Pattern 1 1/8" x 5/8" (L, S Mounting), 2 13/16" (E, G Mounting)
Mounting Type 2 Boss, Ose 3 Holes
Nameplate Rpm 1550 RPM
No. Of Poles 4
No. Of Speeds 1
No. Of Studs 2, 3, 4
Number Of Speeds 1
Opp Drive End Bearing Unit
Output Wattage 9 W
Output Watts 9 W
Overall Length 3 3/8"
Phase 1
Rpm 1550 RPM
Service Factor 1
Shaft Dia. 1/4"
Shaft Extension Size 0.415"
Shaft Length 7/16"
Shaft Type Threaded
Standards Ul And Csa
Starting Method Across The Line
Stud Quantity 2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
Thermal Protection Automatic
Usable @ 200v No
Usable @ 208v No
Voltage 115V
Weight 3 lbs.

Shipping Info:

Ship weight (kg) 1.41
Ship height (cm)10.8
Ship length (cm)9.53
Ship width (cm)10.8
Country of OriginCN

Product Details:

Fasco UB597 unit bearing motor provides reliable rotational power for the circulation of air and maintaining optimal temperatures in the HVAC system. It is used in refrigeration and HVAC systems, serving as a critical component for driving fans and other rotating elements.

Features:

  • This unit-bearing motor comes with a cast iron motor frame, ensuring durability and resistance to environmental conditions.
  • It allows all-angle motor mounting position for flexibility in positioning for efficient and adaptable performance.
  • This motor enclosure is totally enclosed air-over, enhancing protection against external elements and ensuring optimal cooling efficiency.
  • It has automatic thermal protection, providing safety by preventing overheating during extended operation, contributing to a prolonged motor lifespan.

Compatible Accessories:

  • Dayton 2MXX9 Propeller: It is designed to efficiently move air or other fluids while running at a maximum speed of 1550 rpm.

Frequently Asked Questions:

Q. What type of mounting does this Fasco UB597 unit bearing motor offer?

A. It offers rear / double foot motor mounting, providing versatile installation options for diverse applications.

Q. Does this motor come with nuts and screws for installation?

A. It comes included with a speed nut and screw, facilitating a secure and straightforward installation process.

Q. What is the ambient temperature rating of Fasco UB597 unit bearing motor?

A. It has an ambient temperature rating of 40 degrees C.
