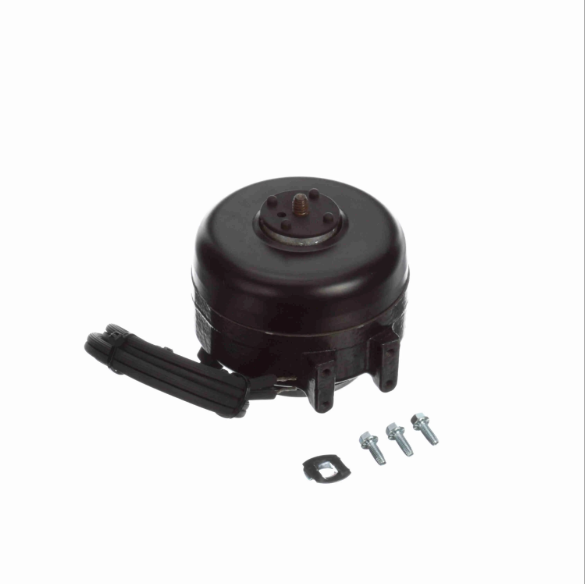

FASCO UB587 Unit Bearing Motor, Cast Iron Frame, Rear/Double Foot, 2.3W Output, 230V AC
Get it by Friday, Dec 19
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Unit Bearing Motor |
| Application | HVAC/R |
| Bearing Type | Unit |
| Body Dia. | 3 7/16" |
| Bolt Circle Dia. | 2 13/16" |
| Duty Cycle | Continuous |
| Features | Totally Enclosed Air Over |
| Frame | Non-Standard |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 0.08A |
| Hp | 1/370 hp |
| Insulation Class | Class B |
| Lead Length | 28" |
| Length Less Shaft | 2 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Unit |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rear/Double Foot |
| Motor Service Factor | 1 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Counter Clockwise Lead End |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Thermal Protection | Impedance |
| Motor Type | Shaded Pole |
| Mounting Stud Length | 3/8" |
| Mounting Stud Pattern | 1 1/8" x 5/8" (L, S Mounting), 2 13/16" (E, G Mounting) |
| Nameplate Rpm | 1300 RPM |
| No. Of Speeds | 1 |
| No. Of Studs | 2, 3, 4 |
| Number Of Speeds | 1 |
| Output Wattage | 2.3 W |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Length | 7/16" |
| Standards | Ul And Csa |
| Stud Quantity | 2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting) |
| Thermal Protection | Impedance |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Weight | 2 lbs. |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 11.43 |
| Country of Origin | CN |
