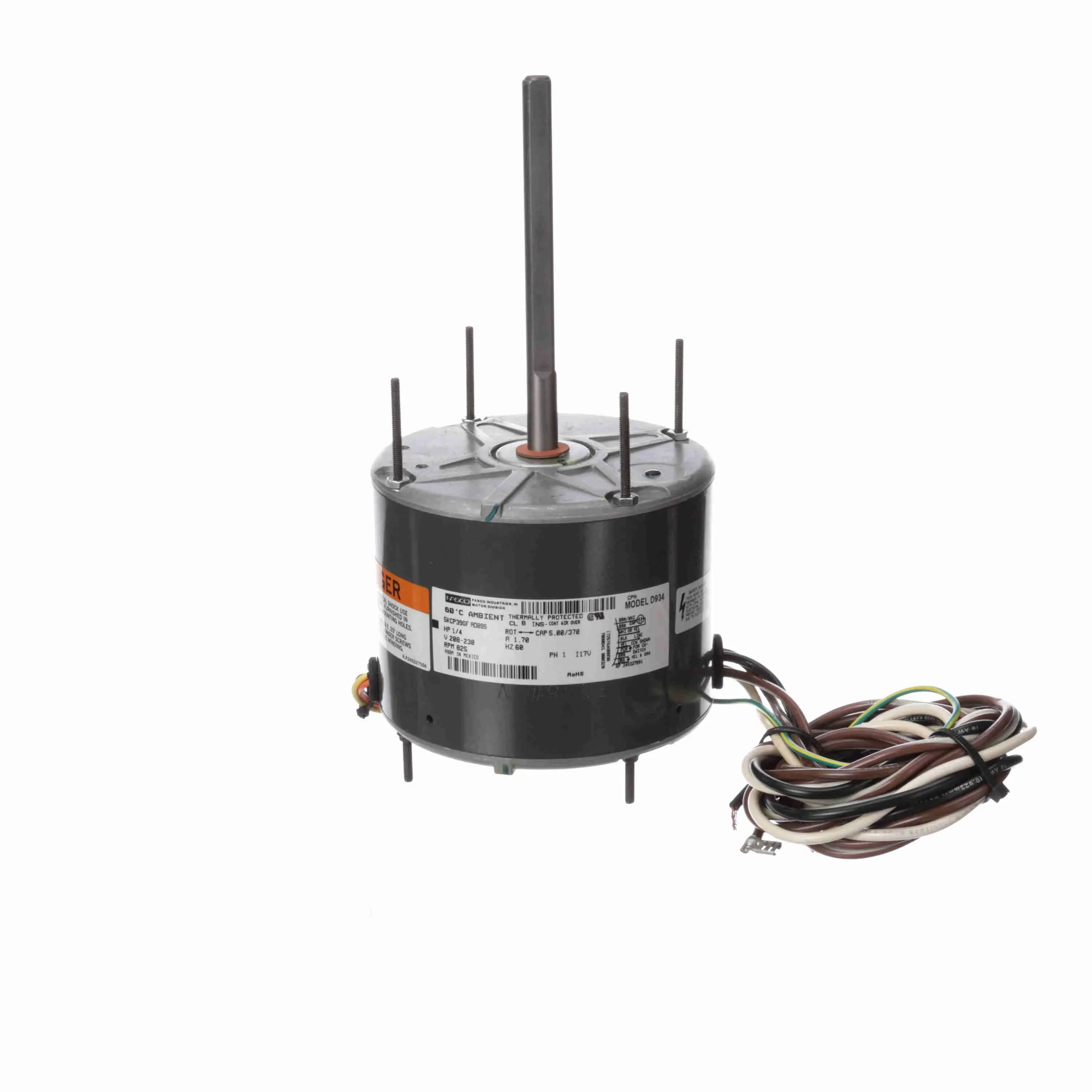

FASCO D934 5KCP39GFAD89S Condenser Fan Motor, 1/4 HP, 1 Phase, 60 Hz, 208-230 V, 825 rpm, 1 Speed, 48 Frame
Get it by Monday, Aug 24
€257.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 60°C |
| Application | Condenser Fan |
| Body Dia. | 5.63" |
| Capacitor Required | Included |
| Capacitor Required Mfd/v | 5 µF, 370V |
| Duty Cycle | Continuous Air Over |
| Electrical Phase | 1 |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Totally Enclosed |
| Frame Length | 3.82" |
| Frame Material | Rolled Steel |
| Frame Size | 48 |
| Full Load Amps | 1.7A |
| Length Less Shaft | 3 7/8" |
| Motor Application | HVAC-R |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Orientation | Any |
| Motor Shaft Rotation | Reversible |
| Motor Sub Application | Condenser Fan Motor |
| Mounting Location | Resilient |
| Overall Length | 10 14/25" |
| Pole | 8 |
| Rotation | CCW |
| Shaft Dia. | 1/2" |
| Speed | 0-1000 RPM |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Voltage | 208/230V |
Shipping Info:
| Ship weight (kg) | 5.04 |
| Ship height (cm) | 15.29 |
| Ship length (cm) | 35.71 |
| Ship width (cm) | 15.34 |
| Country of Origin | MX |
