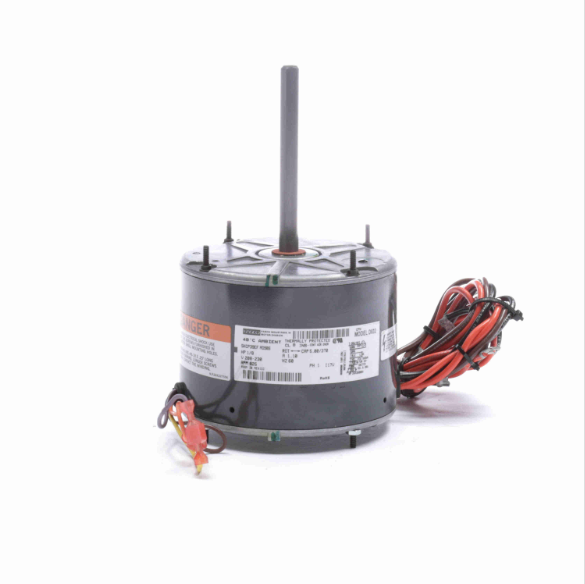

FASCO D832 5KCP39EFAD90S Condenser Fan Motor, 1/8 HP, 825 RPM, 208/230V AC, 48 Frame
Item: CH9XECModel: D832Cross Ref: 48GP11 / 5KCP39EFAD90S
7 In Stock
Ships within 2 days via
10.00% off
€276.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 1.1A |
| Bearing Type | Sleeve |
| Body Dia. | 5.7" |
| Bolt Circle Dia. | 5 13/16" |
| Capacitor Required | Yes |
| Dia. | 5.7" |
| Diameter | 5.7" |
| Drive End Bearing | Ball |
| Duty | Continuous Air Over |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Open Air Over |
| Frame | 48 |
| Frame Length | 3.57" |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.1A |
| Hp | 1/8 hp |
| Includes Capacitor | No |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Length | 9.06" |
| Length Less Shaft | 4 5/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | OEM Replacement |
| Motor Bearings | Sleeve |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | TEAO |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Orientation | Any |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Size | #8-32 |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 825 RPM |
| No. Of Poles | 8 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Oem Replacement Brand | Rheem/Ruud |
| Opp Drive End Bearing | Ball |
| Output Hp | 1/8 hp |
| Output Kw | 0.10 kW |
| Overall Length | 9 1/16" |
| Permanent Split Capacitor Required | 5 µf, 370V |
| Phase | 1 |
| Product Datasheet | fasco-d832.pdf |
| Replacement For | 21276-01 |
| Rpm | 825 RPM |
| Service Factor | 1 |
| Shaft Extension Size | 4.75" |
| Shaft Length | 4 3/4" |
| Shaft Type | Double Flat |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V |
| Weight | 10 lbs. |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 15.29 |
| Ship length (cm) | 36.17 |
| Ship width (cm) | 15.34 |
| Country of Origin | IN |
Documentation:
Product Variants
| Product | Model | Voltage | Motor Enclosure Design | Motor Design | No. Of Speeds | Frame | Phase | Hp | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D847 | 208-230V | TEAO | Permanent Split Capacitor | 1 | 48 | 1 | 1/8 hp | Auto | €464.11 | |
 |
D1152 | 115V | OAO | Shaded Pole | 1 | 3.3 | 1 | 1/20 hp | Automatic | €180.57 | |
 |
D1122 | 208-230V | OAO | Permanent Split Capacitor | 1 | 3.3 | 1 | 1/16 hp | Automatic | €303.38 | |
 |
D1173 | 115V | OAO | Shaded Pole | 1 | 3.3 | 1 | 1/35 hp | Automatic | €334.68 | |
 |
D909 | 208-230V | TEAO | Permanent Split Capacitor | 1 | 48 | 1 | 1/4 hp | Auto | €227.01 | |
 |
D1167 | 208-230V | OAO | Shaded Pole | 1 | 3.3 | 1 | 1/40 hp | Automatic | €473.58 | |
 |
D895 | 200-230V | TEAO | Permanent Split Capacitor | 1 | 48 | 1 | 1/8 hp | Auto | €329.58 |
