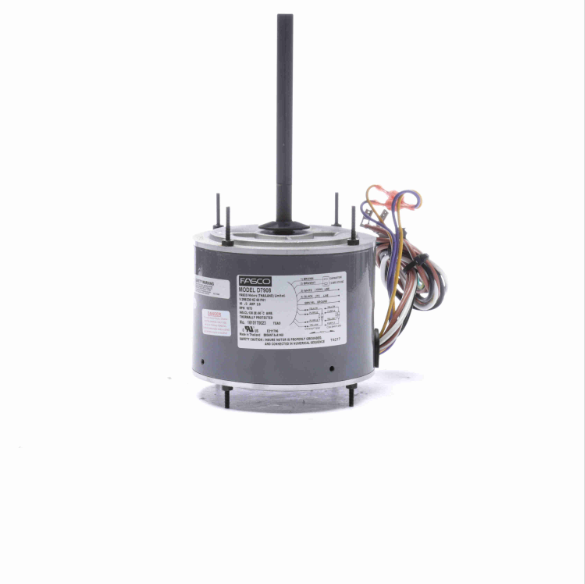

FASCO D7908 Motor1/3Hp 208-230V 1075Rpm Psc
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€208.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | 60°C |
| Ambient Temperature | 60°C |
| Amps | 2.6A |
| Ce | N |
| Csa | Y |
| Current | 2.6A |
| Drive End Bearing | Ball |
| Duty | Continuous |
| Electrical Type | Permanent Split Capacitor |
| Enclosure | Totally Enclosed Air Over |
| Frame | 48 |
| Frame Length | 4.45" |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Includes Capacitor | No |
| Insulation Class | Class B |
| Motor Enclosure Design | TEAO |
| Motor Shaft Rotation | CW/CCW |
| Mounting | Extended Studs |
| Mounting Type | Extended Studs |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Ball |
| Output Hp | 1/3 hp |
| Output Kw | 0.25 kW |
| Permanent Split Capacitor Required | 7.5 µf, 370V |
| Phase | 1 |
| Poles | 6 |
| Rotation | Reversible |
| Rpm | 1075 RPM |
| Service Factor | 1 |
| Shaft Diameter | 0.5" |
| Shaft Extension | 6 1/2" |
| Shaft Extension Size | 6.5" |
| Shaft Type | Double Flat |
| Speed | 1075 RPM |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Ul | Recognized |
| Voltage | 208-230V |
Shipping Info:
| Ship weight (kg) | 6.03 |
| Ship height (cm) | 14.61 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 14.61 |
| Country of Origin | TH |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Phase | Full Load Amps | Nameplate Rpm | Hp | Mounting Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H845 | Dripproof | 200-230/460V AC | 3 | 4.3/9-8.6A | 3450 RPM | 3 hp | Cushion Base | 1.15 | €922.36 | |
 |
BK3074 | - | - | - | - | - | - | - | - | €736.91 | |
 |
RB3154AV1 | Open Dripproof | 208-230/460V AC | 3 | 4.6/2.3A | - | 1 1/2 hp | Resilient Base | 1.15 | €819.92 | |
 |
H852L | Open Dripproof | 200-230/460V AC | 3 | 2/3.7-4A | - | - | Resilient Base | 1.15 | €696.41 | |
 |
RB3204AV1 | Open Dripproof | 208-230/460V AC | 3 | 5.8/2.9A | 1725 RPM | 2 hp | Resilient Base | 1.15 | €822.75 | |
 |
OB3204V1 | - | - | - | - | - | - | - | - | €697.80 | |
 |
H847 | Dripproof | 208-230/460V AC | 3 | 6.6/13.4-13.2A | 3450 RPM | 5 hp | Rigid Base | 1.15 | €1,109.87 |
