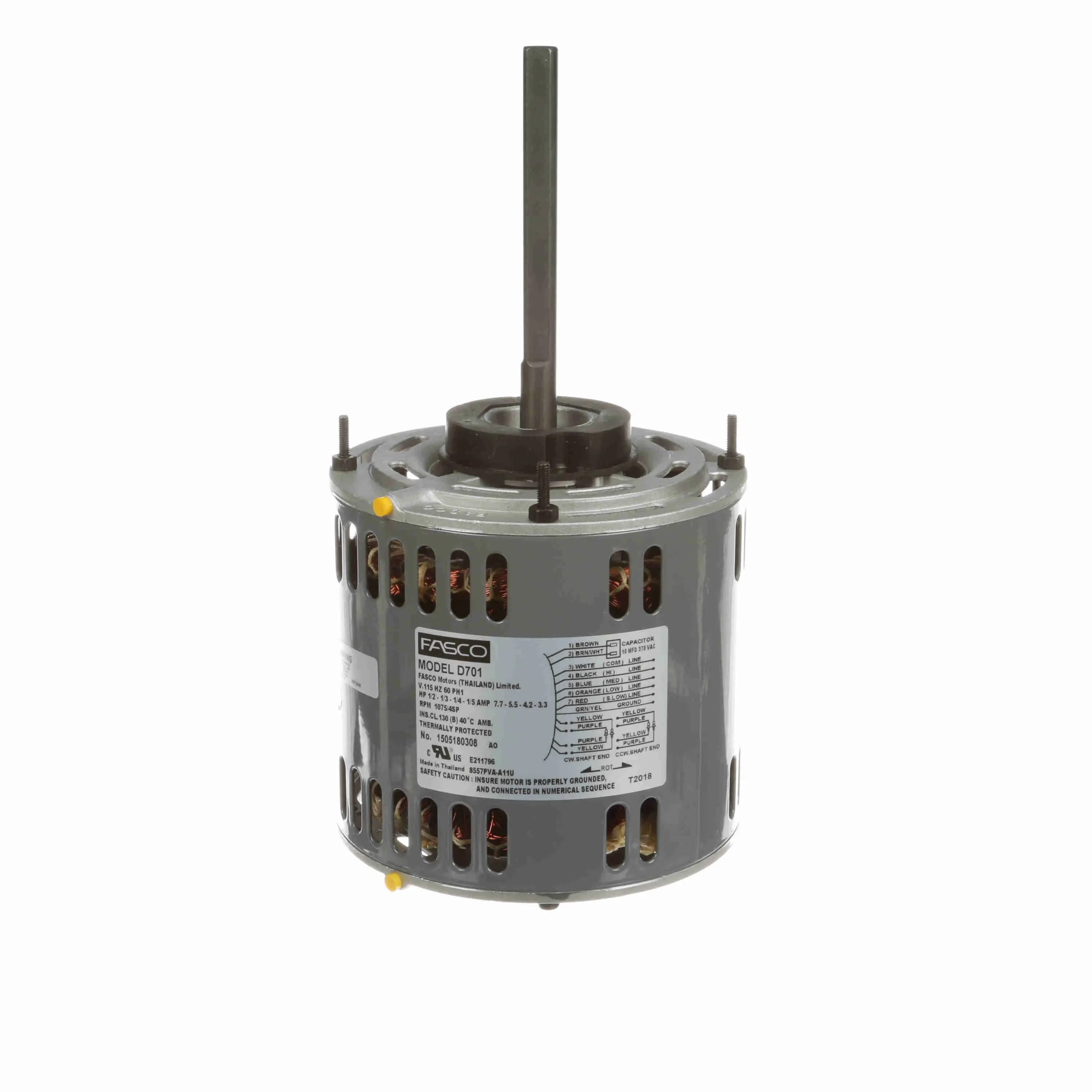

FASCO D701 Fan and Blower Motor, 1/2-1/3-1/4-1/5 HP, 1 Phase, 60 Hz, 115 V, 1075 RPM, 48 Frame
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€292.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 3.3-7.7A |
| Application | Fan |
| Body Diameter | 5.6" |
| Capacitor Required | Yes |
| Drive End Bearing | Sleeve |
| Duty | Continuous |
| Electrical Type | Permanent Split Capacitor |
| Frame | 48 |
| Frame Length | 5.39" |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Current | 3.3/4.2/5.5/7.7A |
| Hp | 1/2 hp, 1/3 hp, 1/4 hp, 1/5 hp |
| Includes Capacitor | No |
| Insulation Class | Class B |
| Length Less Shaft | 5 15/16" |
| Motor Application | Fan |
| Motor Bearings | Sleeve |
| Motor Design | 1 Phase |
| Motor Enclosure Design | OAO |
| Motor Mounting Type | Extended Studs |
| Motor Shaft Rotation | CW/CCW |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1075 RPM |
| No. Of Poles | 6 |
| No. Of Speeds | 4 |
| Number Of Speeds | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/2 hp to 1/5 hp |
| Output Kw | 0.37 kW |
| Overall Length | 11 3/8" |
| Permanent Split Capacitor Required | 10 µf, 370V |
| Phase | 1 |
| Product Type | Motor |
| Rpm | 1075 RPM |
| Rpm Range | 1001-1100 RPM |
| Service Factor | 1 |
| Shaft Diameter | 1/2" |
| Shaft Extension Size | 5.43" |
| Shaft Length | 5 7/16" |
| Shaft Type | Double Flat |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 6.93 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 14.3 |
| Country of Origin | TH |
