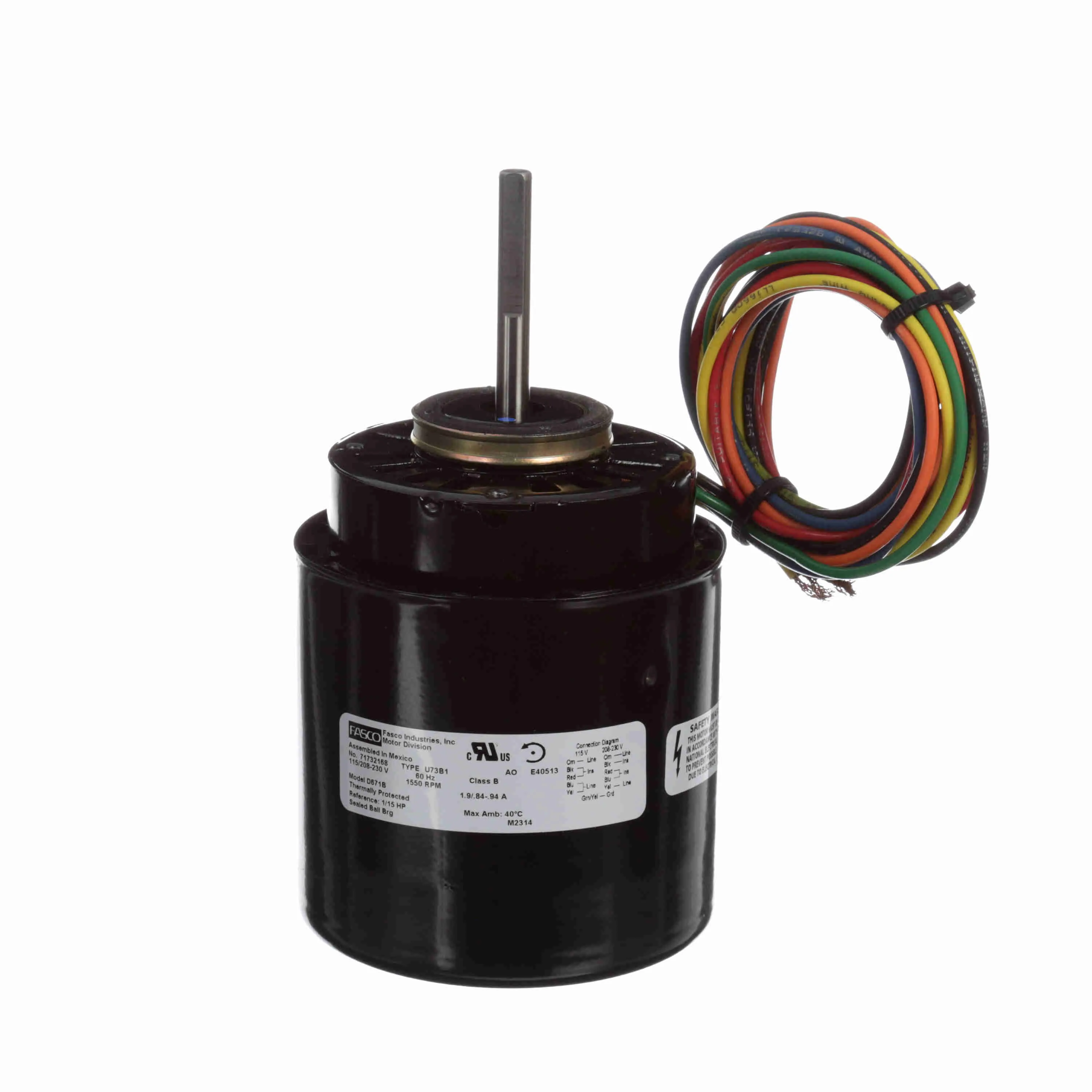

FASCO D671B HVAC Motor OAO 1/15 HP 1550 rpm Face | AH3KPT 32NA58

FASCO D671B Refrigeration Motor, 1/15 HP, 1 Phase, 60 Hz, 115/208-230 V, 1550 RPM, 1 Speed

Item: AH3KPTModel: D671BCross Ref: 32NA58
7 In Stock

Ships within 2 days via

€291.56
10.00% off
€262.41 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Refrigeration Motor
Ambient Temp. 40°C
Amps 1.9/0.84-0.94A
Application HVAC/R
Bearing Type Ball
Body Dia. 3 5/16"
Bolt Circle Dia. 2 7/8"
Capacitor Required No
Conduit Box Position F1
Drive End Bearing Ball
Duty Air Over
Duty Cycle Continuous
Electrical Type Shaded Pole
Frame 3.3
Frame Length 3.07"
Frame Material Steel
Frequency 60 Hz
Full Load Amps 1.9/0.84-0.94A
Hp 1/15 hp
Hz 60 Hz
Ins. Class Class B
Insulation Class Class B
Lead Length 35"
Length 7.48"
Length Less Shaft 4 15/16"
Max. Ambient Temp. 40°C
Motor Application HVAC/R
Motor Bearings Ball
Motor Design Shaded Pole
Motor Enclosure Design OAO
Motor Frame Material Steel
Motor Mounting Type Face
Motor Mounting Type Ring
Motor Service Factor 1
Motor Shaft Design Flat
Motor Shaft Rotation CCWSE
Motor Shaft Rotation Counter Clockwise Shaft End
Motor Sub Application Refrigerator/Freezer
Motor Thermal Protection Auto
Motor Type Shaded Pole
Mounting Holes (4) #8-32
Mounting Pattern 2-27-32" x 90 Degrees
Mounting Stud Pattern 2 27/32" x 90°
Mounting Stud Pattern Angle 90°
Mounting Type Resilient Rings
Nameplate Rpm 1550 RPM
No. Of Poles 4
No. Of Shafts 1
No. Of Speeds 1
Opp Drive End Bearing Ball
Output Hp 1/15 hp
Output Kw 0.05 kW
Overall Length 7 1/2"
Phase 1
Rpm 1550 RPM
Service Factor 1
Shaft Dia. 0.312"
Shaft Extension Size 2.55"
Shaft Length 2 1/2"
Shaft Type Flat
Standards Ul Recognized
Starting Method Across The Line
Stud Pattern 2 27/32" x 90°
Stud Size #8-32
Thermal Protection Automatic
Usable @ 200v No
Usable @ 208v Yes
Voltage 115/208-230V
Weight 6 lbs.

Shipping Info:

Ship weight (kg) 2.58
Ship height (cm)10.01
Ship length (cm)20.32
Ship width (cm)10.01
Country of OriginMX

Product Details:

Fasco D671B HVAC motor starts up ventilation systems smoothly. It is useful in construction and mining sites where HVAC equipment needs frequent On / Off.

Features:

  • Fasco D671B HVAC motor has a steel frame for structural rigidity in rigorous environments.
  • It features Class B insulation that protects the motor from heat.
  • This motor has a shaded pole design that lowers its power consumption.
  • It has four mounting holes for easy installation on a wall or floor.

Frequently Asked Questions:

Q. How can I tell if my HVAC motor is malfunctioning?

A. Signs of a malfunctioning HVAC motor include unusual noises, poor airflow, inconsistent temperature control or a complete lack of heating or cooling.

Q. What maintenance tasks should I perform to ensure the longevity of my HVAC motor?

A. Regular maintenance tasks for HVAC motors include cleaning the motor and surrounding components, lubricating bearings and checking for signs of wear or damage.
