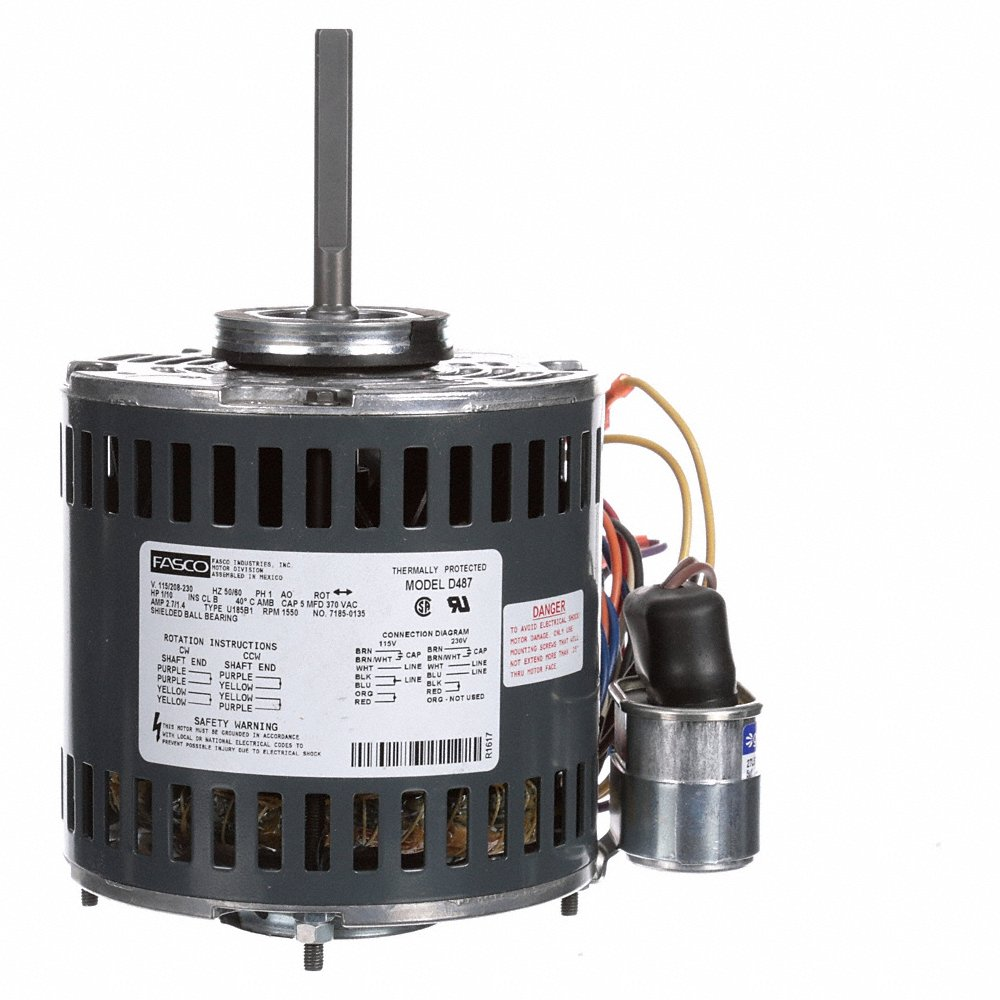

FASCO D487 Refrigeration Motor, 1/10 HP, 1 Phase, 60 Hz, 115/208-230 V, 1550 RPM, 1 Speed, 42 Frame
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€508.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Refrigeration Motor |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 2.7/1.4A |
| Ce | N |
| Csa | Y |
| Current | 2.7/1.4A |
| Drive End Bearing | Sleeve |
| Duty | Continuous |
| Electrical Type | Permanent Split Capacitor |
| Enclosure | Open Air Over |
| Frame | 42 |
| Frame Length | 4.38" |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Includes Capacitor | Yes |
| Insulation Class | Class B |
| Length | 8.49" |
| Motor Enclosure Design | OAO |
| Motor Shaft Rotation | CW/CCW |
| Mounting | Resilient Rings |
| Mounting Type | Resilient Rings |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/10 hp |
| Output Kw | 0.07 kW |
| Overall Length | 8.49" |
| Permanent Split Capacitor Required | 5 µf, 370V |
| Phase | 1 |
| Poles | 4 |
| Rotation | Reversible |
| Rpm | 1550 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.375" |
| Shaft Diameter | 0.375" |
| Shaft Extension | 3.15" |
| Shaft Extension Size | 3.15" |
| Shaft Type | Flat |
| Speed | 1550 RPM |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Ul | Recognized |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 4.08 |
| Ship height (cm) | 17.53 |
| Ship length (cm) | 26.42 |
| Ship width (cm) | 14.22 |
| Country of Origin | MX |
