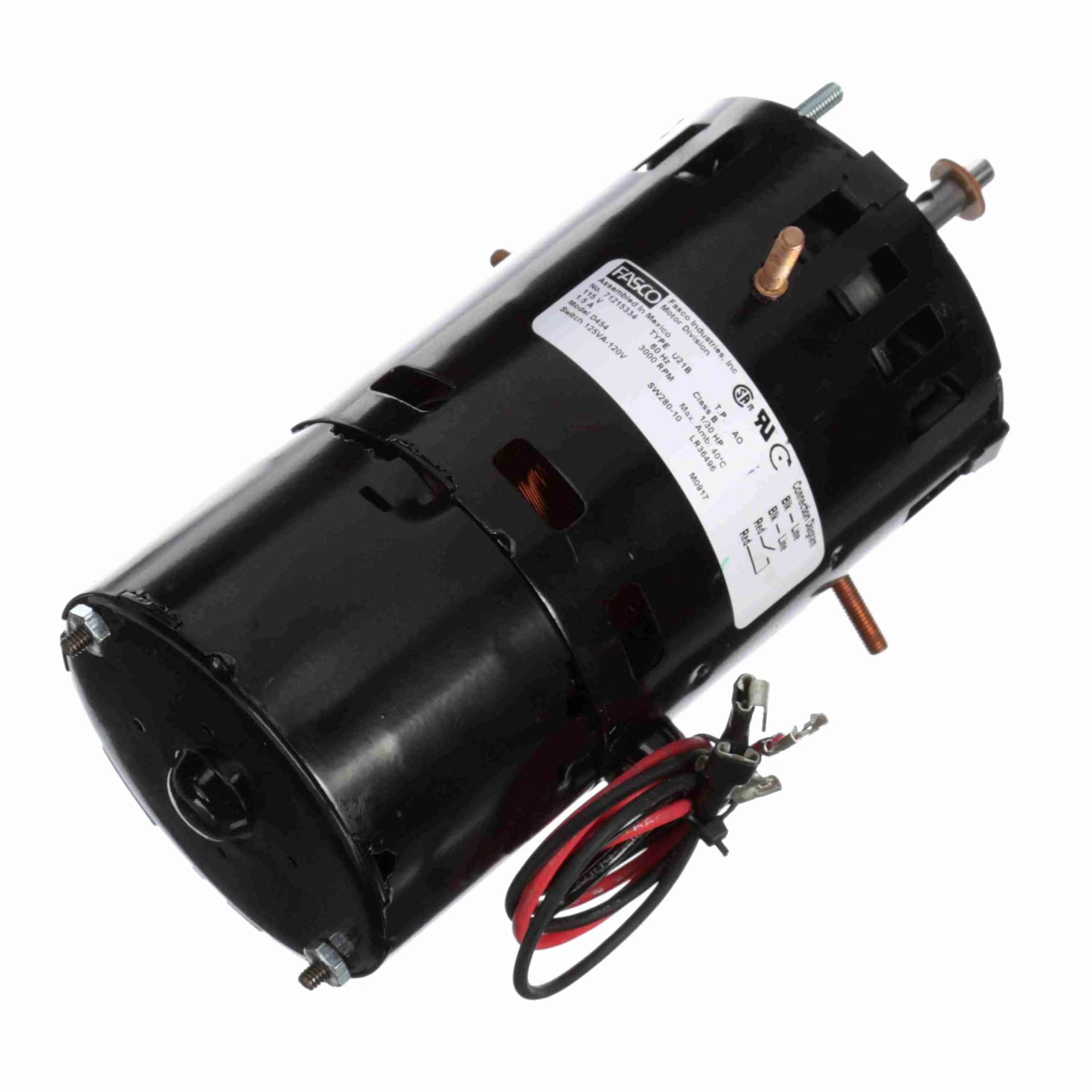

FASCO D454 Draft Inducer Motor, 1/30 HP, 1 Phase, 60 Hz, 115 V, 3000 RPM, 1 Speed, 3.3 Inch Diameter
Item: CH9XBEModel: D454Cross Ref: 48GN96
7 In Stock
Ships within 2 days via
10.00% off
€230.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Motor |
| Ambient Temp. | 40°C |
| Amps | 1.5A |
| Bearing Type | Sleeve |
| Body Dia. | 3.4" |
| Bolt Circle Dia. | 2 13/16" |
| Capacitor Required | No |
| Dia. | 3 2/5" |
| Diameter | 3 2/5" |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Efficiency | 25% |
| Electrical Type | Shaded Pole |
| Enclosure Type | Open Air Over |
| Frame | 3.3 |
| Frame Length | 4.01" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.5A |
| Hp | 1/30 hp |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Length | 7.94" |
| Length Less Shaft | 6 5/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | OEM Replacement |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CWSE |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Shaded Pole |
| Mounting Stud Length | 1/3" |
| Mounting Stud Size | #10-32 |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 3000 RPM |
| Nema/iec Frame | 3.3" |
| No. Of Poles | 2 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Oem Replacement Brand | Mid Continent |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/30 hp |
| Output Kw | 0.02 kW |
| Overall Length | 7 15/16" |
| Phase | 1 |
| Replacement For | JA1M069NV |
| Rpm | 3000 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Extension Size | 1.5" |
| Shaft Length | 1 1/2" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Length | 1/2" |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
| Weight | 4 lbs. |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 10.8 |
| Country of Origin | MX |
