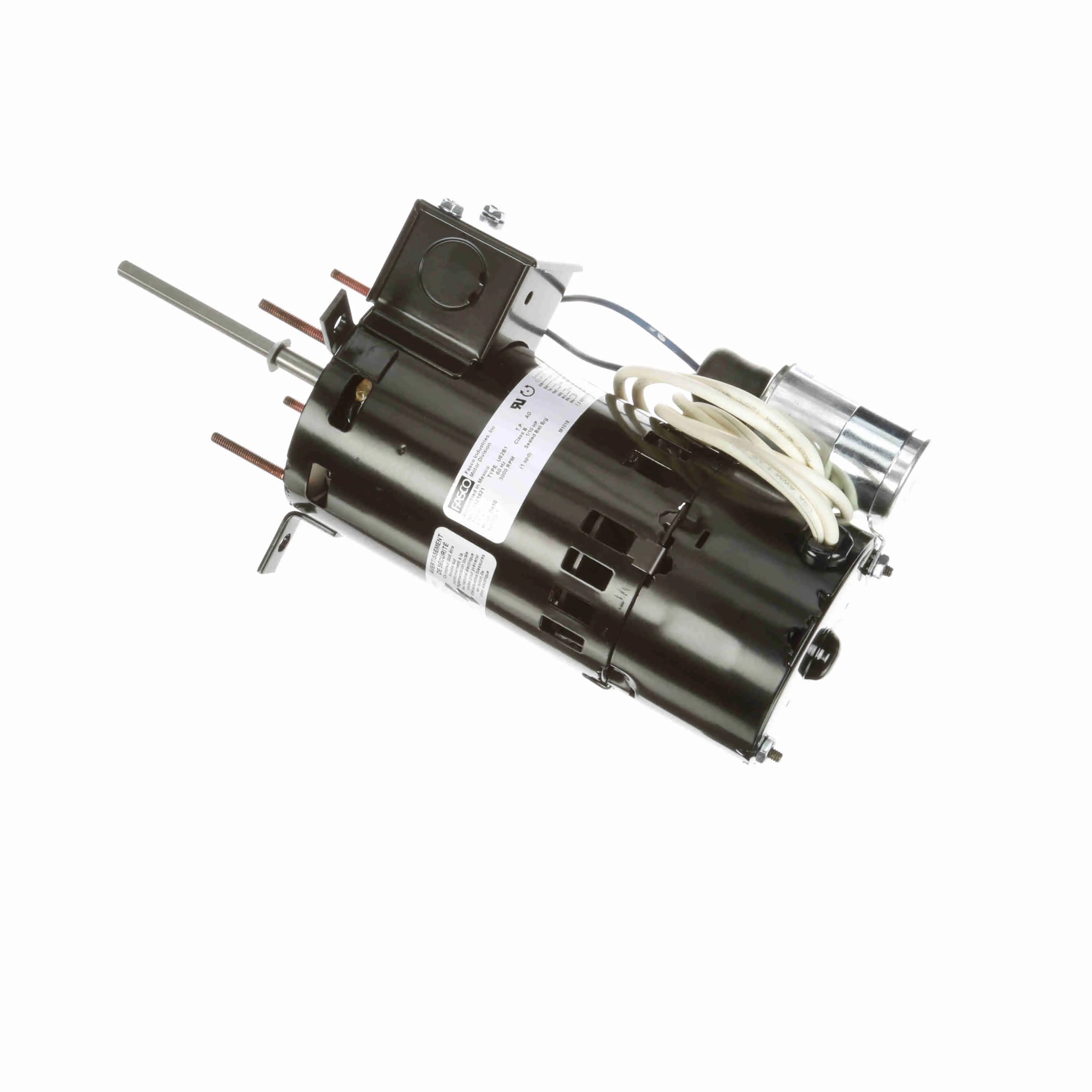

FASCO D410 Draft Inducer Motor, 1/10 HP, 1 Phase, 60 Hz, 115 V, 3000 RPM, 1 Speed, 3.3 Inch Diameter
Item: CJ2WCMModel: D410Cross Ref: 161M26
7 In Stock
Ships within 2 days via
10.00% off
€751.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Motor |
| Ambient Temp. | 40°C |
| Amps | 1.5A |
| Body Diameter | 3.3" |
| Capacitor Required | Yes |
| Drive End Bearing | Ball |
| Duty | Air Over |
| Electrical Type | Permanent Split Capacitor |
| Fits Brand | Fasco |
| Frame | 3.3 |
| Frame Length | 4.8" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Current | 1.5A |
| Horsepower | 1/10 Hp |
| Hp | 1/10 hp |
| Includes Capacitor | Yes |
| Insulation Class | Class B |
| Length | 10.92" |
| Length Less Shaft | 7 1/8" |
| Motor Bearings | Ball |
| Motor Design | 1 Phase |
| Motor Enclosure Design | OAO |
| Motor Mounting Type | Extended Studs |
| Motor Shaft Rotation | CW/CCW |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 3000 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Ball |
| Output Hp | 1/10 hp |
| Output Kw | 0.07 kW |
| Overall Length | 10 15/16" |
| Permanent Split Capacitor Required | 7.5 µf, 370V |
| Phase | 1 |
| Product Type | Motor |
| Rpm | 3000 RPM |
| Rpm Range | 1801-3000 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Diameter | 1/4" |
| Shaft Extension Size | 3.8" |
| Shaft Length | 3 13/16" |
| Shaft Type | Flat |
| Standards | Ul Recognized |
| Starting Method | Across The Line |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 2.79 |
| Ship height (cm) | 11.58 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 13.97 |
| Country of Origin | MX |
