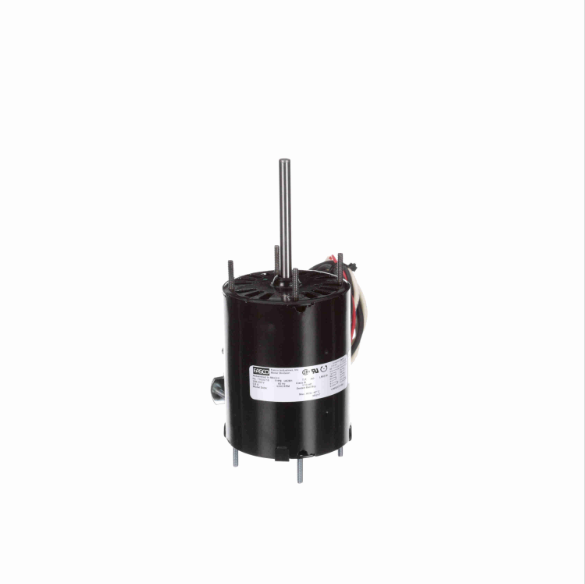

FASCO D404 Hvac Motor 1/10 Hp 3200 Rpm 208-230v 3.3 | AC7LUP 38N558

FASCO D404 Hvac Motor 1/10 Hp 3200 Rpm 208-230v 3.3

Item: AC7LUPModel: D404Cross Ref: 38N558
7 In Stock

Ships within 2 days via

€633.08
10.00% off
€569.76 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item HVAC Motor
Ambient Temp. 40°C
Amps 0.8A
Application HVAC/R
Bearing Type Ball
Body Dia. 3 5/16"
Bolt Circle Dia. 2 7/8"
Capacitor Required Included
Conduit Box Position F1
Drive End Bearing Ball
Duty Air Over
Duty Cycle Continuous
Electrical Type Permanent Split Capacitor
Frame 3.3
Frame Length 4.01"
Frame Material Steel
Frequency 60 Hz
Full Load Amps 0.8A
Hp 1/10 hp
Hz 60 Hz
Includes 4 MFD 370V AC Capacitor
Includes Capacitor Yes
Ins. Class Class B
Insulation Class Class B
Lead Length 36"
Length 7.8"
Length Less Shaft 4 3/4"
Max. Ambient Temp. 40°C
Motor Application HVAC/R
Motor Bearings Ball
Motor Design Permanent Split Capacitor
Motor Enclosure Design OAO
Motor Frame Material Steel
Motor Mounting Type Ring, Stud
Motor Mounting Type Extended Studs
Motor Service Factor 1
Motor Shaft Design Flat
Motor Shaft Rotation CW/CCW
Motor Sub Application Oem Replacement
Motor Thermal Protection Auto
Motor Type Permanent Split Capacitor
Mounting Stud
Mounting Holes (8) #8-32
Mounting Pattern 2-7/8 x 2-7/8
Mounting Stud Location 4/Both Ends
Mounting Stud Pattern 2 7/8" x 2 7/8"
Mounting Type Extended Studs
Nameplate Rpm 3200 RPM
No. Of Poles 2
No. Of Shafts 1
No. Of Speeds 1
No. Of Studs 4
Opp Drive End Bearing Ball
Output Hp 1/10 hp
Output Kw 0.07 kW
Overall Length 7 13/16"
Permanent Split Capacitor Required 4 µf, 370V
Phase 1
Rpm 3200 RPM
Service Factor 1
Shaft Dia. 0.312"
Shaft Extension Size 3.25"
Shaft Length 3 1/4"
Shaft Type Flat
Starting Method Across The Line
Stud Location Both Ends
Stud Pattern 2 7/8" x 2 7/8"
Stud Size #8-32
Stud/base Mtg. Pattern 2-7/8 x 2-7/8"
Thermal Protection Automatic
Usable @ 200v No
Usable @ 208v Yes
Voltage 208-230V

Shipping Info:

Ship weight (kg) 2.07
Ship height (cm)8.41
Ship length (cm)30.48
Ship width (cm)13.03
HS code8501402040
Country of OriginMX

Product Variants

ProductModelMotor Enclosure DesignVoltageHpFull Load AmpsMounting TypeMotor TypeNameplate RpmThermal ProtectionPrice
FASCO D129 Hvac Motor 1/125-1/200 Hp 115v Ccwith Le | AC7LTF 38N527 D129OAO115V1/125 hp, 1/200 hp0.5/0.3AExtended StudsShaded Pole1500 RPMImpedance€291.84
FASCO D1162 Hvac Motor 1/100-1/250 Hp 115v Cw / Ccw | AC7LTG 38N528 D1162OAO115V1/100 hp, 1/250 hp0.6/0.4ARound Belly BandShaded Pole1540/1390 RPMAutomatic€316.12
FASCO D1119 Hvac 3.3 Inch Motor 1/90 Hp 240v Ccw | AC7LTJ 38N530 D1119OAO240V1/90 hp0.4AExtended StudsShaded Pole1300 RPMAutomatic€170.49
FASCO D1134 Motor 1/50-1/65-1/80 Hp 120v Cw | AC7LTM 38N533 D1134OAO120V1/50 hp, 1/65 hp, 1/30 hp1.1/0.8/0.6AExtended StudsShaded Pole1300 RPMAutomatic€209.23
FASCO D1139 Hvac Motor 1/50 Hp 1550 Rpm 115v 3.3 | AC7LTN 38N534 D1139TEAO115V1/50 hp0.9AExtended StudsShaded Pole1550 RPMAutomatic€232.36
FASCO D128 Hvac Motor 1/40-1/50-1/80 Hp 115v Ccwith Le | AC7LTR 38N537 D128OAO115V1/40 hp, 1/50 hp, 1/80 hp1.3/0.9/0.7AExtended StudsShaded Pole1500 RPMAutomatic€225.55
FASCO D136 Hvac Motor 1/30 Hp 1500 Rpm 115v 3.3 | AC7LTU 38N539 D136OAO115V1/30 hp1.3AExtended StudsShaded Pole1500 RPMAutomatic€290.95
