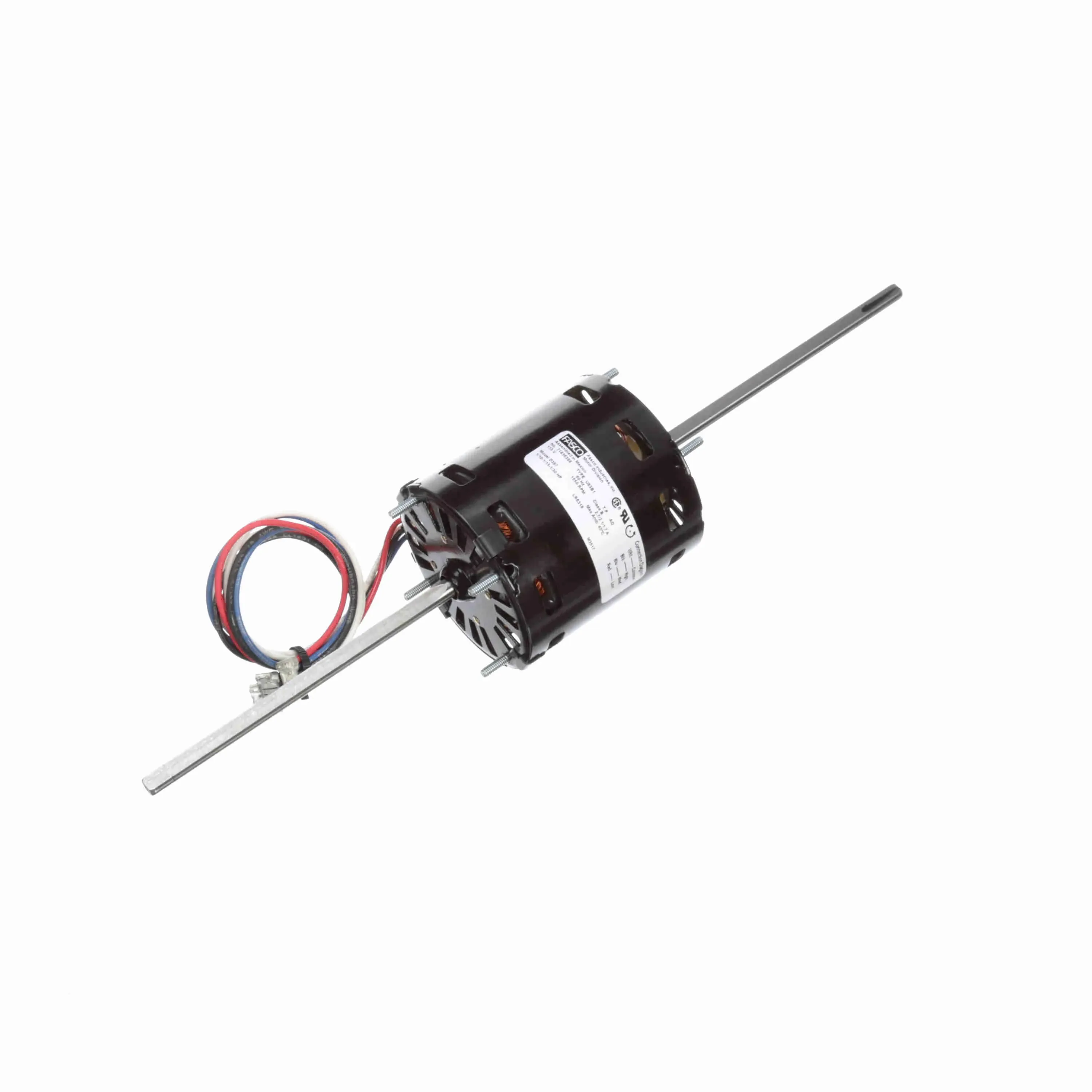

FASCO D367 Fan Coil And Air Conditioner Motor, 1/10 - 1/15 - 1/30 HP, 1 Phase, 60 Hz, 115 V, 1550 RPM
Item: CP4XMPModel: D367Cross Ref: 241X89
7 In Stock
Ships within 2 days via
10.00% off
€230.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Conditioner Motor |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 1.7-2.7A |
| Ce | N |
| Csa | Y |
| Current | 2.7-1.7A |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Enclosure | Open Air Over |
| Frame | 3.3 |
| Frame Length | 3.4" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Insulation Class | Class B |
| Length | 15.19" |
| Motor Enclosure Design | OAO |
| Motor Shaft Rotation | CW/CCW |
| Mounting | Extended Studs |
| Mounting Type | Extended Studs |
| No. Of Poles | 4 |
| No. Of Speeds | 3 |
| Number Of Speeds | 3 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/10 hp to 1/30 hp |
| Output Kw | 0.07 kW |
| Overall Length | 15.19" |
| Phase | 1 |
| Poles | 4 |
| Rotation | Reversible |
| Rpm | 1550 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Diameter | 0.313" |
| Shaft Extension | 5.75" |
| Shaft Extension Size | 5.75" |
| Shaft Type | Flat |
| Speed | 1550 RPM |
| Starting Method | Across The Line |
| Ul | Recognized |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 8.59 |
| Country of Origin | MX |
