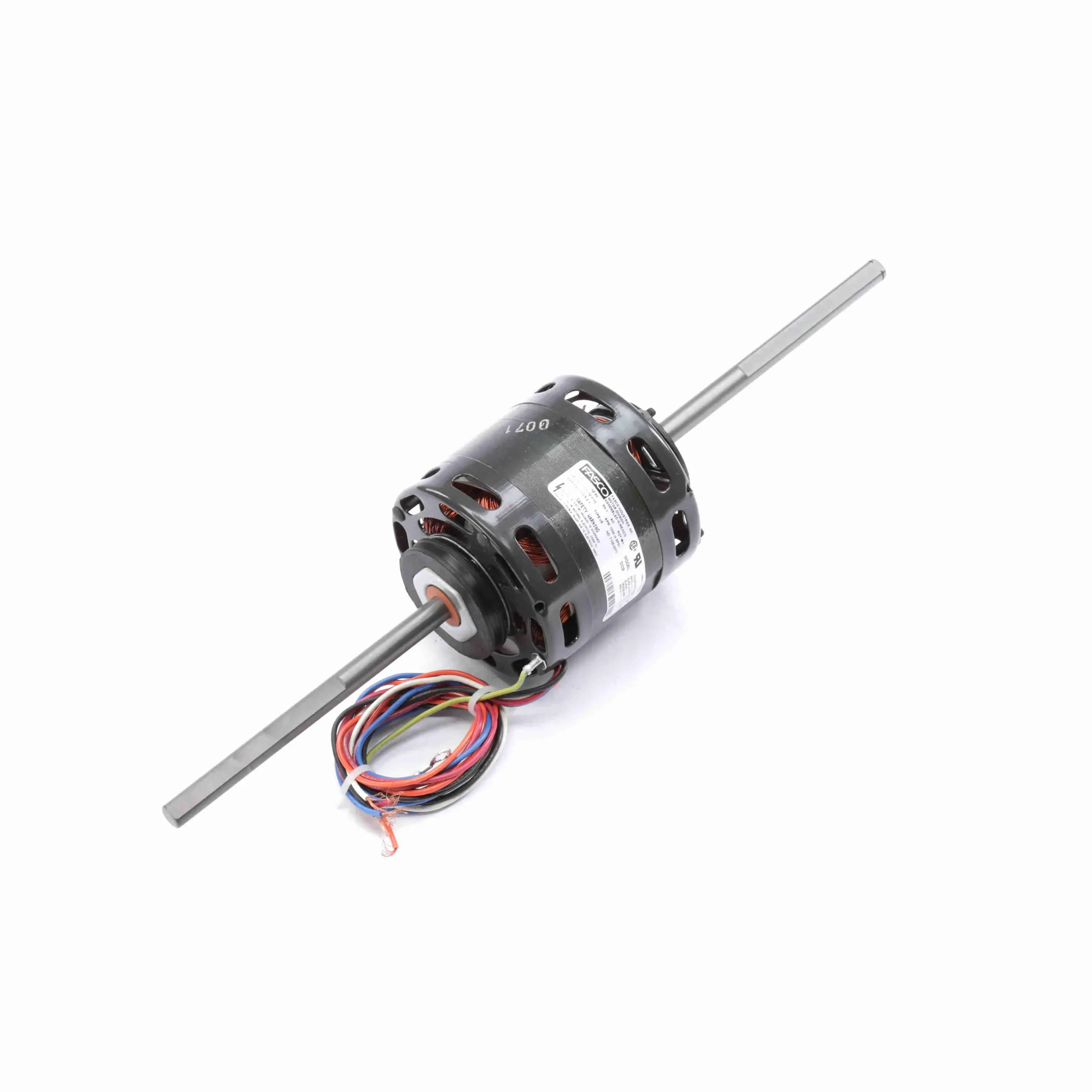

FASCO D338 Fan Coil And Air Conditioner Motor, 1/6-1/10-1/12-1/15 HP, 1 Phase, 60 Hz, 115 V, 1550 RPM
Item: CP4XNGModel: D338Cross Ref: 241X80
7 In Stock
Ships within 2 days via
10.00% off
€309.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Conditioner Motor |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 2.1-5.4A |
| Ce | N |
| Csa | Y |
| Current | 5.4-2.1A |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Enclosure | Open Air Over |
| Frame | 4.4 |
| Frequency | 60 Hz |
| Insulation Class | Class A |
| Length | 18.63" |
| Motor Enclosure Design | OAO |
| Motor Shaft Rotation | CW/CCW |
| Mounting | Resilient Rings |
| Mounting Type | Resilient Rings |
| No. Of Poles | 4 |
| No. Of Speeds | 4 |
| Number Of Speeds | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/6 hp to 1/15 hp |
| Output Kw | 0.13 kW |
| Overall Length | 18.63" |
| Phase | 1 |
| Poles | 4 |
| Rotation | Reversible |
| Rpm | 1550 RPM |
| Service Factor | 1 |
| Shaft Diameter | 0.5" |
| Shaft Extension | 7 1/4" |
| Shaft Extension Size | 7.25" |
| Shaft Type | Flat |
| Speed | 1550 RPM |
| Starting Method | Across The Line |
| Ul | Recognized |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 11.13 |
| Country of Origin | MX |
