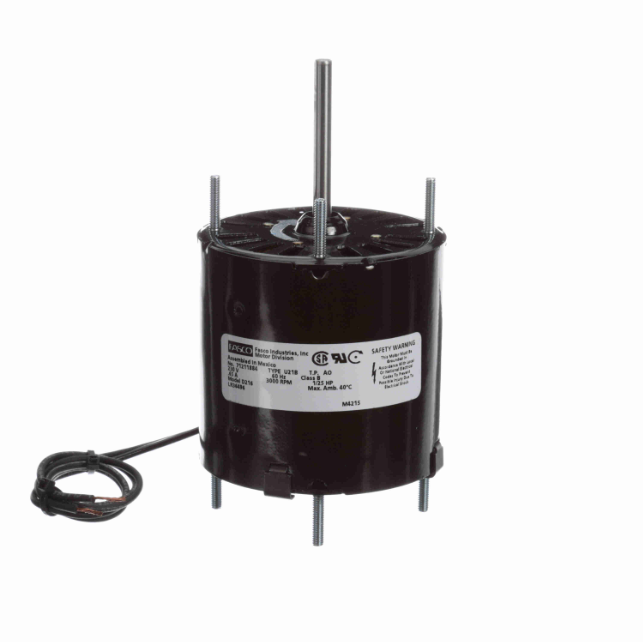

FASCO D216 Hvac Motor 1/25 Hp 3000 Rpm 230v 3.3
Item: AC7LUDModel: D216Cross Ref: 38N548
7 In Stock
Ships within 2 days via
10.00% off
€219.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Amps | 0.65A |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Capacitor Required | No |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 3.01" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 0.65A |
| Hp | 1/25 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 12" |
| Length | 5.81" |
| Length Less Shaft | 3 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Extended Studs |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CWSE |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Stud |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Mounting Stud Location | 4/Both Ends |
| Mounting Stud Pattern | 2 7/8" x 2 7/8" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 3000 RPM |
| No. Of Poles | 2 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/25 hp |
| Output Kw | 0.03 kW |
| Overall Length | 5 13/16" |
| Phase | 1 |
| Rpm | 3000 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Extension Size | 2.3" |
| Shaft Length | 2 1/4" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Location | Both Ends |
| Stud Pattern | 2 7/8" x 2 7/8" |
| Stud/base Mtg. Pattern | 2-7/8 x 2-7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V |
| Weight | 3 lbs. |
Shipping Info:
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 8.59 |
| HS code | 8501106020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Shaft Rotation | Motor Application | No. Of Speeds | Frame | Mounting Type | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D129 | 115V | 1/125 hp, 1/200 hp | CWSE | HVAC/R | 2 | 3.3 | Extended Studs | OAO | €291.84 | |
 |
D1162 | 115V | 1/100 hp, 1/250 hp | CW/CCW | HVAC/R | 1 | 3.3 | Round Belly Band | OAO | €316.12 | |
 |
D1119 | 240V | 1/90 hp | CCWSE | HVAC/R | 1 | 3.3 | Extended Studs | OAO | €170.49 | |
|
D1134 | 120V | 1/50 hp, 1/65 hp, 1/30 hp | CWSE | HVAC/R | 3 | 3.3 | Extended Studs | OAO | €209.23 | |
 |
D1139 | 115V | 1/50 hp | CWSE | HVAC/R | 3 | 3.3 | Extended Studs | TEAO | €232.36 | |
 |
D128 | 115V | 1/40 hp, 1/50 hp, 1/80 hp | CWLE | HVAC/R | 3 | 3.3 | Extended Studs | OAO | €225.55 | |
 |
D136 | 115V | 1/30 hp | CWLE | HVAC/R | 1 | 3.3 | Extended Studs | OAO | €290.95 |
