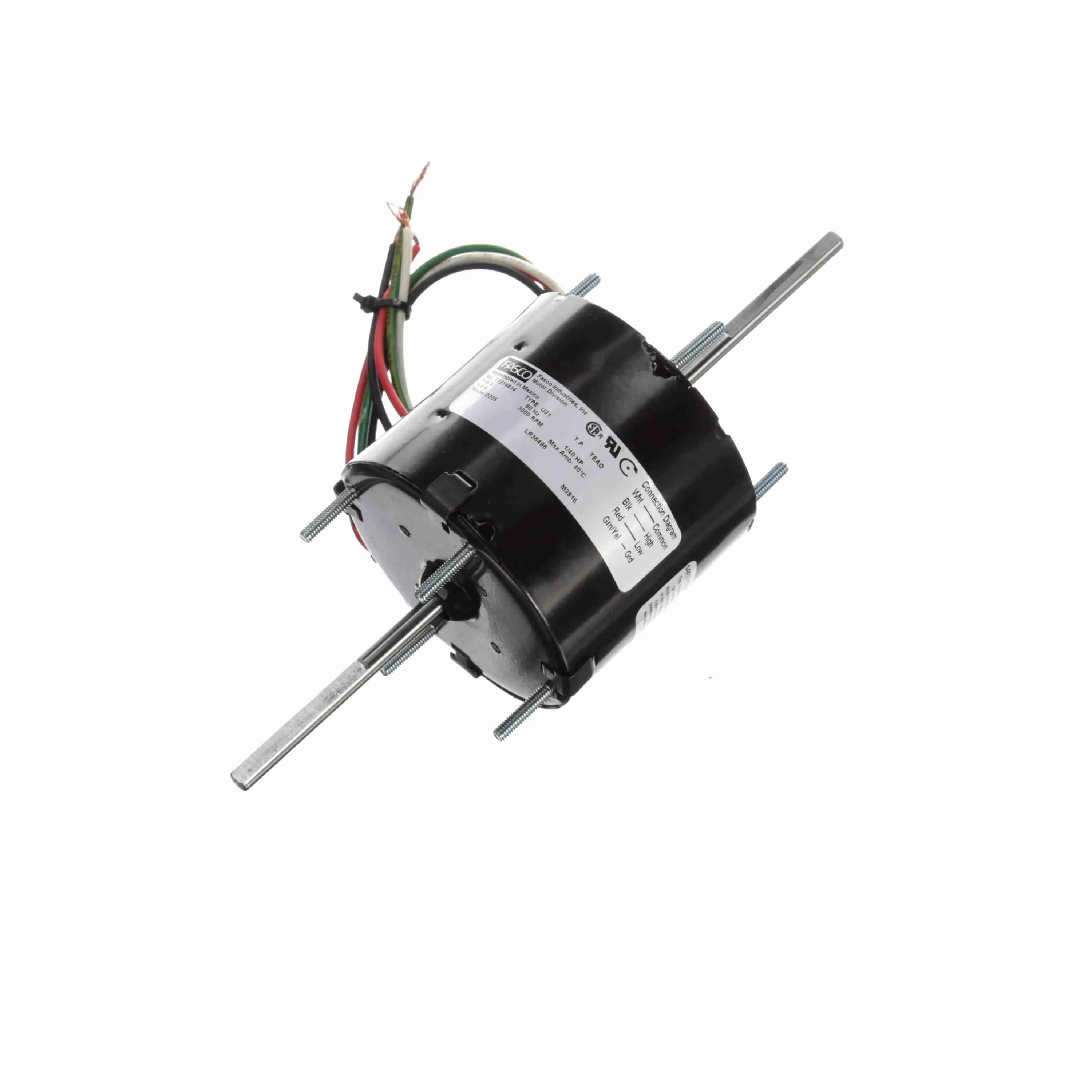

FASCO D205 Fan and Blower Motor, 1/40 HP, 1 Phase, 60 Hz, 115 V, 3000 RPM, 2 Speed, 3.3 Inch Diameter
Item: AC7LVDModel: D205Cross Ref: 38N571
7 In Stock
Ships within 2 days via
10.00% off
€190.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 1A |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Conduit Box Location | Exterior |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 2.92" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5A |
| Hp | 1/40 hp, 1/70 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Length Less Shaft | 7 11/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | TEAO |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Ring, Stud |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Single Special Extension |
| Motor Shaft Rotation | Counter Clockwise Lead End |
| Motor Shaft Rotation | CW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Stud |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Mounting Stud Location | 4/Both Ends |
| Mounting Stud Pattern | 2 7/8" x 2 7/8" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 3000 RPM |
| No. Of Poles | 2 |
| No. Of Shafts | 2 |
| No. Of Speeds | 2 |
| No. Of Studs | 4 |
| Nominal Efficiency | 0.58% |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/40 hp |
| Output Kw | 0.02 kW |
| Overall Length | 9 9/16" |
| Phase | 1 |
| Rpm | 3000 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Extension Size | 3" x 0.25" x 3" |
| Shaft Length | 1 7/8" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Location | Both Ends |
| Stud Pattern | 2 7/8" x 2 7/8" |
| Stud Size | #8-32 |
| Stud/base Mtg. Pattern | 2-7/8 x 2-7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
| Weight | 14 lbs. |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 8.59 |
| HS code | 8501106020 |
| Country of Origin | MX |
