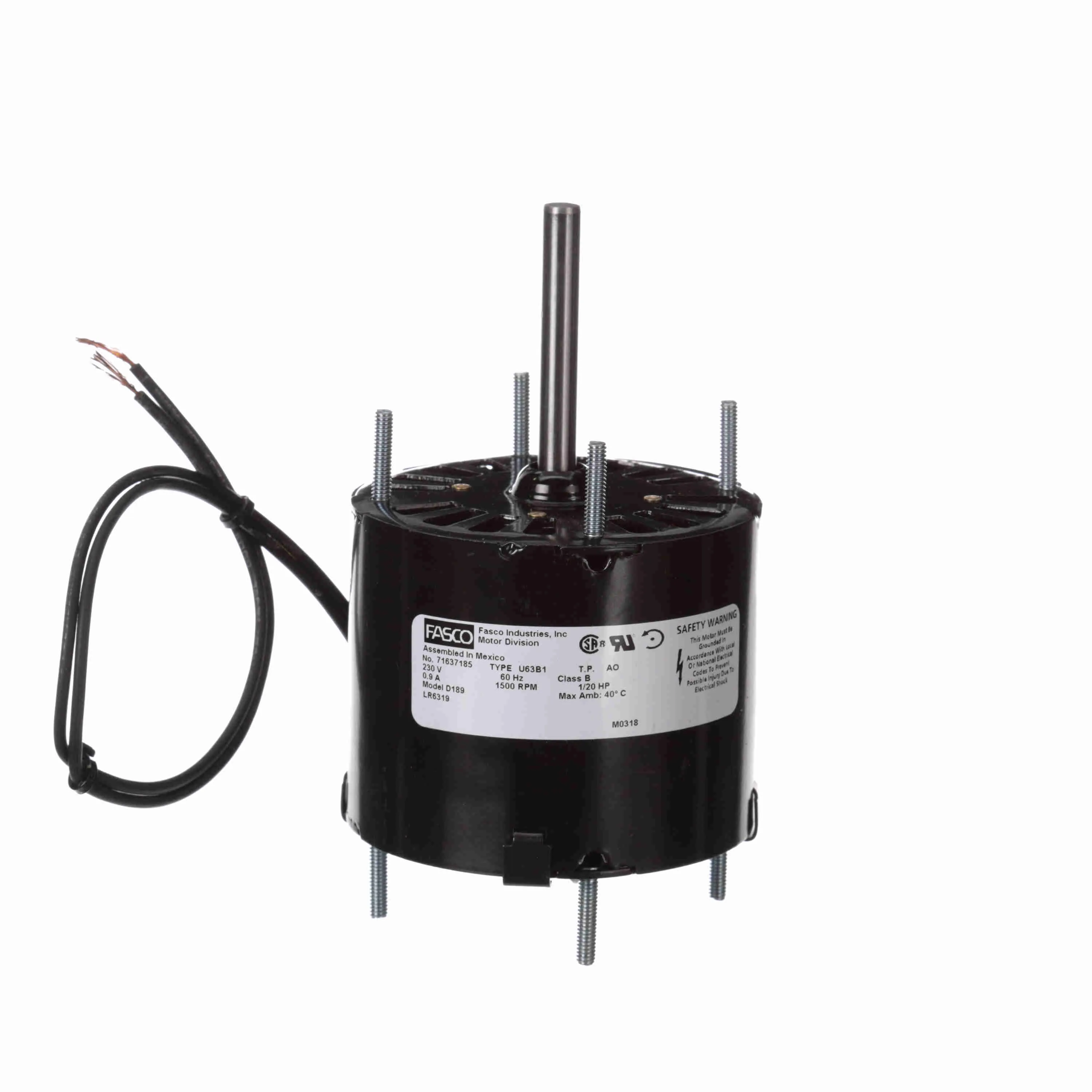

FASCO D189 Fan and Blower Motor, 1/20 HP, 1 Phase, 60 Hz, 230 V, 1500 RPM, 1 Speed, 3.3 Inch Diameter
Item: AC7LUGModel: D189Cross Ref: 38N551
7 In Stock
Ships within 2 days via
10.00% off
€145.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 0.9A |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Capacitor Required | No |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 2.57" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 0.9A |
| Hp | 1/20 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 12" |
| Length | 5.43" |
| Length Less Shaft | 3 5/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Extended Studs |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CCWSE |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Stud |
| Mounting Holes | (8) #8-32 |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Mounting Stud Location | 4/Both Ends |
| Mounting Stud Pattern | 2 7/8" x 2 7/8" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1500 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/20 hp |
| Output Kw | 0.04 kW |
| Overall Length | 5 7/16" |
| Phase | 1 |
| Rpm | 1500 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 2.3" |
| Shaft Length | 2 1/4" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Location | Both Ends |
| Stud Pattern | 2 7/8" x 2 7/8" |
| Stud Size | #8-32 |
| Stud/base Mtg. Pattern | 2-7/8 x 2-7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V |
| Weight | 3 lbs. |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 8.59 |
| HS code | 8501106020 |
| Country of Origin | MX |
Product Details:
Fasco D189 HVAC motor is ideal for maintaining indoor comfort by powering the movement of conditioned air. Its application contributes to effective temperature regulation, ventilation and air quality, ensuring a comfortable and healthy environment. It is used in heating, ventilation, and air conditioning (HVAC) systems to drive fans and blowers, facilitating optimal air circulation and temperature control.
Features:
- It features a steel motor frame, ensuring resilience and longevity in demanding HVAC applications.
- This HVAC motor allows stud mounting for a secure and stability.
- It has motor shaft rotation of counterclockwise shaft end (CCWSE), offering specific rotational characteristics for optimal performance.
- This motor is equipped with automatic motor thermal protection, ensuring safety by preventing overheating during extended operation, contributing to prolonged motor lifespan.
- Its open air-over motor enclosure enhances cooling efficiency for maintaining optimal operating temperatures.
Compatible Accessories:
- Dayton 19L413 Contactor Service Kit: This kit is suitable for maintainenance of Fasco D189 HVAC motor. For assisting field-based HVAC contractors in repairing & maintaining motor capacitors, it includes wire nuts, quick disconnects, resistors, wire jumpers, capacitor boots, contactors and capacitor brackets. The kit includes a carrying case in addition to hard plastic storage boxes.
- Dayton 2MXX9 Propellor: It is used to efficiently move air or other fluids, contributing to the proper operation of the systems.
Frequently Asked Questions:
Q. What type of bearing is used in Fasco D189 HVAC motor?
A. This motor utilises sleeve bearings for smooth, low-friction operation.
Q. How does the flat motor shaft design of this HVAC motor contribute to seamless fitting with fan and blower assemblies?
A. It features a flat motor shaft design that seamlessly fits HVAC fan and blower assemblies, ensuring compatibility and optimal performance.
Q. What is the maximum ambient temperature rating of Fasco D189 HVAC motor?
A. It has a maximum ambient temperature rating of 40 degrees C.
