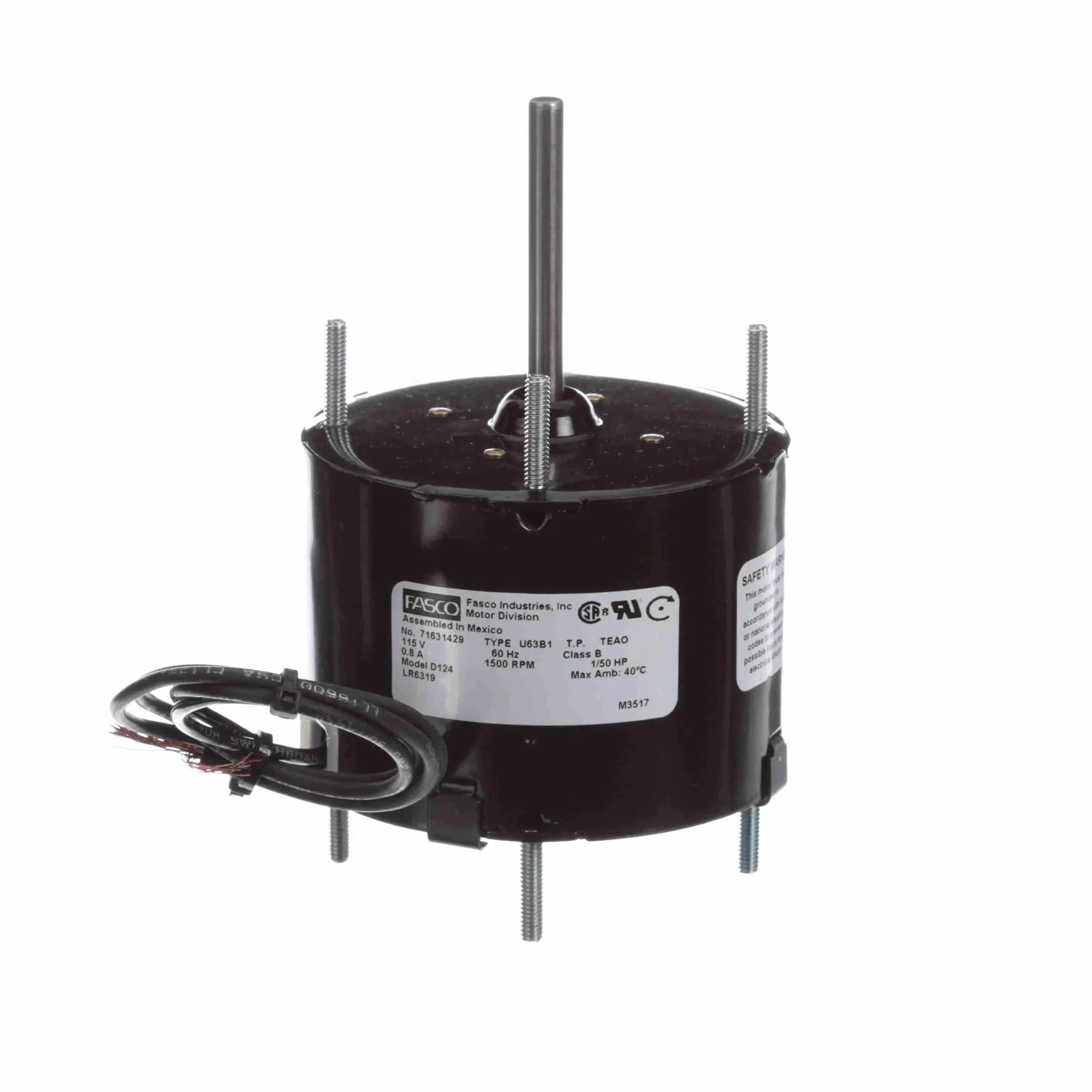

FASCO D124 Fan and Blower Motor, 1/50 HP, 1 Phase, 60 Hz, 115 V, 1500 RPM, 1 Speed, 3.3 Inch Diameter
Ships within 2 days via
Payment
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 0.8A |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Capacitor Required | No |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 2.24" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 0.8A |
| Hp | 1/50 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 12" |
| Length | 5.08" |
| Length Less Shaft | 3" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | TEAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Extended Studs |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Shaft Rotation | CWSE |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Stud |
| Mounting Holes | (8) #8-32 |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Mounting Stud Location | 4/Both Ends |
| Mounting Stud Pattern | 2 7/8" x 2 7/8" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1500 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/50 hp |
| Output Kw | 0.01 kW |
| Overall Length | 5 1/16" |
| Phase | 1 |
| Rpm | 1500 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Extension Size | 2.3" |
| Shaft Length | 2 1/4" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Location | Both Ends |
| Stud Pattern | 2 7/8" x 2 7/8" |
| Stud Size | #8-32 |
| Stud/base Mtg. Pattern | 2-7/8 x 2-7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
| Weight | 3 lbs. |
Shipping Info:
| Ship weight (kg) | 1.31 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 8.59 |
| HS code | 8501104020 |
| Country of Origin | MX |
Product Details:
Fasco D124 HVAC motor supports smooth and easy startup of ventilation equipment. It is useful in manufacturing plants, warehouses and commercial workspaces to lower ambient temperatures quietly.
Features:
- Fasco D124 HVAC motor has a TEAO enclosure that does not allow air to pass through, making it dustproof.
- It is simple to install due to its inherent stud mounting capability.
- This single-phase HVAC motor has a shaded pole design that lowers its power ratings.
- It incorporates Class B insulation for thermal protection.
Compatible Accessories:
- Fasco 87256010 Lug Mounting Bracket: This bracket accepts Fasco motor studs, allowing the motor to be wall or floor-mounted.
Frequently Asked Questions:
Q. How can I maintain Fasco D124 HVAC motor?
A. Regular maintenance, such as cleaning, lubrication and checking for loose connections, can help prolong the lifespan of HVAC motors.
Q. What is the role of Fasco HVAC motors in indoor air quality?
A. HVAC motors play a critical role in maintaining indoor air quality by ensuring proper ventilation, filtering out pollutants, and preventing the buildup of stale air, which is important for health and comfort.
Q. What is a shaded pole induction motor?
A. The shaded pole induction motor is a single-phase self-starting induction motor with one pole shaded by a copper ring. The shaded ring is another name for the copper ring. This copper ring serves as the motor's secondary winding. The shaded pole motor can only revolve in one direction, and there is no way to reverse the motor.
Q. What is a TEAO enclosure?
A. TEAO stands for 'Totally Enclosed, Air Over.' In a TEAO enclosure, the motor itself is completely enclosed in a housing that prevents air from outside the motor from entering it. The 'Air Over' part means that these motors are designed to have air flowing over the external surface of the motor for cooling. They are often used in situations where the motor is exposed to the surrounding environment, and it is essential to keep dirt, dust and moisture out.
Learn more about motor enclosures in our detailed electric motor buying guide.
