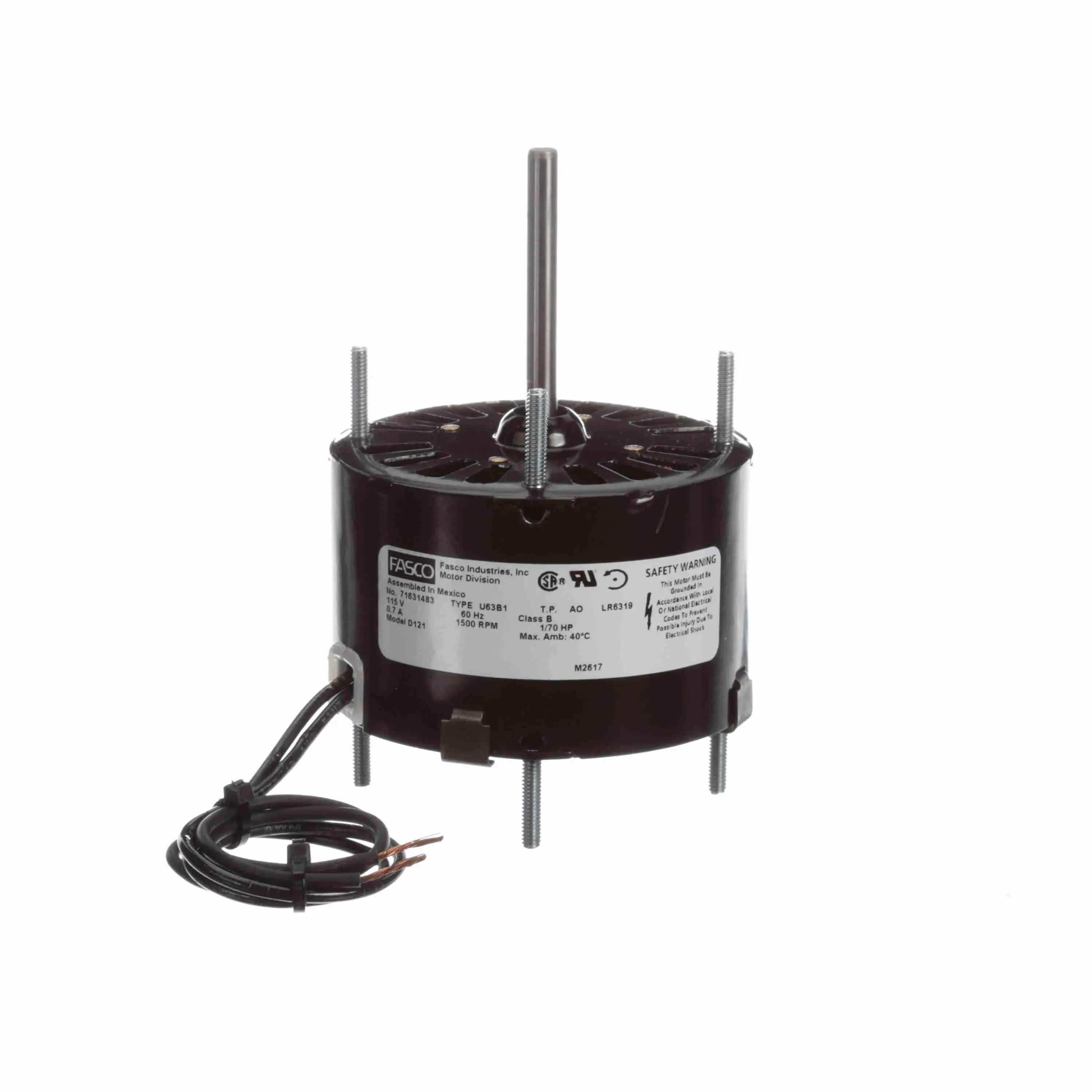

FASCO D121 Fan And Blower Motor, 1/70 HP, 1 Phase, 60 Hz, 115 V, 1500 rpm, 1 Speed, 3.3 Inch Dia
Item: EA2JWFModel: D121
7 In Stock
Ships within 2 days via
€124.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Application | Fan, Blower |
| Duty Cycle | Air Over |
| Electrical Phase | 1 |
| Electrical Type | Shaded Pole |
| Enclosure Type | Open, Drip Proof |
| Frame Length | 1.95" |
| Frame Material | Steel |
| Full Load Amps | 0.7A |
| Length Less Shaft | 2 1/8" |
| Motor Application | OEM Replacement |
| Motor Enclosure Design | Open Air-Over |
| Motor Sub Application | Fan And Blower Motor |
| Motor Thermal Protection | Included |
| Overall Length | 4.78" |
| Pole | 4 |
| Rotation | CW |
| Shaft Dia. | 1/4" |
| Speed | 1401-1500 RPM , 1500 RPM |
| Thermal Protection | Thermally Protected |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 1.17 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 8.59 |
| Country of Origin | MX |
