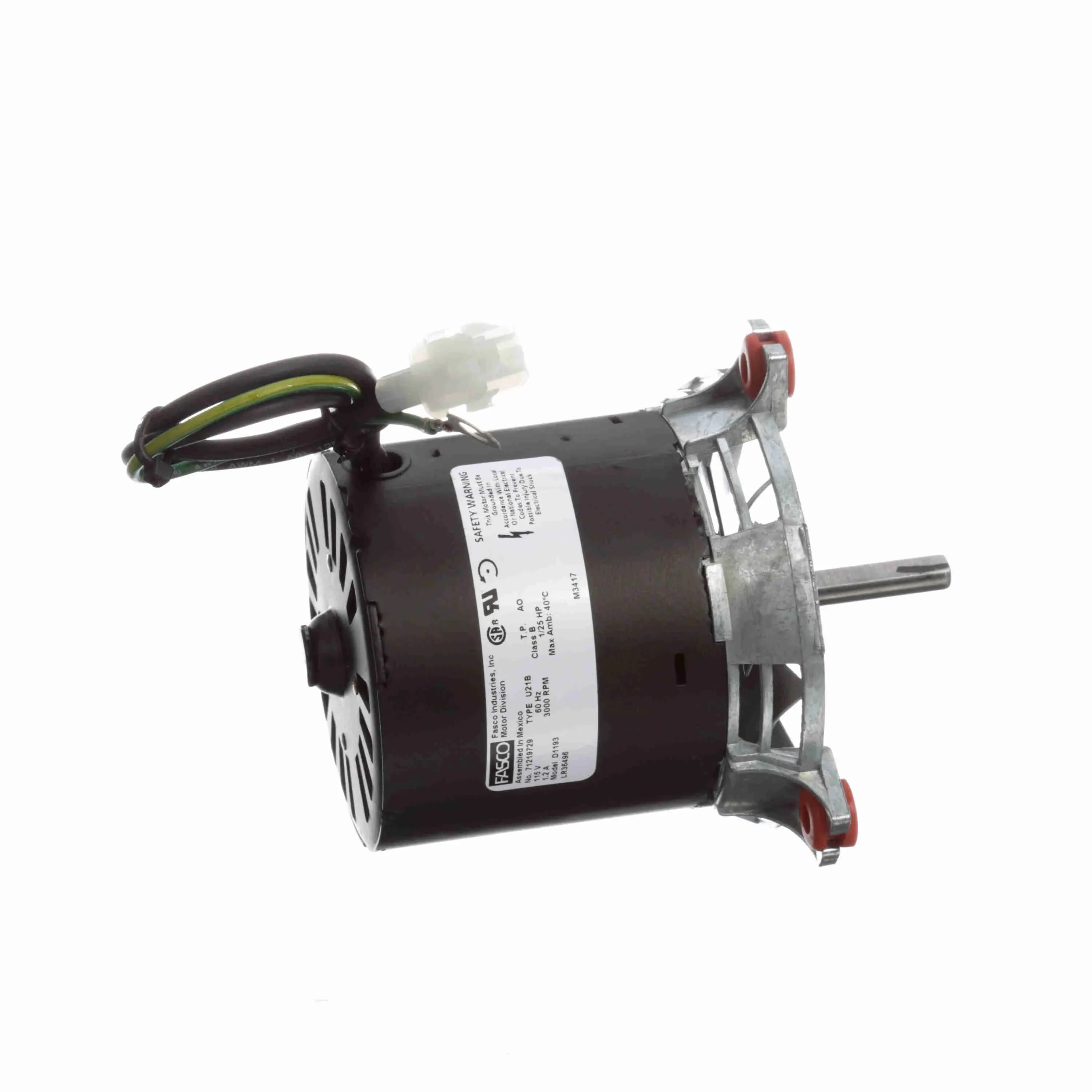

FASCO D1193 Draft Inducer Motor, 1/25 HP, 1 Phase, 60 Hz, 115 V, 3000 RPM, 1 Speed, 3.3 Inch Diameter
Item: CP4XNEModel: D1193Cross Ref: 241X06
7 In Stock
Ships within 2 days via
10.00% off
€466.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Motor |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 1.2A |
| Ce | N |
| Csa | Y |
| Current | 1.2A |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Enclosure | Open Air Over |
| Frame | 3.3 |
| Frame Length | 2.68" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Insulation Class | Class B |
| Length | 5.54" |
| Motor Application | Draft Inducer |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CCWSE |
| Motor Thermal Protection | Included |
| Mounting | Lug |
| Mounting Type | Lug |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/25 hp |
| Output Kw | 0.03 kW |
| Overall Length | 5.54" |
| Phase | 1 |
| Poles | 2 |
| Rotation | Counterclockwise Shaft End |
| Rpm | 3000 RPM |
| Shaft Dia. | 0.313" |
| Shaft Diameter | 0.313" |
| Shaft Extension | 2.32" |
| Shaft Extension Size | 2.32" |
| Shaft Type | Flat |
| Speed | 3000 RPM |
| Starting Method | Across The Line |
| Ul | Recognized |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 13.03 |
| Country of Origin | MX |
