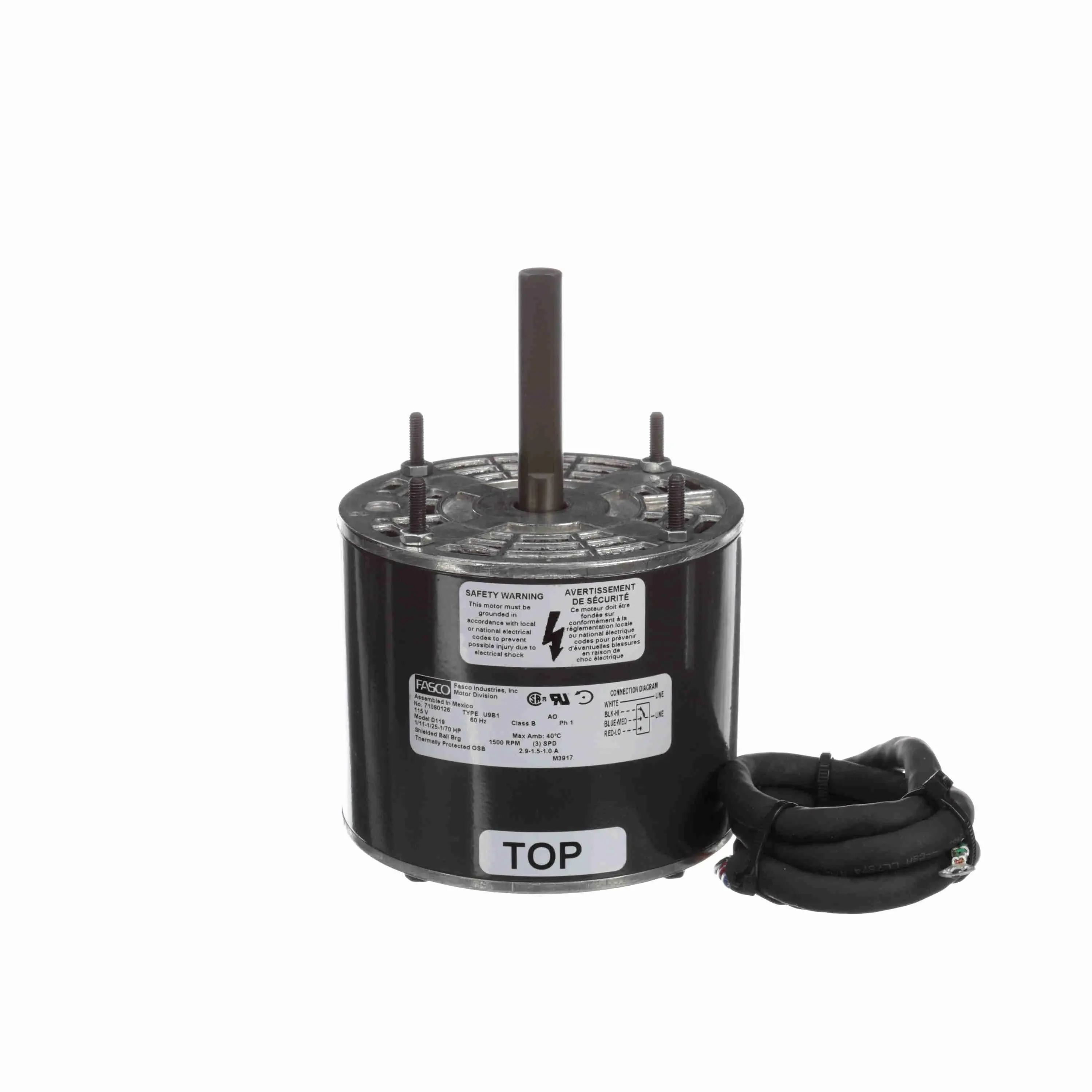

FASCO D119 Fan and Blower Motor, 1/11-1/25-1/70 HP, 1 Phase, 115 V, 1500 RPM, 4.4 Inch Diameter
Item: CH9XBRModel: D119Cross Ref: 48GN77
7 In Stock
Ships within 2 days via
10.00% off
€303.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 1-2.9A |
| Bearing Type | Ball |
| Bolt Circle Dia. | 3 7/8" |
| Capacitor Required | No |
| Dia. | 4 2/5" |
| Diameter | 4 2/5" |
| Drive End Bearing | Ball |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Enclosure Type | Open Air Over |
| Frame | 4.4 |
| Frame Length | 3.38" |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.9/1.5/1A |
| Hp | 1/70 hp, 1/11 hp, 1/25 hp |
| Insulation Class | Class B |
| Length | 6.36" |
| Length Less Shaft | 3 3/4" |
| Motor Application | OEM Replacement |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CCWSE |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Mounting Stud Length | 9/16" |
| Mounting Stud Size | #10-32 |
| Mounting Type | Extended Studs |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 3 |
| Number Of Shafts | 1 |
| Number Of Speeds | 3 |
| Oem Replacement Brand | Camco |
| Opp Drive End Bearing | Ball |
| Output Hp | 1/11 hp to 1/70 hp |
| Output Kw | 0.07 kW |
| Phase | 1 |
| Replacement For | 2868-405-173 |
| Rpm | 1500 RPM |
| Service Factor | 1 |
| Shaft Extension Size | 2.6" |
| Shaft Length | 2 5/8" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 3.11 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 11.13 |
| Country of Origin | MX |
