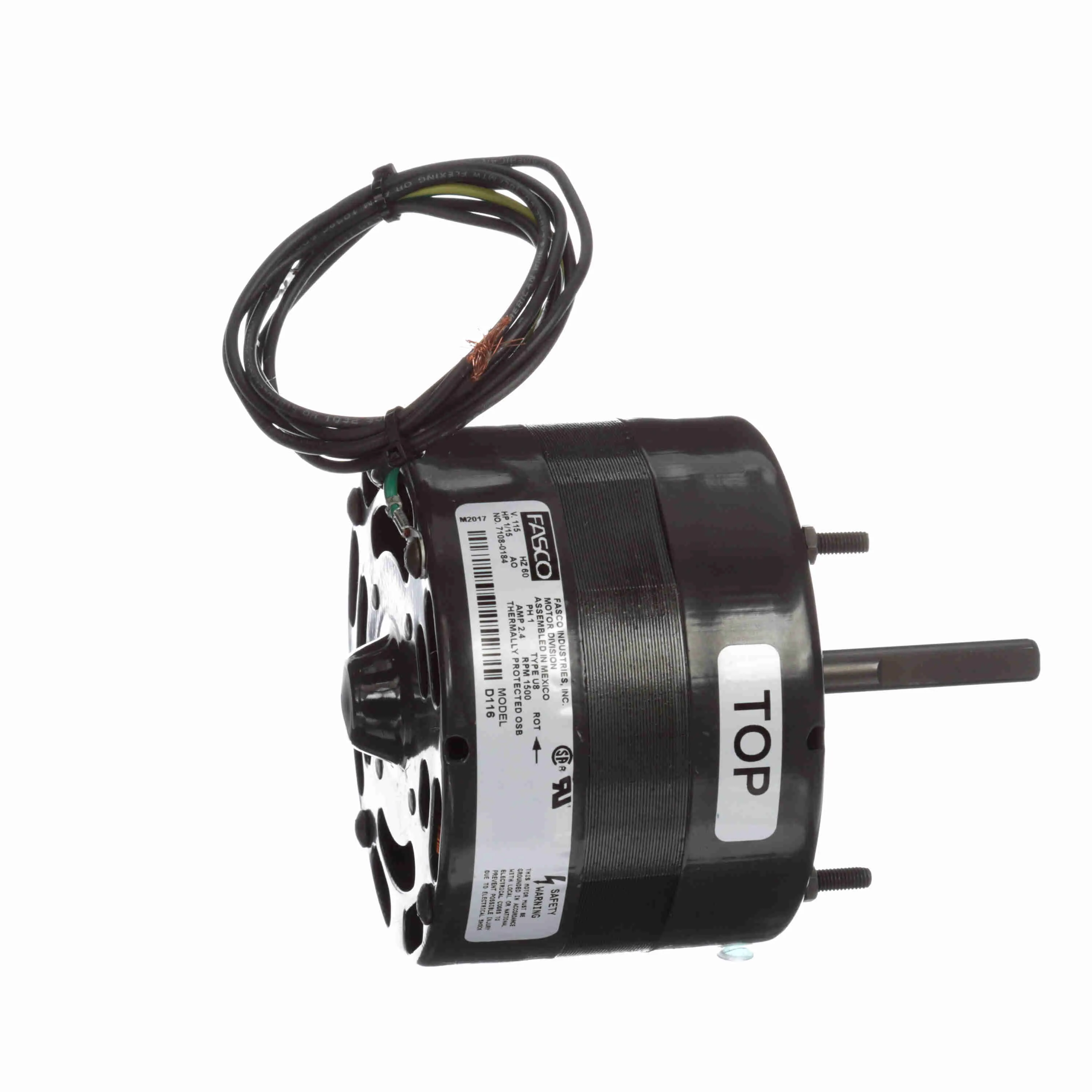

FASCO D116 Fan And Blower Motor, 1/15 HP, 1 Phase, 60 Hz, 115 V, 1500 rpm, 1 Speed, 4.4 Inch Dia
Item: EA2JWBModel: D116
7 In Stock
Ships within 2 days via
€237.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 18.2/9.8-9.1A |
| Application | Fan, Blower |
| Body Dia. | 4 3/8" |
| Bolt Circle Dia. | 3 7/8" |
| Capacitor Required Mfd/v | Not Available |
| Design Code | L |
| Duty | Air Over |
| Efficiency | 80% |
| Electrical Phase | 1 |
| Electrical Type | Capacitor Start Capacitor Run |
| Enclosure Type | Open, Drip Proof |
| Frame | 4.4 |
| Frame Material | Rolled Steel |
| Full Load Amps | 2.4A |
| Hp | 1/10 hp |
| Ins. Class | Class A |
| Insulation Class | Class B |
| Kva Code | H |
| Lead Length | 27" |
| Length Less Shaft | 3 15/16" |
| Motor Application | OEM Replacement |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Extended Studs |
| Motor Orientation | Horizontal |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counterclockwise Shaft End |
| Motor Sub Application | Fan And Blower Motor |
| Motor Thermal Protection | Included |
| Mounting | Resilient Base |
| Mounting Stud Location | Shaft End |
| Overall Length | 5.97" |
| Pole | 2 |
| Power | 2 hp |
| Power Factor | 87.5 |
| Rotation | CW |
| Service Factor | 1.2 |
| Shaft Dia. | 3/8" |
| Shaft Extension | 1 22/25" |
| Shaft Length | 2.45" |
| Shaft Type | T |
| Speed | 1401-1500 RPM , 1500 RPM , 3450 RPM |
| Thermal Protection | Automatic |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 2.34 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 11.13 |
| Country of Origin | US |
