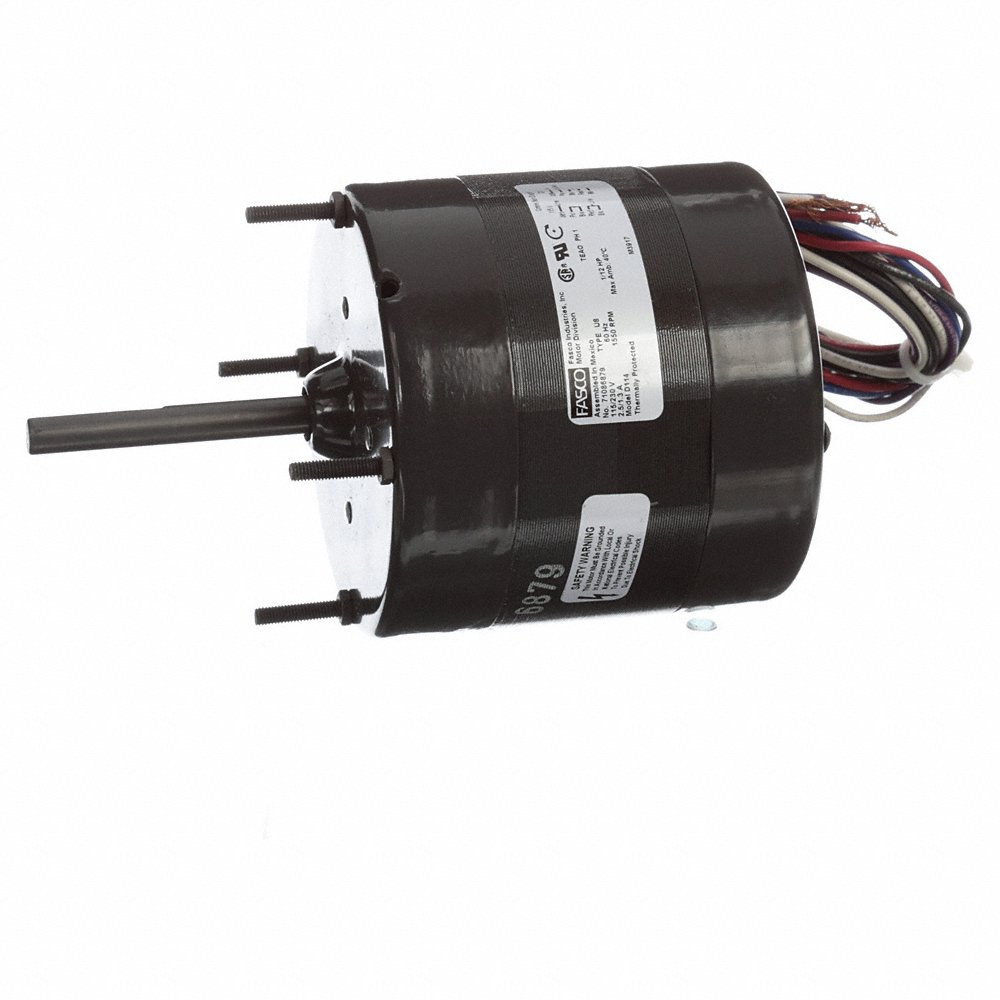

FASCO D114 Fan Coil And Air Conditioner Motor, 1/12 HP, 1 Phase, 60 Hz, 115/230 V, 1550 RPM
Item: CP4XNJModel: D114Cross Ref: 813YA7
7 In Stock
Ships within 2 days via
10.00% off
€710.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Conditioner Motor |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 2.5/1.3A |
| Body Dia. | 4 3/8" |
| Bolt Circle Dia. | 3 15/16" |
| Ce | N |
| Csa | Y |
| Current | 2.5/1.3A |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Efficiency | 39% |
| Electrical Type | Shaded Pole |
| Enclosure | Totally Enclosed Air Over |
| Frame | 4.4 |
| Frequency | 60 Hz |
| Includes | #10-32 Extended Studs, Conduit Box |
| Insulation Class | Class A |
| Lead Length | 26" |
| Length | 7.62" |
| Length Less Shaft | 5" |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | TEAO |
| Motor Frame Material | Not Applicable |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CWSE |
| Motor Sub Application | Fan Coil |
| Motor Thermal Protection | Auto |
| Mounting | Extended Studs |
| Mounting Stud Location | Shaft End |
| Mounting Type | Extended Studs |
| No. Of Poles | 4 |
| Nominal Efficiency | 39% |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/12 hp |
| Output Kw | 0.06 kW |
| Overall Length | 7 5/8" |
| Phase | 1 |
| Poles | 4 |
| Rotation | Clockwise Shaft End |
| Rpm | 1550 RPM |
| Shaft Dia. | 0.375" |
| Shaft Diameter | 0.375" |
| Shaft Extension | 3" |
| Shaft Extension Size | 3" |
| Shaft Length | 3" |
| Shaft Type | Flat |
| Speed | 1550 RPM |
| Starting Method | Across The Line |
| Ul | Recognized |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V |
Shipping Info:
| Ship weight (kg) | 4.01 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 20.83 |
| Ship width (cm) | 11.18 |
| Country of Origin | MX |
