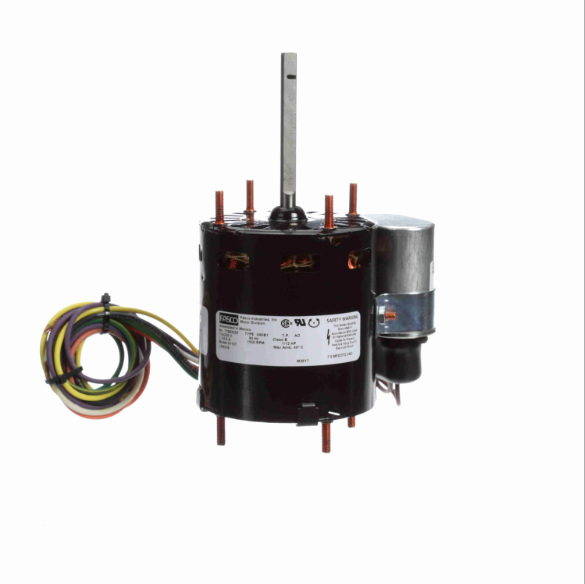

FASCO D1127 Hvac Motor 1/12 Hp 1550 Rpm 115/230v 3.3
Item: AC7LUNModel: D1127Cross Ref: 38N557
7 In Stock
Ships within 2 days via
10.00% off
€176.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Amps | 1.1/0.6A |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Capacitor Required | Included |
| Conduit Box Position | F3 |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Permanent Split Capacitor |
| Frame | 3.3 |
| Frame Length | 3.32" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.1/0.6A |
| Hp | 1/12 hp |
| Hz | 60 Hz |
| Includes | 7.5 MFD 370V AC Capacitor |
| Includes Capacitor | Yes |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 20" |
| Length | 6.87" |
| Length Less Shaft | 4 1/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Ring, Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Oem Replacement |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting | Stud |
| Mounting Holes | (8) #10-32 |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Mounting Stud Location | 4/Both Ends |
| Mounting Stud Pattern | 2 7/8" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1550 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/12 hp |
| Output Kw | 0.06 kW |
| Overall Length | 6 7/8" |
| Permanent Split Capacitor Required | 7.5 µf, 370V |
| Phase | 1 |
| Product Datasheet | fasco-d1127.pdf |
| Rpm | 1550 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 3.06" |
| Shaft Length | 3" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Location | Both Ends |
| Stud Size | #10-32 |
| Stud/base Mtg. Pattern | 2-7/8 x 2-7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V |
| Weight | 4 lbs. |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 14.3 |
| HS code | 8501402040 |
| Country of Origin | MX |
Product Details:
Fasco D1127 HVAC motor is responsible for the smooth startup of components in ventilation systems that control the temperature and air quality. This permanent split-capacitor motor is useful in confined spaces like mining sites and commercial workspaces.
Features:
- Fasco D1127 HVAC motor has a steel frame for durability.
- It is thermally protected and features Class B insulation.
- This D1127 HVAC motor can rotate in both directions (clockwise and counterclockwise).
- It has extended studs at the shaft end for easy installation.
Frequently Asked Questions:
Q. How can I determine if Fasco HVAC motor needs professional servicing or repair?
A. If you notice any unusual noises, reduced performance or other signs of trouble with your HVAC motor, it is advisable to consult a professional technician.
Q. Are there any safety precautions to consider when working with HVAC motors?
A. Always disconnect the power source before performing maintenance or repairs and consider wearing appropriate safety gear.
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Motor Shaft Rotation | Motor Application | No. Of Speeds | Frame | Mounting Type | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D129 | 115V | 1/125 hp, 1/200 hp | CWSE | HVAC/R | 2 | 3.3 | Extended Studs | OAO | €291.84 | |
 |
D1162 | 115V | 1/100 hp, 1/250 hp | CW/CCW | HVAC/R | 1 | 3.3 | Round Belly Band | OAO | €316.12 | |
 |
D1119 | 240V | 1/90 hp | CCWSE | HVAC/R | 1 | 3.3 | Extended Studs | OAO | €170.49 | |
|
D1134 | 120V | 1/50 hp, 1/65 hp, 1/30 hp | CWSE | HVAC/R | 3 | 3.3 | Extended Studs | OAO | €209.23 | |
 |
D1139 | 115V | 1/50 hp | CWSE | HVAC/R | 3 | 3.3 | Extended Studs | TEAO | €232.36 | |
 |
D128 | 115V | 1/40 hp, 1/50 hp, 1/80 hp | CWLE | HVAC/R | 3 | 3.3 | Extended Studs | OAO | €225.55 | |
 |
D136 | 115V | 1/30 hp | CWLE | HVAC/R | 1 | 3.3 | Extended Studs | OAO | €290.95 |
