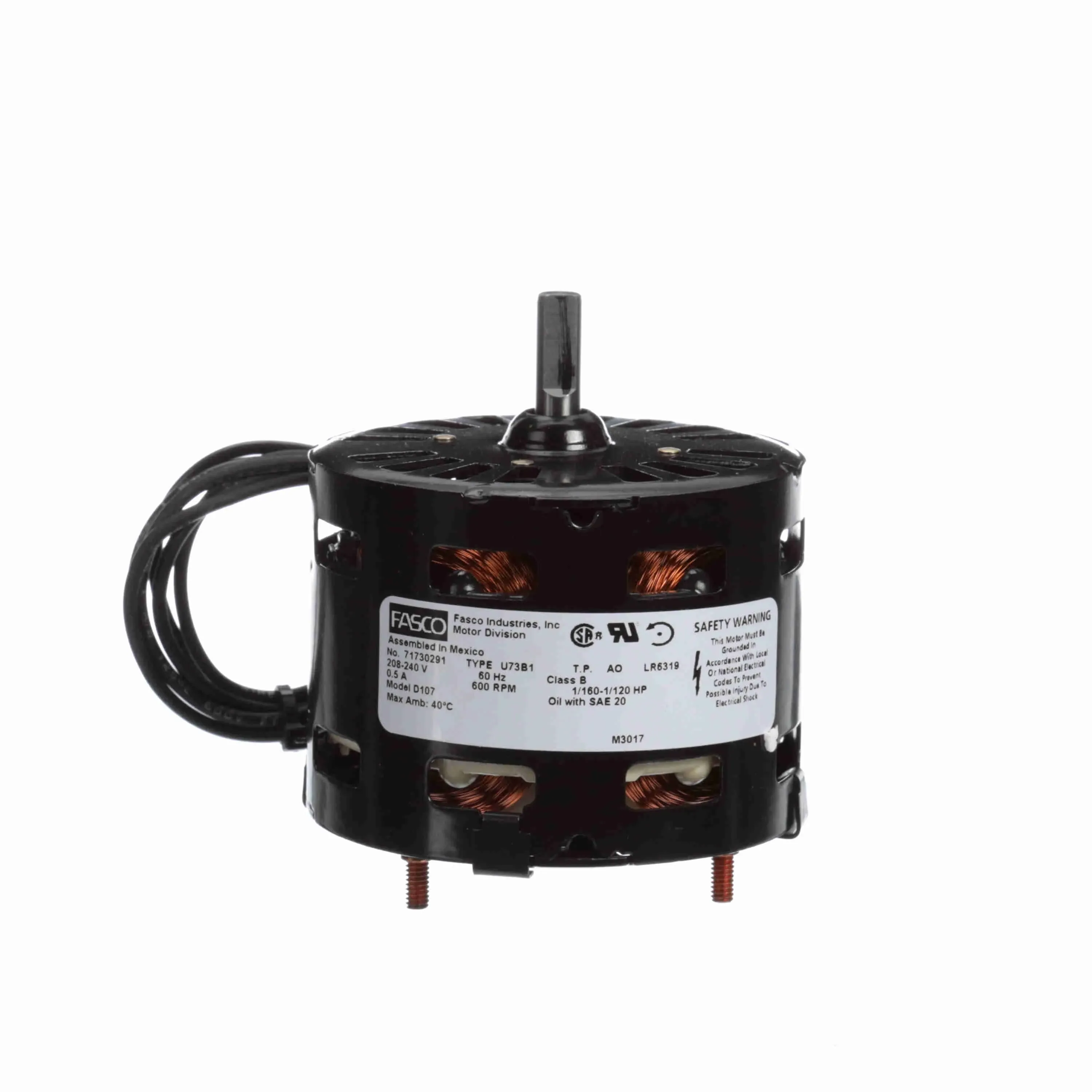

FASCO D107 Fan and Blower Motor, 1/160 - 1/120 HP, 1 Phase, 60 Hz, 208-240 V, 600 RPM, 1 Speed
Item: AC7LTEModel: D107Cross Ref: 38N526
7 In Stock
Ships within 2 days via
10.00% off
€134.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 0.5A |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Capacitor Required | No |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 2.32" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 0.5A |
| Hp | 1/120 hp, 1/160 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 16" |
| Length | 3.88" |
| Length Less Shaft | 3 1/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Ring, Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CCWSE |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Stud |
| Mounting Holes | (4) #8-32 |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Mounting Stud Location | 4/Opposite Shaft End |
| Mounting Stud Pattern | 2 7/8" x 2 7/8" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 600 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Poles | 12 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Number Of Mounting Holes | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/160 hp to 1/120 hp |
| Output Kw | 0.01 kW |
| Overall Length | 3 7/8" |
| Phase | 1 |
| Rpm | 600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 1" |
| Shaft Length | 1" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Location | Opposite Shaft End |
| Stud Pattern | 2 7/8" x 2 7/8" |
| Stud Size | #8-32 |
| Stud/base Mtg. Pattern | 2-7/8 x 2-7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-240V |
| Weight | 3 lbs. |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 8.59 |
| HS code | 8501104020 |
| Country of Origin | MX |
