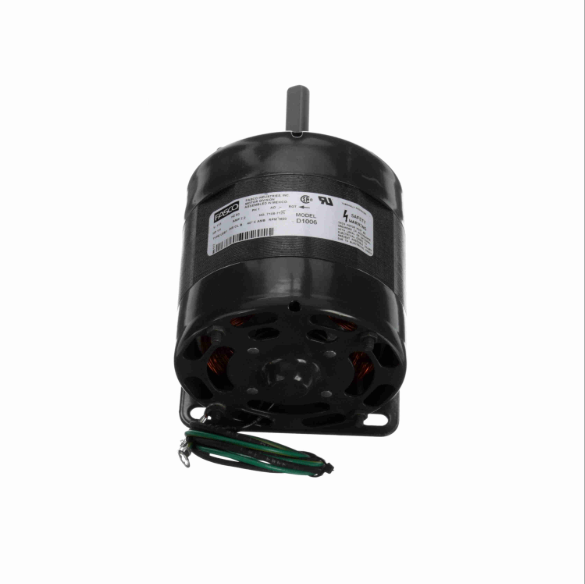

FASCO D1006 Condenser Fan Motor, 1/4 HP, 1600 RPM, 115V AC
Item: CH9XDZModel: D1006Cross Ref: 48GN04
7 In Stock
Ships within 2 days via
10.00% off
€532.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 7.2A |
| Bearing Type | Sleeve |
| Body Dia. | 4 3/8" |
| Bolt Circle Dia. | 3 15/16" |
| Capacitor Required | No |
| Dia. | 4 2/5" |
| Diameter | 4 2/5" |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Enclosure Type | Open Air Over |
| Frame | 4.4 |
| Frequency | 60 Hz |
| Full Load Amps | 7.2A |
| Hp | 1/4 hp |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Length | 7.37" |
| Length Less Shaft | 4 1/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | OEM Replacement |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Shaft Rotation | CWSE |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Shaded Pole |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1600 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Oem Replacement Brand | Thermal Transfer |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/4 hp |
| Output Kw | 0.19 kW |
| Overall Length | 7 3/8" |
| Phase | 1 |
| Replacement For | 66098 |
| Rpm | 1600 RPM |
| Service Factor | 1 |
| Shaft Extension Size | 2.75" |
| Shaft Length | 2 3/4" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
| Weight | 9 lbs. |
Shipping Info:
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 13.03 |
| Ship width (cm) | 13.03 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Motor Enclosure Design | Motor Design | No. Of Speeds | Frame | Phase | Hp | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D847 | 208-230V | TEAO | Permanent Split Capacitor | 1 | 48 | 1 | 1/8 hp | Auto | €464.11 | |
 |
D1152 | 115V | OAO | Shaded Pole | 1 | 3.3 | 1 | 1/20 hp | Automatic | €180.57 | |
 |
D1122 | 208-230V | OAO | Permanent Split Capacitor | 1 | 3.3 | 1 | 1/16 hp | Automatic | €303.38 | |
 |
D1173 | 115V | OAO | Shaded Pole | 1 | 3.3 | 1 | 1/35 hp | Automatic | €334.68 | |
 |
D909 | 208-230V | TEAO | Permanent Split Capacitor | 1 | 48 | 1 | 1/4 hp | Auto | €227.01 | |
 |
D1167 | 208-230V | OAO | Shaded Pole | 1 | 3.3 | 1 | 1/40 hp | Automatic | €473.58 | |
 |
D895 | 200-230V | TEAO | Permanent Split Capacitor | 1 | 48 | 1 | 1/8 hp | Auto | €329.58 |
