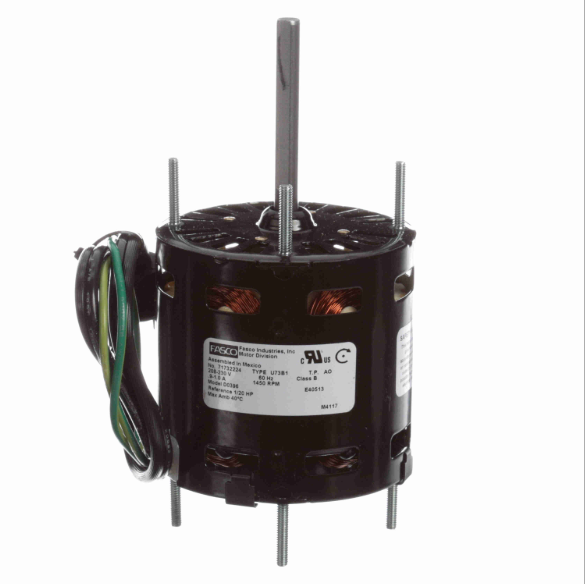

FASCO D0396 HVAC Motor OAO 1/20 HP 1450 rpm 208-230V
Item: AH3KPHModel: D0396Cross Ref: 32NA47
7 In Stock
Ships within 2 days via
10.00% off
€136.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Amps | 0.9-1A |
| Application | General Application |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Capacitor Required | No |
| Cord Length | 14" |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 3.24" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 0.9-1A |
| Hp | 1/20 hp |
| Hz | 60 Hz |
| Includes | Belly Band |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 12 1/4" |
| Length | 6.15" |
| Length Less Shaft | 3 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Extended Studs |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CWSE |
| Motor Shaft Rotation | Counter Clockwise Lead End |
| Motor Sub Application | Oem Replacement |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting Holes | (8) #8-32 |
| Mounting Stud Location | 4/Both Ends |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1450 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/20 hp |
| Output Kw | 0.04 kW |
| Overall Length | 6 1/8" |
| Phase | 1 |
| Plug Type | Round 2 Pin |
| Rpm | 1450 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 2.66" |
| Shaft Length | 2 5/8" |
| Shaft Type | Flat |
| Standards | Ul Recognized |
| Starting Method | Across The Line |
| Stud Location | Both Ends |
| Stud Size | #8-32 |
| Stud/base Mtg. Pattern | 2-27-32" x 90 Degrees |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V |
| Weight | 4 lbs. |
Shipping Info:
| Ship weight (kg) | 1.74 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 9.86 |
| Country of Origin | MX |
Product Details:
- No. of Speeds : 1
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Shaft Rotation | Thermal Protection | Application | Shaft Length | Usable @ 208v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D1124 | 115V | 1/20 hp | 1550 RPM | CWSE | Automatic | HVAC/R | 3" | No | €178.59 | |
 |
D1126 | 208-230V | 1/15 hp | 1550 RPM | CWSE | Automatic | HVAC/R | 3" | Yes | €168.98 | |
 |
D1101 | 115V | 1/20 hp | 1500 RPM | CCWSE | Automatic | HVAC/R | 2 1/4" | No | €175.57 | |
 |
D1103 | 208-230V | 1/20 hp | 1500 RPM | CCWSE | Automatic | HVAC/R | 2 1/4" | Yes | €189.77 |
