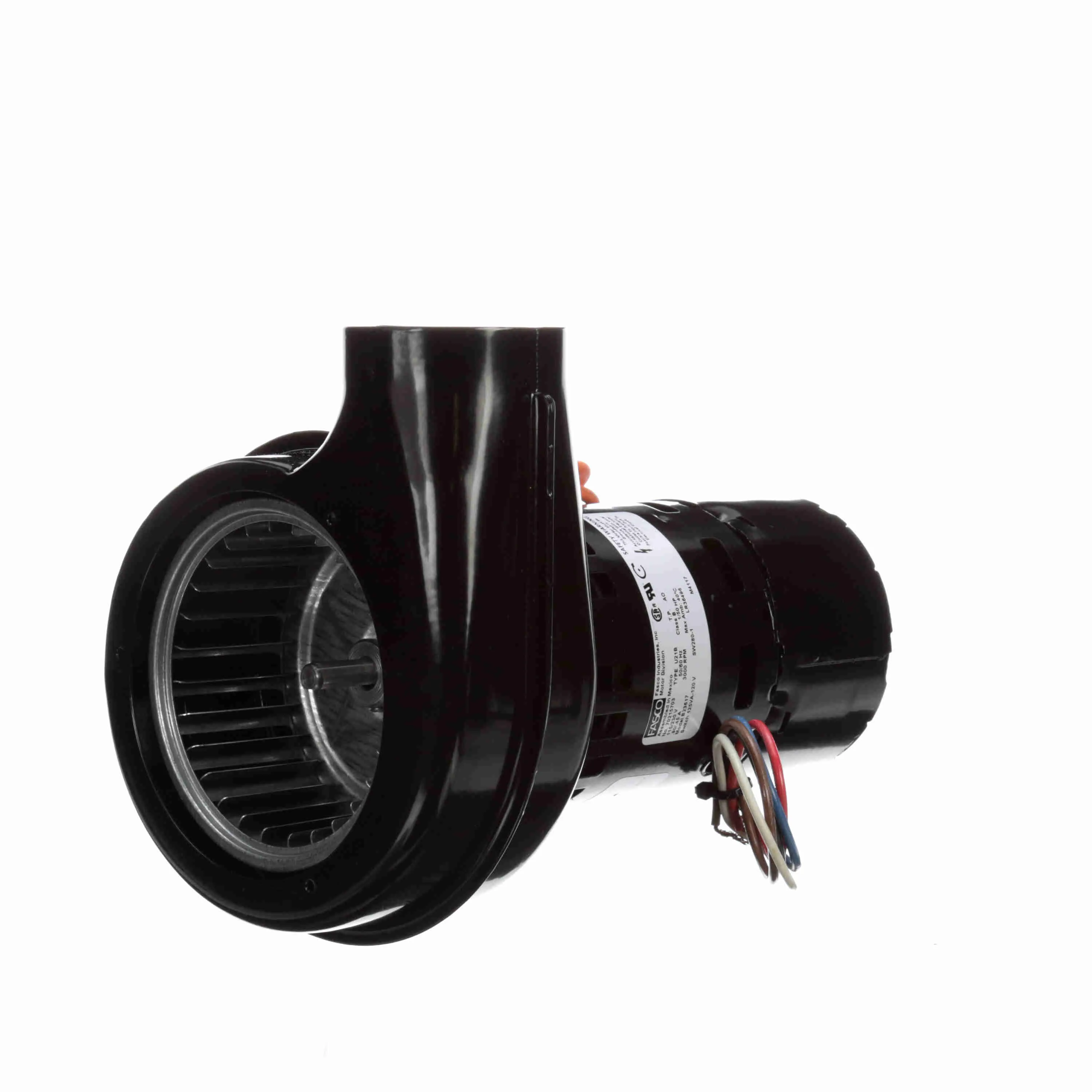

FASCO B23617 Round Outlet Shaded Pole OEM Replacement Draft Inducer Blower, 115/230 Volt
Item: CJ2XYXModel: B23617Cross Ref: 45KD88
7 In Stock
Ships within 2 days via
10.00% off
€325.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Blower |
| Airflow @ 0.000 In Sp | 70 CFM |
| Airflow @ 0.125 In Sp | 65 CFM |
| Airflow @ 0.250 In Sp | 62 CFM |
| Airflow @ 0.500 In Sp | 54 CFM |
| Airflow @ 0.750 In Sp | 42 CFM |
| Airflow @ 1.000 In Sp | 5 CFM |
| Airflow @ 1.250 In Sp | 0 CFM |
| Airflow @ 1.500 In Sp | 0 CFM |
| Airflow @ 2.000 In Sp | 0 CFM |
| Airflow @ 2.500 In Sp | 0 CFM |
| Airflow @ 3.000 In Sp | 0 CFM |
| Airflow @ 4.000 In Sp | 0 CFM |
| Airflow @ 5.000 In Sp | 0 CFM |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 0.9/0.45A |
| Assembly | Assembled |
| Bearing Type | Sleeve |
| Blower Conduit Box | No |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Round |
| Blower Wheel Diameter | 3 13/16" |
| Blower Wheel Width | 1 7/8" |
| Cfm @ 0.900-in. Sp | 41 CFM |
| Cfm @ 1.000-in. Sp | 33 CFM |
| Chemical Resistant | No |
| Corrosion Resistant | No |
| Csa | Yes |
| Discharge Position | All |
| Drive Package With Motor Included? | Yes |
| Drive Type | Direct Drive |
| Features | 8 To 6 In Leads With Strip, 9.5 To 7.5 In And 8 To 6 In Switch Leads With Strip, Open Air Over |
| Flange Size | Not Applicable |
| For Air Type | Clean Air |
| For High-static Pressure Applications | No |
| Frequency | 50/60 Hz |
| Hazardous Location Application | No |
| Hazardous Location Specification | No |
| Housing Color | Black |
| Housing Finish | Paint |
| Housing Material | Steel |
| Housing Material Finish | Painted |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Inlet Dia. | 3 7/8" |
| Insulation Class | Class B |
| Lead Length | 6" |
| Maximum Ambient Temperature | 40°C |
| Maximum Fan Speed | 3300 RPM |
| Maximum Inlet Air Temperature | 104°F |
| Maximum Static Pressure | 1 in. wc |
| Minimum Fan Speed | 3000 RPM |
| Motor Horsepower | 1/50 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 3000 RPM |
| Motor Type | Shaded Pole |
| Mounting Orientation | Horizontal |
| Mounting Position | Shaft Horizontal |
| Nameplate Voltage | 115/230V AC |
| No. Of Speeds | 1 |
| Number Of Discharge Positions | 4 |
| Number Of Inlets | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | No |
| Outlet Dia. | 2 1/8" |
| Outlet Height | Not Applicable |
| Outlet Shape | Round |
| Outlet Type | Non Flanged |
| Outlet Width | Not Applicable |
| Overall Depth | 8 3/4" |
| Overall Height | 5 7/8" |
| Overall Width | 6 3/8" |
| Phase | 1 |
| Replacement For | 80270 |
| Rotation | CCW |
| Rpm | 3000 RPM |
| Spark Resistant Construction Type | Not Rated |
| Speed | 3000 RPM |
| Speed Controllable | No |
| Standards | Ul Recognized, Csa Recognized |
| Thermal Overload Protection | Yes |
| Ul | Yes |
| Voltage | 115/230V |
| Wheel Dia. | 3 3/4" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| Wheel Width | 1 7/8" |
| With Flange | No |
Shipping Info:
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 14.92 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 16.19 |
| Country of Origin | US |
