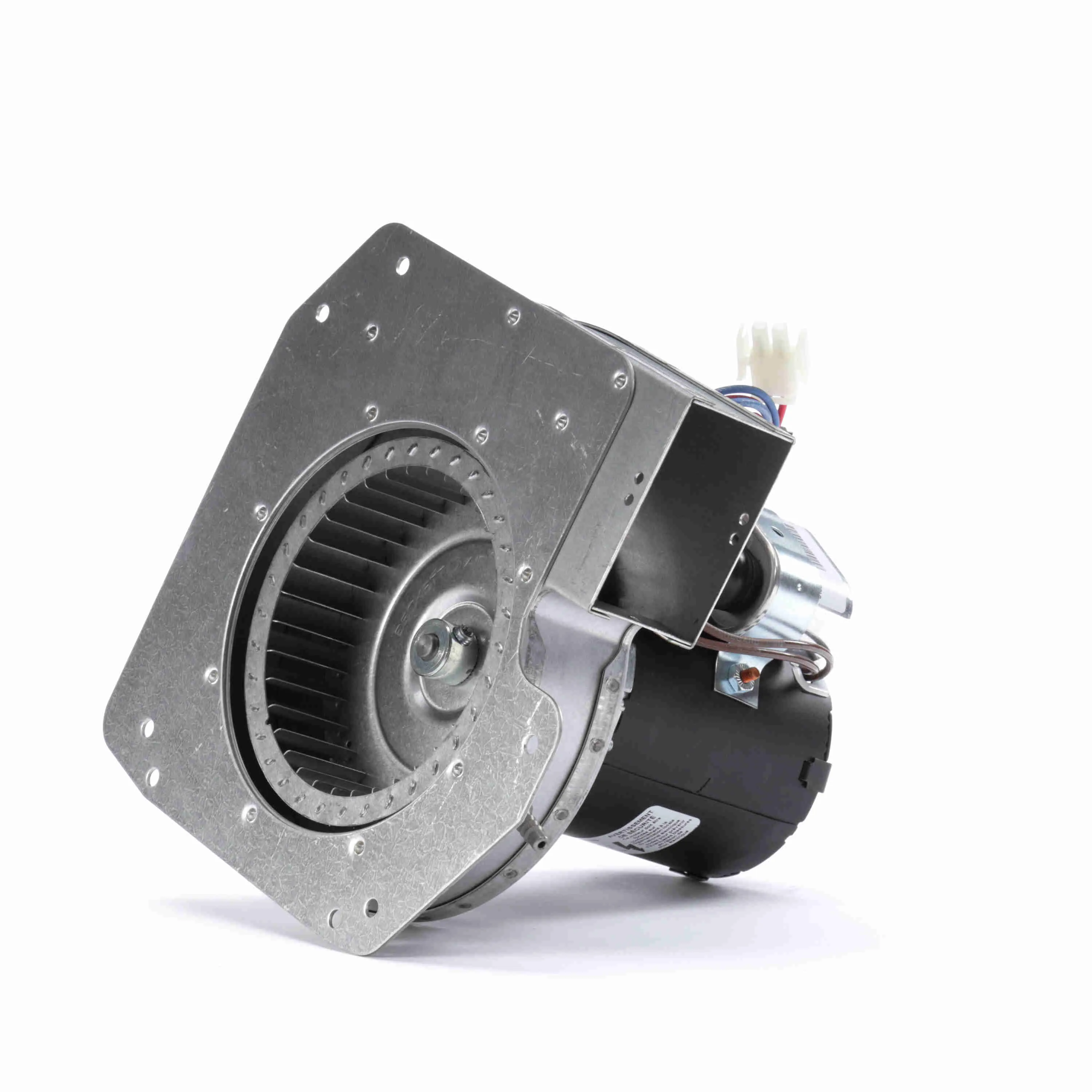

FASCO A330 Permanent Split Capacitor OEM Replacement Draft Inducer Blower, 208-230 Volt
Item: CJ2XWQModel: A330Cross Ref: 45KD65
7 In Stock
Ships within 2 days via
10.00% off
€486.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Blower |
| Airflow @ 0.000 In Sp | 158 CFM |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 0.55A |
| Application | Furnaces |
| Bearing Type | Ball |
| Blower Conduit Box | No |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Rectangle |
| Blower Wheel Diameter | 4 3/4" |
| Blower Wheel Width | 1 5/16" |
| Compatible With Brand | Lennox |
| Csa | Yes |
| Drive Type | Direct |
| Electrical Connection | Wire Leads |
| Frequency | 50/60 Hz |
| Housing Color | Natural |
| Housing Finish | Metal |
| Housing Material | Steel |
| Includes Capacitor | Yes |
| Inlet Dia. | 5" |
| Insulation Class | Class B |
| Lead Length | 19" |
| Maximum Fan Speed | 3200 RPM |
| Maximum Inlet Air Temperature | 400°F |
| Maximum Motor Speed | 3200 RPM |
| Motor Enclosure | Open |
| Motor Enclosure Design | Open |
| Motor Insulation | Class B |
| Motor Type | Permanent Split Capacitor |
| Mounting Position | All Position |
| Nameplate Voltage | 208-230V AC |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | Yes |
| Outlet Dia. | Not Applicable |
| Outlet Height | 2 3/4" |
| Outlet Shape | Rectangular |
| Outlet Width | 1 3/4" |
| Overall Depth | 6 3/4" |
| Overall Height | 7 3/4" |
| Overall Width | 7 1/4" |
| Permanent Split Capacitor Required | 3 µf, 370V |
| Phase | 1 |
| Product Datasheet | fasco-a330.pdf |
| Replacement For Manufacturer Model Number | 69M3301, 7062-4083, 7062-4517, 7062-4608, 7062-5546 |
| Rpm | 3200 RPM |
| Speed | 3200 RPM |
| Thermal Overload Protection | Auto |
| Ul | Yes |
| Voltage | 208-230V |
| Wheel Dia. | 4 5/8" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| With Flange | No |
Shipping Info:
| Ship weight (kg) | 2.9 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 18.42 |
| Country of Origin | MX |
