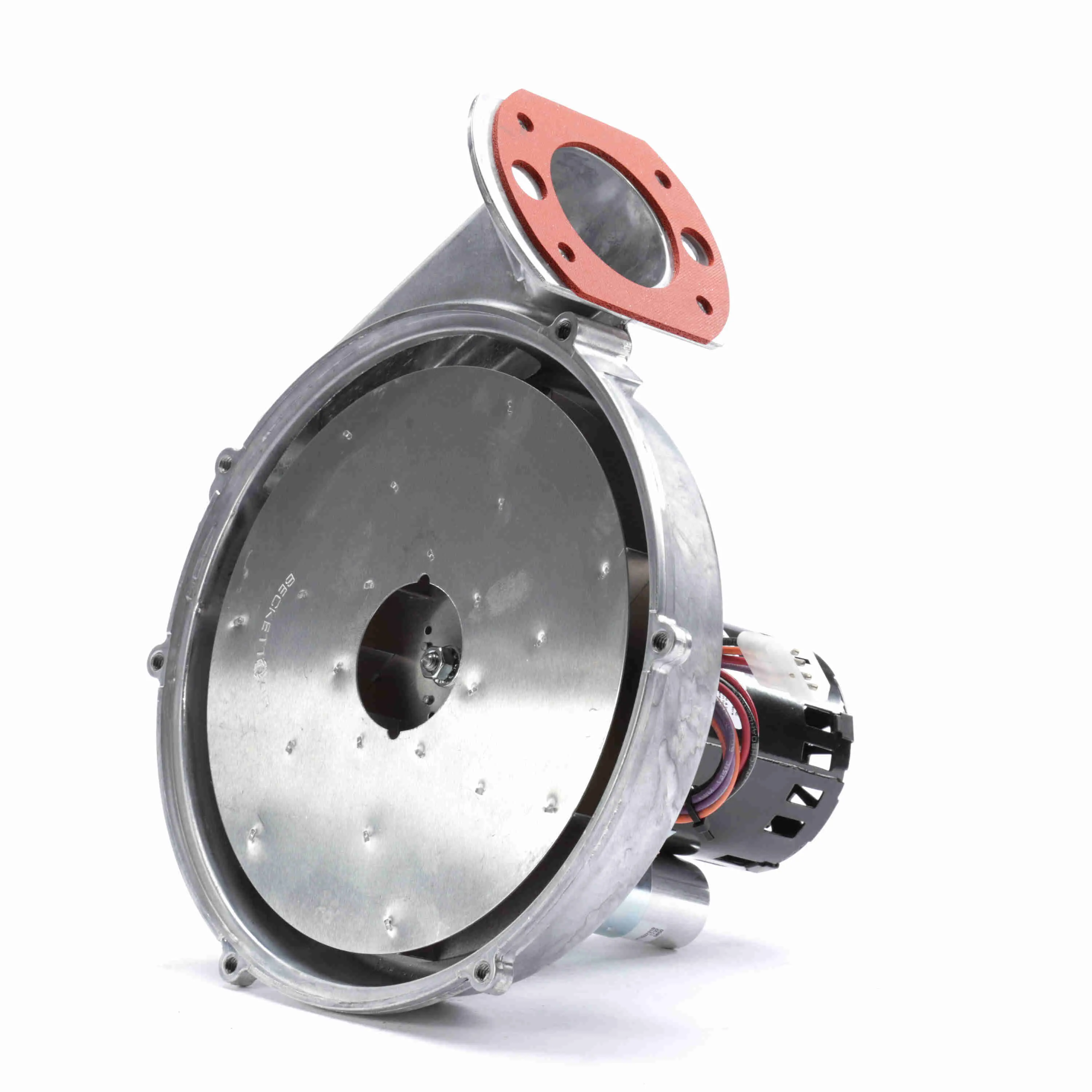

FASCO A271 Round Outlet Permanent Split Capacitor OEM Replacement Draft Inducer Blower, 208-230 Volt
Item: CJ2XVXModel: A271Cross Ref: 45KD37
7 In Stock
Ships within 2 days via
10.00% off
€882.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Blower |
| Airflow @ 0.000 In Sp | 47 CFM |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 0.62A |
| Application | Furnaces |
| Bearing Type | Ball |
| Blower Conduit Box | No |
| Blower Outlet Flange | Yes |
| Blower Outlet Shape | Round |
| Blower Wheel Diameter | 7 7/8" |
| Blower Wheel Width | 3/4" |
| Compatible With Brand | Trane |
| Csa | Yes |
| Drive Type | Direct |
| Electrical Connection | Wire Leads |
| Frequency | 50/60 Hz |
| Housing Color | Natural |
| Housing Material | Aluminum |
| Includes | Gasket |
| Inlet Dia. | 8 3/4" |
| Insulation Class | Class B |
| Lead Length | 12" |
| Maximum Fan Speed | 3500 RPM |
| Maximum Inlet Air Temperature | 200°F |
| Maximum Motor Speed | 3500 RPM |
| Motor Enclosure | Open Fan Cooled |
| Motor Enclosure Design | OFC |
| Motor Insulation | Class B |
| Motor Type | Permanent Split Capacitor |
| Mounting Orientation | Horizontal |
| Mounting Position | Shaft Horizontal |
| Nameplate Voltage | 208-230V AC |
| No. Of Speeds | 2 |
| Number Of Speeds | 2 |
| Oem Replacement | Yes |
| Outlet Dia. | 2 1/4" |
| Outlet Height | Not Applicable |
| Outlet Shape | Round |
| Outlet Width | Not Applicable |
| Overall Depth | 8" |
| Overall Height | 10 1/2" |
| Overall Width | 9 1/2" |
| Phase | 1 |
| Product Datasheet | fasco-a271.pdf |
| Replacement For Manufacturer Model Number | 7062-3969, X38040308-01 |
| Rpm | 3500 RPM |
| Speed | 3500 RPM |
| Thermal Overload Protection | Auto |
| Ul | Yes |
| Voltage | 208-230V |
| Wheel Dia. | 7 3/4" |
| Wheel Material | Aluminum |
| Wheel Type | Backward Curved |
| With Flange | Yes |
Shipping Info:
| Ship weight (kg) | 3.92 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
