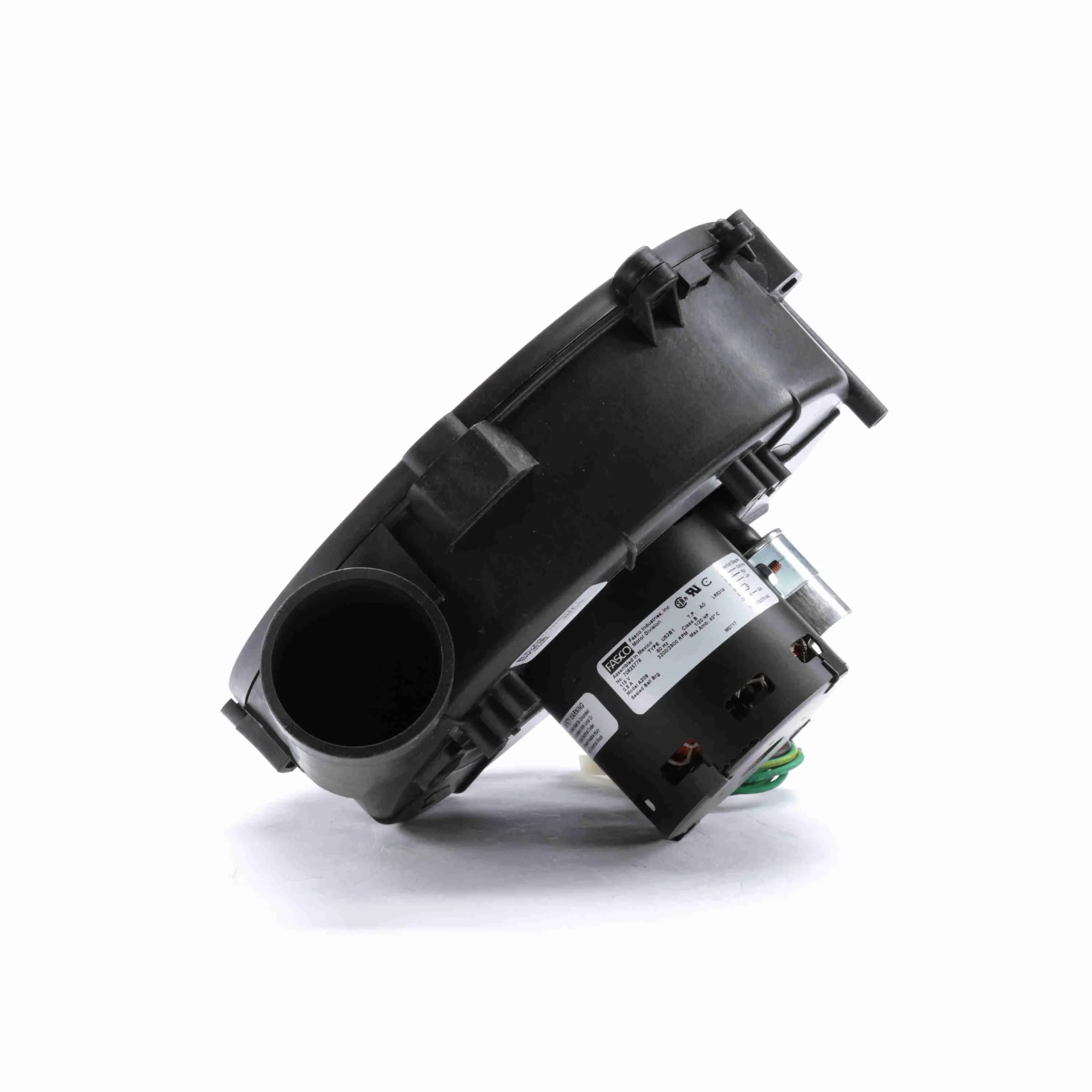

FASCO A209 Round Outlet Permanent Split Capacitor OEM Replacement Draft Inducer Blower, 115 Volt
Item: CJ2XYBModel: A209Cross Ref: 45KC99
7 In Stock
Ships within 2 days via
10.00% off
€574.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Blower |
| Airflow @ 0.000 In Sp | 77 CFM |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 0.8A |
| Application | Furnaces |
| Bearing Type | Ball |
| Blower Conduit Box | No |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Round |
| Blower Wheel Diameter | 7 1/2" |
| Blower Wheel Width | 1 5/16" |
| Compatible With Brand | Lennox |
| Csa | Yes |
| Drive Type | Direct |
| Electrical Connection | Wire Leads |
| Frequency | 60 Hz |
| Housing Color | Black |
| Housing Material | Plastic |
| Inlet Dia. | 2" |
| Insulation Class | Class B |
| Lead Length | 6" |
| Maximum Fan Speed | 3200 RPM |
| Maximum Inlet Air Temperature | 180°F |
| Maximum Motor Speed | 3200 RPM |
| Motor Enclosure | Open |
| Motor Enclosure Design | Open |
| Motor Insulation | Class B |
| Motor Type | Permanent Split Capacitor |
| Mounting Position | All Position |
| Nameplate Voltage | 115V AC |
| No. Of Speeds | 2 |
| Number Of Speeds | 2 |
| Oem Replacement | Yes |
| Outlet Dia. | 2 3/8" |
| Outlet Height | Not Applicable |
| Outlet Shape | Round |
| Outlet Width | Not Applicable |
| Overall Depth | 6" |
| Overall Height | 9 1/2" |
| Overall Width | 9 1/2" |
| Phase | 1 |
| Product Datasheet | fasco-a209.pdf |
| Replacement For Manufacturer Model Number | 38M5001, 7062-5441 |
| Rpm | 3200/2800 RPM |
| Speed | 3200/2800 RPM |
| Thermal Overload Protection | Auto |
| Ul | Yes |
| Voltage | 115V |
| Wheel Dia. | 7 1/2" |
| Wheel Material | Polypropylene |
| Wheel Type | Backward Curved |
| With Flange | No |
Shipping Info:
| Ship weight (kg) | 3.2 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 24.13 |
| Country of Origin | MX |
