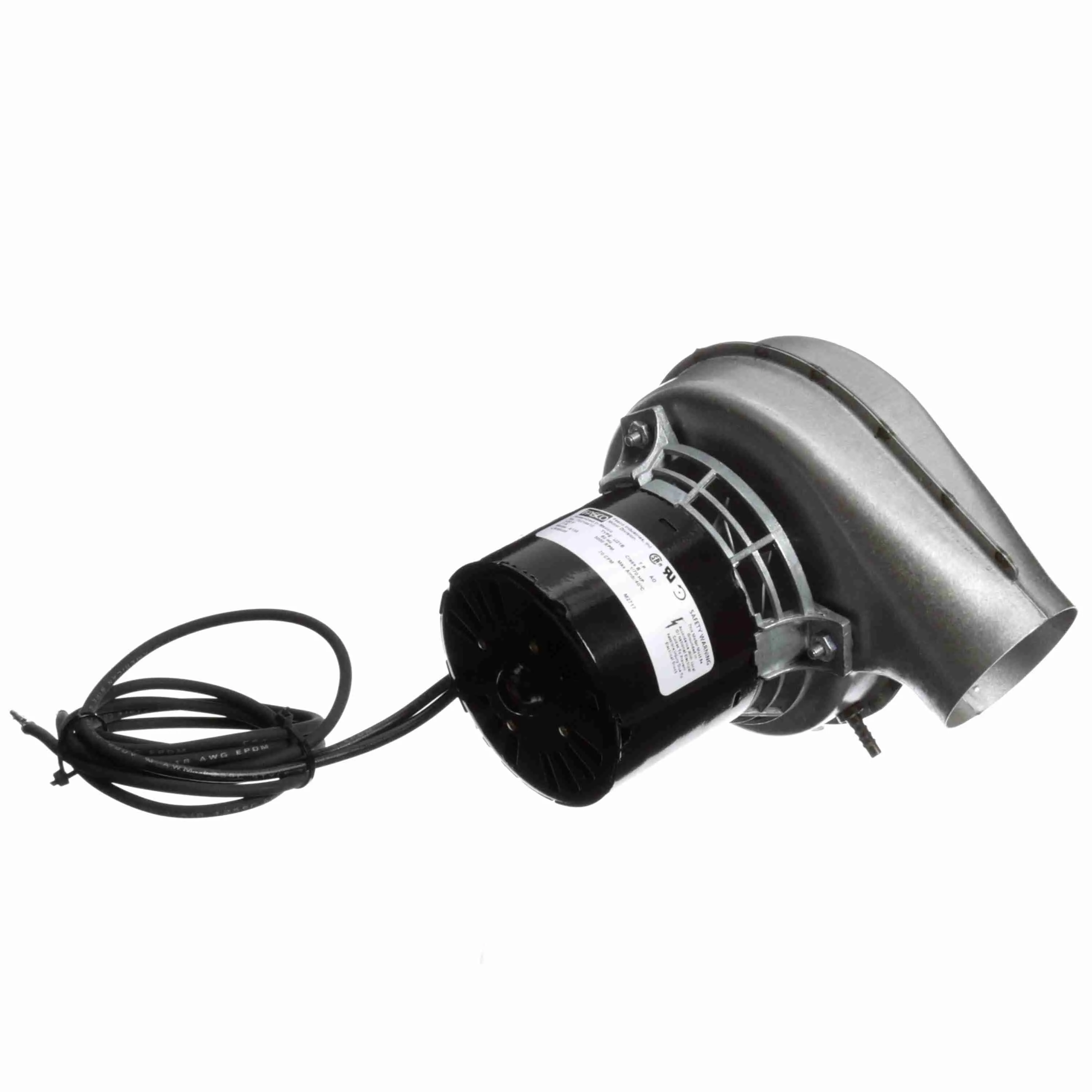

FASCO A138 Round Outlet Shaded Pole OEM Replacement Draft Inducer Blower, 120 Volt
Item: CJ2XYCModel: A138Cross Ref: 45KC51
7 In Stock
Ships within 2 days via
10.00% off
€394.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Blower |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 0.7A |
| Application | Furnaces |
| Bearing Type | Sleeve |
| Blower Conduit Box | No |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Round |
| Blower Wheel Diameter | 3 13/16" |
| Blower Wheel Width | 1 7/8" |
| Compatible With Brand | Lennox |
| Csa | Yes |
| Drive Type | Direct |
| Electrical Connection | Wire Leads |
| Frequency | 60 Hz |
| Housing Color | Natural |
| Housing Finish | Metal |
| Housing Material | Steel |
| Inlet Dia. | 3 7/8" |
| Insulation Class | Class B |
| Lead Length | 36" |
| Max. Static Pressure | Not Applicable |
| Maximum Fan Speed | 3000 RPM |
| Maximum Inlet Air Temperature | 400°F |
| Maximum Motor Speed | 3000 RPM |
| Motor Enclosure | Open |
| Motor Enclosure Design | Open |
| Motor Insulation | Class B |
| Motor Type | Shaded Pole |
| Mounting Position | All Position |
| Nameplate Voltage | 120V AC |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | Yes |
| Outlet Dia. | 2 1/8" |
| Outlet Height | Not Applicable |
| Outlet Shape | Round |
| Outlet Width | Not Applicable |
| Overall Depth | 6" |
| Overall Height | 5 7/8" |
| Overall Width | 6 3/8" |
| Phase | 1 |
| Product Datasheet | fasco-a138.pdf |
| Replacement For Manufacturer Model Number | 7021-8657, 7021-8825 |
| Rpm | 3000 RPM |
| Speed | 3000 RPM |
| Thermal Overload Protection | Auto |
| Ul | Yes |
| Voltage | 120V |
| Wheel Dia. | 3 3/4" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| With Flange | No |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 14.92 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 16.19 |
| Country of Origin | US |
