FREE delivery on orders over €150

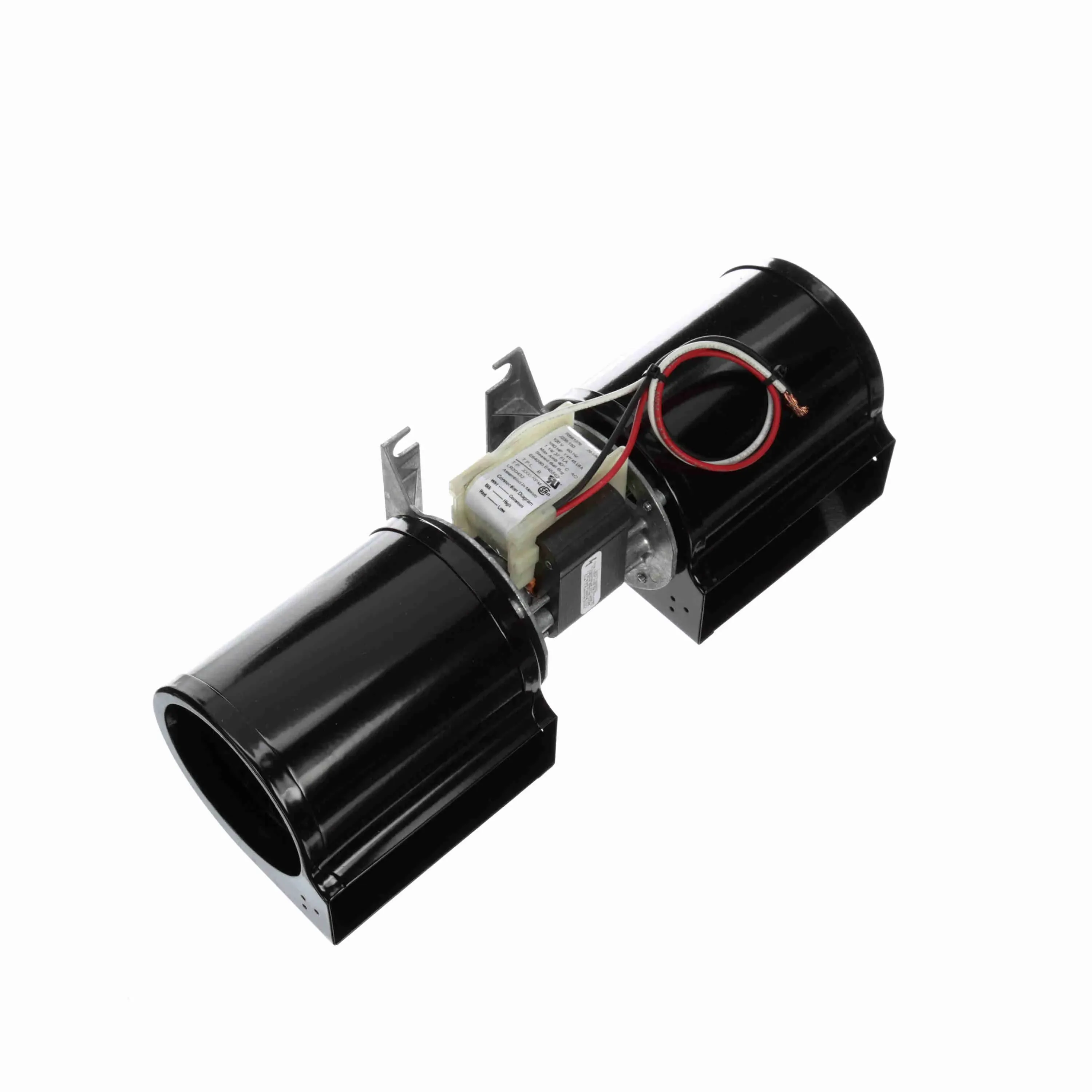

FASCO A120 Rectangular Outlet Shaded Pole OEM Replacement Centrifugal Blower, 120 Volt
Item: CJ2XXVModel: A120Cross Ref: 45KC41
7 In Stock
Ships within 2 days via
10.00% off
€355.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Centrifugal Blower |
| Airflow @ 0.000 In Sp | 175 CFM |
| Airflow @ 0.250 In Sp | 146 CFM |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 1.14A |
| Assembly | Assembled |
| Bearing Type | Ball |
| Blower Conduit Box | No |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Rectangle |
| Blower Wheel Diameter | 3 1/8" |
| Blower Wheel Width | 3 3/4" |
| Csa | Yes |
| Discharge Position | Horizontal |
| Drive Package With Motor Included? | Yes |
| Drive Type | Direct Drive |
| Features | C-Frame, Open Air Over |
| Flange Size | Not Applicable |
| Frequency | 60 Hz |
| Housing Color | Black |
| Housing Finish | Paint |
| Housing Material | Steel |
| Housing Material Finish | Painted |
| Includes | Grommet, Spacer |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Inlet Dia. | 3 1/4" |
| Insulation Class | Class B |
| Lead Length | 12" |
| Maximum Ambient Temperature | 104°F |
| Maximum Fan Speed | 3000 RPM |
| Maximum Inlet Air Temperature | 104°F |
| Maximum Static Pressure | 0.5 in. wc |
| Motor Enclosure | Open |
| Motor Enclosure Design | Open |
| Motor Horsepower | 1/40 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 3000 RPM |
| Motor Type | Shaded Pole |
| Mount Type | All Position |
| Mounting Position | All Position |
| Nameplate Voltage | 120V AC |
| No. Of Speeds | 2 |
| Number Of Discharge Positions | 1 |
| Number Of Inlets | 2 |
| Number Of Speeds | 2 |
| Oem Replacement | No |
| Outlet Dia. | Not Applicable |
| Outlet Height | 1 1/2" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 4 3/4" |
| Overall Depth | 13" |
| Overall Height | 4" |
| Overall Width | 4 1/4" |
| Phase | 1 |
| Replacement For | J238-1344 |
| Rotation | CW |
| Rpm | 3000 RPM |
| Speed | 3000 RPM |
| Thermal Overload Protection | Yes |
| Ul | Yes |
| Voltage | 120V |
| Wheel Dia. | 3 1/8" |
| Wheel Material | Plastic |
| Wheel Type | Forward Curved |
| Wheel Width | 3 3/4" |
| With Flange | No |
Shipping Info:
| Ship weight (kg) | 2.5 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 10.8 |
| Country of Origin | US |
