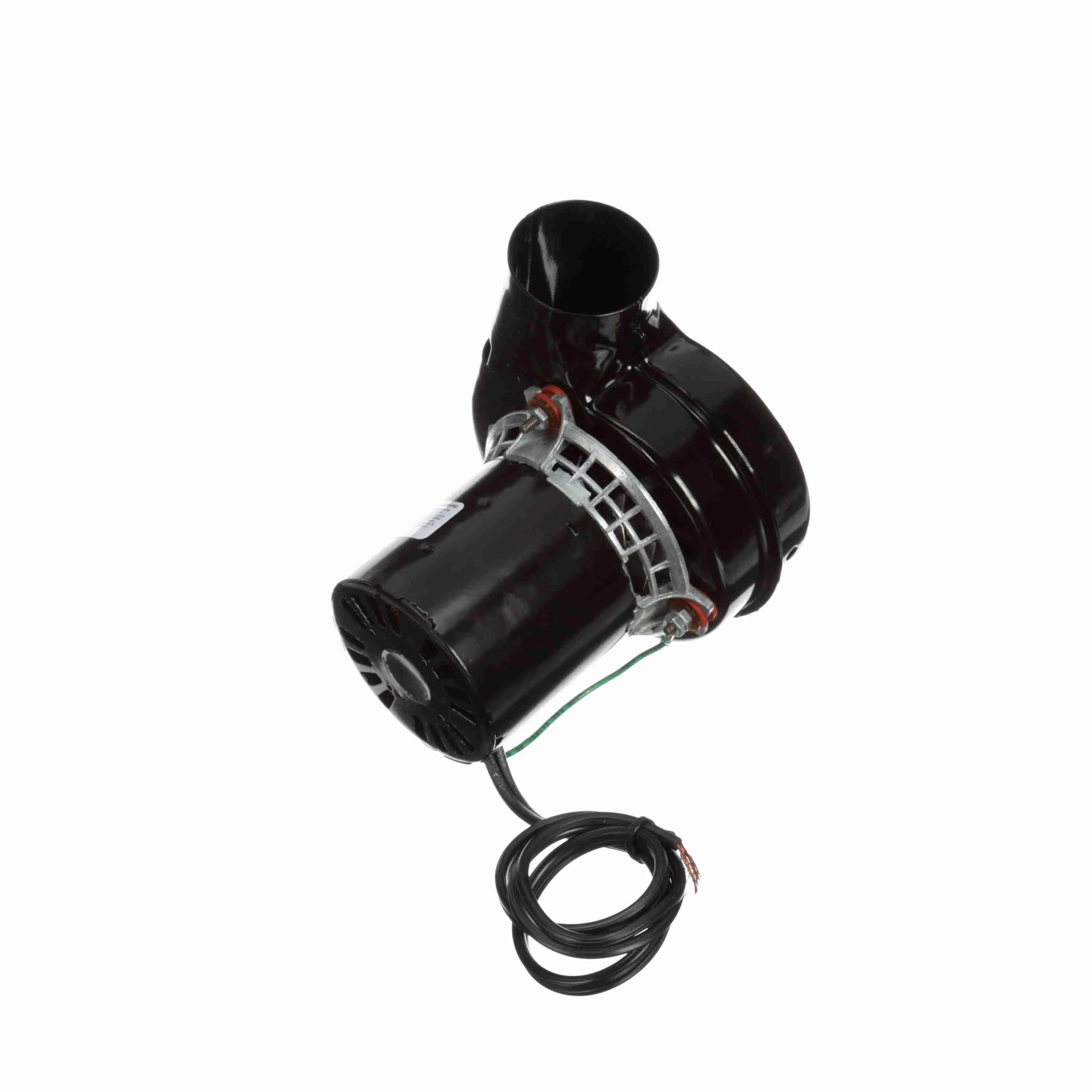

FASCO A081 Round Outlet Shaded Pole OEM Replacement Draft Inducer Blower, 230 Volt
Item: CJ2XYPModel: A081Cross Ref: 45KC34
7 In Stock
Ships within 2 days via
10.00% off
€340.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Blower |
| Airflow @ 0.000 In Sp | 80 CFM |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 0.45A |
| Application | Furnaces |
| Bearing Type | Ball |
| Blower Conduit Box | No |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Round |
| Blower Wheel Diameter | 3 13/16" |
| Blower Wheel Width | 1 7/8" |
| Compatible With Brand | HWC, Johnson Furnace, Magic Chef |
| Csa | Yes |
| Drive Type | Direct |
| Electrical Connection | Wire Leads |
| Frequency | 50/60 Hz |
| Housing Color | Black |
| Housing Finish | Paint |
| Housing Material | Steel |
| Inlet Dia. | 3 7/8" |
| Insulation Class | Class B |
| Lead Length | 24" |
| Max. Static Pressure | Not Applicable |
| Maximum Fan Speed | 3000 RPM |
| Maximum Inlet Air Temperature | 104°F |
| Maximum Motor Speed | 3000 RPM |
| Motor Enclosure | Open |
| Motor Enclosure Design | Open |
| Motor Insulation | Class B |
| Motor Type | Shaded Pole |
| Mounting Orientation | Horizontal |
| Mounting Position | Shaft Horizontal |
| Nameplate Voltage | 230V AC |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | Yes |
| Outlet Dia. | 2 1/8" |
| Outlet Height | Not Applicable |
| Outlet Shape | Round |
| Outlet Width | Not Applicable |
| Overall Depth | 6 3/8" |
| Overall Height | 5 7/8" |
| Overall Width | 6 3/8" |
| Phase | 1 |
| Replacement For Manufacturer Model No. | 322P859, 35035B001, 35HWC181, 36HW, 36HWC18A, 36HWC241, 36HWC24A, 48HW, 48HWC181, 48HWC18A, 48HWC241, 48HWC24A, 60HW, 60HWC181, 60HWC18A, 60HWC241, 60HWC301, 60HWC30A, 60HWCC24A, 66HW, 66HWC181, 66HWC18A, 66HWC241, 66HWC24A, 66HWC301, DE3L038 |
| Rpm | 3000 RPM |
| Speed | 3000 RPM |
| Thermal Overload Protection | Auto |
| Ul | Yes |
| Voltage | 230V |
| Wheel Dia. | 3 3/4" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| With Flange | No |
Shipping Info:
| Ship weight (kg) | 2.21 |
| Ship height (cm) | 14.92 |
| Ship length (cm) | 16.19 |
| Ship width (cm) | 16.19 |
| Country of Origin | US |
