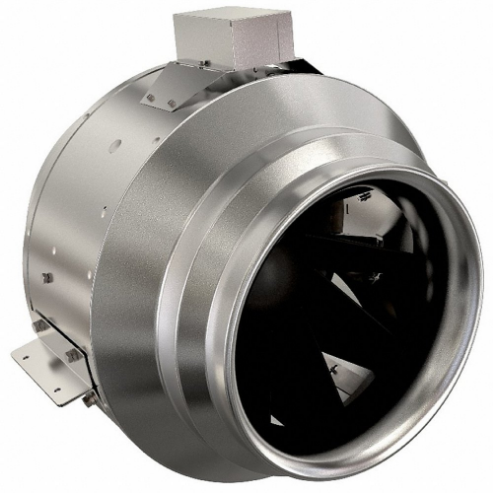

FANTECH FKD 18XL 40024 Mixed Flow Fan, 18 Inch Duct, With Metal Housing, 6236 cfm, 230-460V, 3 Phase
Get it by Friday, Dec 19
10.00% off
€3,278.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mixed Flow Duct Fan |
| Airflow @ 0.000 In Sp | 5463 CFM |
| Application | General Purpose |
| Bearing Type | Sealed Ball |
| Cfm @ 0.000-in. Sp | 6236 CFM |
| Cfm @ 0.125-in. Sp | 6115 CFM |
| Cfm @ 0.250-in. Sp | 5995 CFM |
| Cfm @ 0.375-in. Sp | 5874 CFM |
| Cfm @ 0.500-in. Sp | 5754 CFM |
| Cfm @ 0.750-in. Sp | 5500 CFM |
| Cfm @ 1.000-in. Sp | 5199 CFM |
| Cfm @ Duct | 6236 |
| Duct Dia. | 18" |
| Fits Duct Dia. | 18" |
| For Fan Type | Centrifugal Duct Fan |
| High-efficiency Motor | No |
| Housing Dia. | 22-1/4" |
| Housing Dia. | 22 1/4" |
| Housing Finish | Galvanized , Steel |
| Includes | Mounting Brackets |
| Inlet And Outlet Dia. | 18" |
| Length | 27 1/4" |
| Max. Amps | 3.75A |
| Max. Inlet Temp. | 140°F |
| Max. Wattage | 2208 W |
| Motor Enclosure Design | Totally Enclosed |
| Motor Ip Rating | IP54 |
| Motor Speed | 1700 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 230/460V AC |
| Number Of Speeds | 1 |
| Overall Dia. | 26" |
| Overall Height | 27 1/4" |
| Overall Width | 26" |
| Phase | 3 |
| Speed Control | Yes |
| Speed Control Included | Yes |
| Voltage | 430V |
Shipping Info:
| Ship weight (kg) | 68.4 |
| Ship height (cm) | 66.04 |
| Ship length (cm) | 69.22 |
| Ship width (cm) | 66.04 |
| HS code | 8414596060 |
| Country of Origin | DE |
Product Variants
| Product | Model | Phase | Airflow @ 0.000 In Sp | Motor Ip Rating | Motor Speed | Duct Dia. | Motor Output Power | Bearing Type | Inlet And Outlet Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FKD12XL | 1 | 2016 CFM | IP54 | 1700 RPM | - | - | Ball | 11 7/8" | €1,265.03 | |
 |
FKD 8XL | 1 | 836 CFM | IP44 | - | 8" | 318 W | Sealed Ball | 8" | €737.60 | |
 |
FKD 10 | 1 | 910 CFM | IP44 | - | 10" | 305 W | Sealed Ball | 10" | €833.82 | |
 |
FKD 10XL | 1 | 1266 CFM | IP44 | 2850 RPM | - | - | Sealed Ball | 10" | €971.69 | |
 |
FKD 14 | 1 | 2156 CFM | IP54 | 1700 RPM | 14" | 444 W | Sealed Ball | 14" | €1,376.02 | |
 |
FKD 14XL | 1 | 2619 CFM | IP54 | 1550 RPM | 14" | 716 W | Sealed Ball | 14" | €2,127.02 | |
 |
FKD 16XL | 1 | 4274 CFM | IP54 | 1600 RPM | 16" | - | Sealed Ball | 16" | €2,894.28 |
