EZO F605HZZP6MC3SRL Miniature Ball Bearing, 605, 5 mm Bore, 16 mm Flange Dia, Dbl Shield, 14 mm OD
Get it by Friday, Feb 27
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€9.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Miniature Ball Bearing |
| Bore Dia. | 5 mm |
| Cage Material | Steel |
| Cage Type | Crown, Ribbon |
| Closure | Double Shielded |
| Dynamic Load Capacity | 1330N |
| Fillet Radius | 0.2 mm |
| Finish | Chrome Plated |
| Flange Dia. | 0.63" |
| Flange Thickness | 1 mm |
| Flange Type | Flanged |
| Includes Retaining Ring | No |
| Max. Speed | 560112 RPM |
| Max. Temp. | 302°F |
| Min. Temp. | -40°F |
| Outer Ring Width | 5 mm |
| Outside Dia. | 14 mm |
| Retaining Ring Dia. | Not Applicable |
| Retaining Ring Groove | No |
| Retaining Ring Thickness | Not Applicable |
| Ring Material | Stainless Steel |
| Shield Material | Steel |
| Static Load Capacity | 507N |
| System Of Measurement | Metric |
Product Variants
| Product | Model | Closure | Bore Dia. | Outer Ring Width | Ring Material | Outside Dia. | Cage Type | Flange Thickness | Fillet Radius | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFRW168ZZA3MC3SRL | Double Shielded | 1/4" | 1/8" | Stainless Steel | 3/8" | Crown | 0.036" | 0.0039" | €12.27 | |
|
SFR168ZZA3MC3SRL | Double Shielded | 1/4" | 1/8" | Stainless Steel | 3/8" | Crown | 0.036" | 0.0039" | €9.96 | |
 |

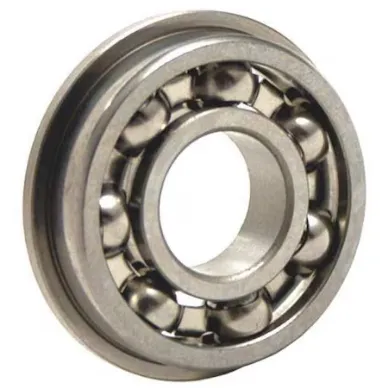

SFR168 A3MC3AF2 | Open | 1/4" | 1/8" | Stainless Steel | 3/8" | Crown | 0.023" | 0.0039" | €10.03 | |
|
SFRW1810ZZA3MC3SRL | Double Shielded | 0.312" | 0.156" | Stainless Steel | 1/2" | Crown | 0.031" | 0.006" | €12.09 | |
|
SFR1810 A3MC3AF2 | Open | 0.312" | 0.156" | Stainless Steel | 1/2" | Crown | 0.031" | 0.0059" | €9.66 | |
|
SFRW188ZZA3MC3SRL | Double Shielded | 1/4" | 1/8" | Stainless Steel | 1/2" | Ribbon | 0.045" | 0.006" | €12.31 | |
 |
SFR188ZZA3MC3SRL | Double Shielded | 1/4" | 0.187" | Stainless Steel | 1/2" | Ribbon | 0.045" | 0.0059" | €10.17 |
