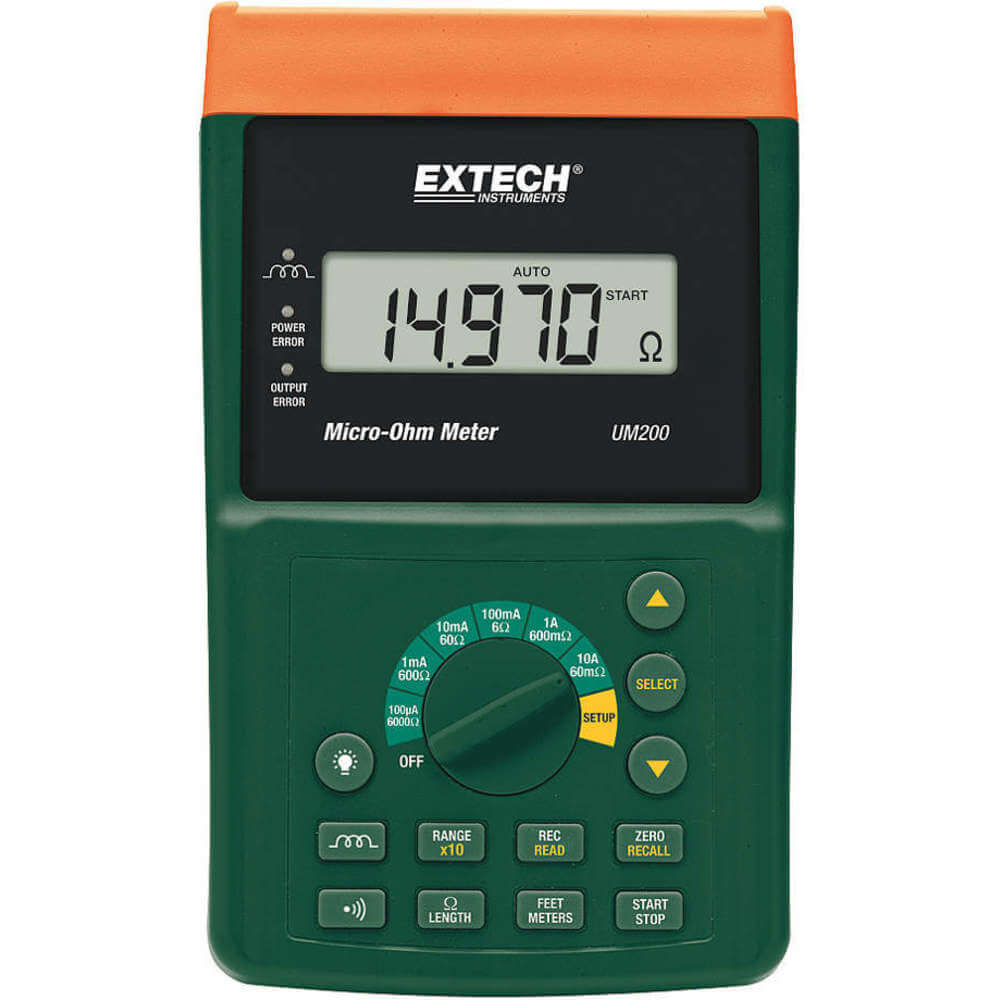

EXTECH UM200 Micro Ohm Meter 60m Ohms-6000 Ohms
Item: AA6GHZModel: UM200Cross Ref: 13X131
7 In Stock
Ships within 2 days via
10.00% off
€3,223.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Micro Ohm Meter |
| Accuracy | -0.25% to +0.25% |
| Alert Type | Digital Display |
| Asset Tagging | No |
| Auto Ranging | Yes |
| Battery Chemistry | Lithium |
| Bluetooth Compatible | No |
| Calibration Certificate | Not Included |
| Cat Safety Ratingpim | Not Rated |
| Communication Protocol | Usb |
| Counts | 60000 |
| Data Storage | 3000 Measurements |
| Data Storage | 3000 |
| Display | LCD |
| Display Screen Type | LCD With Backlight |
| Display Type | Digital |
| Dustproof | No |
| Features | 6 Ranges With 3 Sub-Ranges In Each Current Range, Auto Or Manual Ranging |
| Includes | 4-Wire Cables With Kelvin Clips, Ac Adapter/Charger, Carrying Case, Rechargeable Li-Polymer Battery, USB Cable |
| Includes Batteries | Yes |
| Includes Software | Yes |
| Insulation Resistance Resolution | 1 µ ohms to 100 milli ohms |
| Interface | USB |
| Low Resistance Range | 60 µ ohms |
| Manufacturer Warranty Length | 2 yrs. Limited |
| Maximum Ground Resistance Measurement | 6 K ohms |
| Maximum Insulation Resistance | 6 K ohms |
| Maximum Operating Temperature | 122°F |
| Minimum Ground Resistance Measurement | 60 milli ohms |
| Minimum Insulation Resistance | 60 µ ohms |
| Minimum Operating Temperature | 32°F |
| Number Of Batteries Required | 1 |
| Number Of Digits | 5 |
| Number Of Records Stored | 3000 |
| Output Amps | 100 µA to 10A |
| Power Source | Battery |
| Remote Control Compatible | No |
| Resistance Accuracy | +/-0.25% |
| Resistance Range | 60m Ohms to 6000 Ohms |
| Resolution | 1 µ ohms to 100 µ ohms |
| Test Current | 100 µA to 10A |
| Tester Type | Micro Ohmmeter |
| Testing Functions | Resistive And Inductive Materials |
| Tool Height | 10.1" |
| Tool Length | 2.2" |
| Tool Width | 6.1" |
| Usb Data Download Included | Yes |
| Waterproof | No |
Shipping Info:
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 29.97 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 20.07 |
| HS code | 9030330040 |
| Country of Origin | TW |
