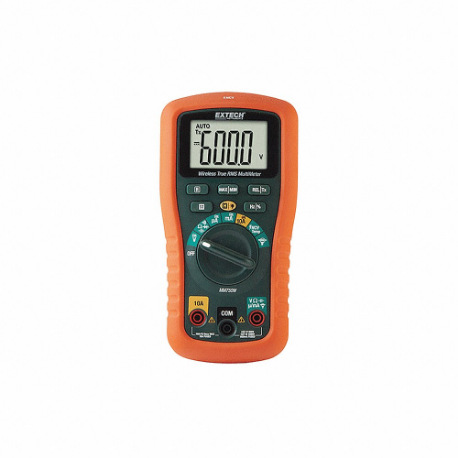

EXTECH MM750W Digital Multimeter, Cat Iii 1000V/Cat Iv 600V, Trms, 1000 V

Item: CP4VPCModel: MM750WCross Ref: 55CH79

Check Availability

In Stock

Get it by Thursday, Dec 18

Request a Quote

Payment

Delivery

Product Specifications:

Item	Digital Multimeter
Ac Current Measurement Resolution	0.1 µA
Ac Response	TRMS
Ac Response Calculation	Trms
Ac Voltage Measurement Resolution	0.1V AC
Audible Continuity	Yes
Auto Power Off	Yes
Auto Ranging	Yes
Bar Graph Included	No
Basic Ac Current Accuracy	-0.15% to +0.15%
Basic Ac Voltage Accuracy	±0.6%
Basic Dc Accuracy	± 0.12%
Basic Dc Current Accuracy	+/-0.12%
Basic Dc Voltage Accuracy	±0.60%
Battery Access	Yes
Battery Chemistry	Alkaline
Battery Included	Yes
Battery Size	9V
Bluetooth Compatibility	Yes
Calibration Certificate	No
Capacitance Measurement Accuracy	-2% To +2%
Capacitance Measurement Resolution	0.001 nF
Computer Interface Connection Type	Bluetooth
Data Hold	Yes
Data Logging	Yes
Data Storage	Yes
Dc Current Measurement Resolution	0.1 µA
Dc Voltage Measurement Resolution	0.1V
Depth	2 1/5"
Diode Test	Yes
Display Type	Backlit LCD
Dustproof	No
Duty Cycle	Yes
Frequency Measurement Accuracy	±2%
Frequency Measurement Resolution	0.001 MHz
Includes	9V Battery, General Purpose Type K Bead Wire Temperature Probe, Soft Case, Test Leads, Wireless Datalogging Module Dat 12
Instrument Counts	50000
Instrument Safety Rating	CAT III 1000V, CAT IV 600V
Intrinsically Safe	No
Manufacturers Warranty Length	1 yr.
Max. Ac Amps	10A
Max. Dc Amps	10A
Maximum Ac Voltage Measurement	1000V
Maximum Capacitance Measurement	99.99 mF
Maximum Dc Current Measurement	10A
Maximum Dc Voltage Measurement	1000V
Maximum Frequency Measurement	55 MHz
Maximum Resistance Measurement	60 M ohms
Maximum Temperature Measurement	1832°F
Min-max-avg Button Included	Yes
Min./max. Memory	Yes
Minimum Capacitance Measurement	9.999 nF
Minimum Frequency Measurement	9.999 Hz
Minimum Resistance Measurement	0.1 ohms
Minimum Temperature Measurement	-40°F
Multimeter Style	Full Size
Overall Height	7 2/5"
Parameters Measured	AC Voltage, DC Voltage, AC Current, DC Current, Capacitance, Frequency, Resistance, Temperature (K)
Peak Hold	Yes
Removable Screen	No
Resistance Measurement Accuracy	-0.06% to +0.06%
Resistance Measurement Resolution	0.1 ohms
Temperature Measurement Accuracy	±2%
Temperature Measurement Resolution	1°F
Thermal Imaging	No
Waterproof	No

Shipping Info:

Ship weight (kg)	0.41
Ship height (cm)	18.8
Ship length (cm)	5.59
Ship width (cm)	9.65
Country of Origin	CN

Product Variants

Model	Multimeter Style	Instrument Safety Rating	Calibration Certificate	Maximum Ac Voltage Measurement	Maximum Dc Voltage Measurement	Maximum Dc Current Measurement	Instrument Counts	Maximum Ac Current Measurement	Price
EX470A	Full Size	CAT III 600V	No	600V	600V	10A	4000	10A	€286.07
EX503	Full Size	Cat Iii 1000V, Cat Iv 600V	No	1000V	1000V	10A	4000	-	-	RFQ
EX310	Compact	Cat Ii 1000V, Cat Iii 600V	No	600V	600V	10A	2000	-	€72.85
EX330	Compact	Cat Ii 1000V, Cat Iii 600V	No	600V	600V	10A	4000	-	€117.48
DM220	Compact, Pocket	Cat Iii 1000V, Cat Iv 600V	No	600V	600V	200 mA	4000	200 mA	€90.99
EX503-NIST	Full Size	Cat Iii 1000V, Cat Iv 600V	NIST	1000V	1000V	10A	4000	-	-	RFQ
EX530	Full Size	Cat Iii 1000V, Cat Iv 600V	No	1000V	1000V	20A	40000	-	-	RFQ
