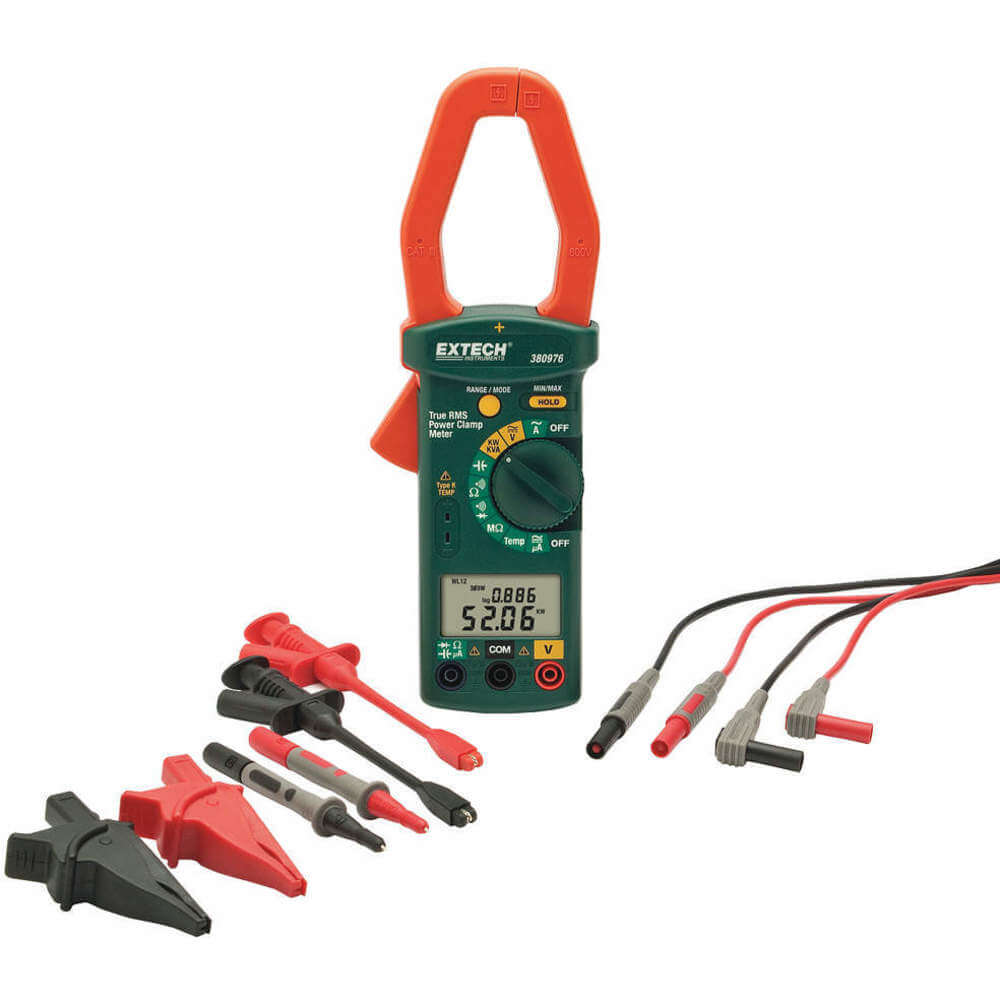

EXTECH 380976-K Clamp-on Power Meter 600kw 1000a
Item: AA6YGQModel: 380976-KCross Ref: 15E578
7 In Stock
Ships within 2 days via
10.00% off
€519.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Clamp-On Power Meter |
| Ac Current Measurement Resolution | 10 mA |
| Ac Voltage Measurement Resolution | 0.1 mV |
| Basic Ac Current Accuracy | -2% to +2% |
| Basic Ac Voltage Accuracy | -1% to +1% |
| Basic Dc Voltage Accuracy | -1% to +1% |
| Batteries Included | Yes |
| Battery Size | 9V |
| Calibration Frequency | 60 Hz |
| Capacitance Measurement Accuracy | -1.5% to +1.5% |
| Capacitance Measurement Resolution | 1 nF |
| Counts | 9999 |
| Current Accuracy | 2% |
| Dc Current Measurement Resolution | 10 Na |
| Dc Voltage Measurement Resolution | 0.1 mV |
| Display | Dual LCD |
| Display Type | Dual Lcd |
| Frequency Measurement Accuracy | -0.5% to +0.5% |
| Frequency Measurement Resolution | 0.1 Hz |
| Includes | (2) Cat Iv 72 Test Leads, (2) Extra-Large Alligator Clips, (2) Modular Test Probe Handles, (2) Plunger Activated Jaw Clips, Carrying Case, Type K Probe |
| Jaw Opening | 1 3/5" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ac Amps | 1000 |
| Max. Ac Amps | 1000A |
| Max. Ac Voltage | 600V |
| Max. Ac Volts | 600 |
| Max. Ac Volts | 600V AC |
| Max. Dc Volts | 600 |
| Max. Dc Volts | 600V |
| Max. Resistance | 100 M ohms |
| Max. Va | 600kVA |
| Max. Va | 600 kVA |
| Max. Watts | 600kW |
| Max. Watts | 600 kW |
| Maximum Capacitance Measurement | 7000 µF |
| Maximum Frequency Measurement | 1 kHz |
| Maximum Operating Temperature | 1000°F |
| Maximum Storage Temperature | 140°F |
| Minimum Ac Current Measurement | 10 mA |
| Minimum Ac Voltage Measurement | 0.1 mV |
| Minimum Capacitance Measurement | 1 nF |
| Minimum Dc Voltage Measurement | 0.1 mV |
| Minimum Frequency Measurement | 40 Hz |
| Minimum Operating Temperature | -58°F |
| Minimum Resistance Measurement | 1 K ohms |
| Minimum Storage Temperature | 14°F |
| Overall Height | 9" |
| Overall Width | 1 3/5" |
| Parameters Measured | AC Voltage, DC Voltage, AC Current, Capacitance, Frequency, Resistance, Temperature (K) |
| Power Source | 9V |
| Resistance Measurement Accuracy | -5% to +5% |
| Resistance Measurement Resolution | 0.1 ohms |
| Safety Rating | Cat IV |
| Thermometer Type | K Type |
| True Rms | Yes |
| Voltage Accuracy | 1% |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 18.29 |
| HS code | 9030310000 |
| Country of Origin | TW |
Product Details:
- Crest Factor (1.42)
- Max. Resistance (100 M Ohms)
- Special Features: uA Current
