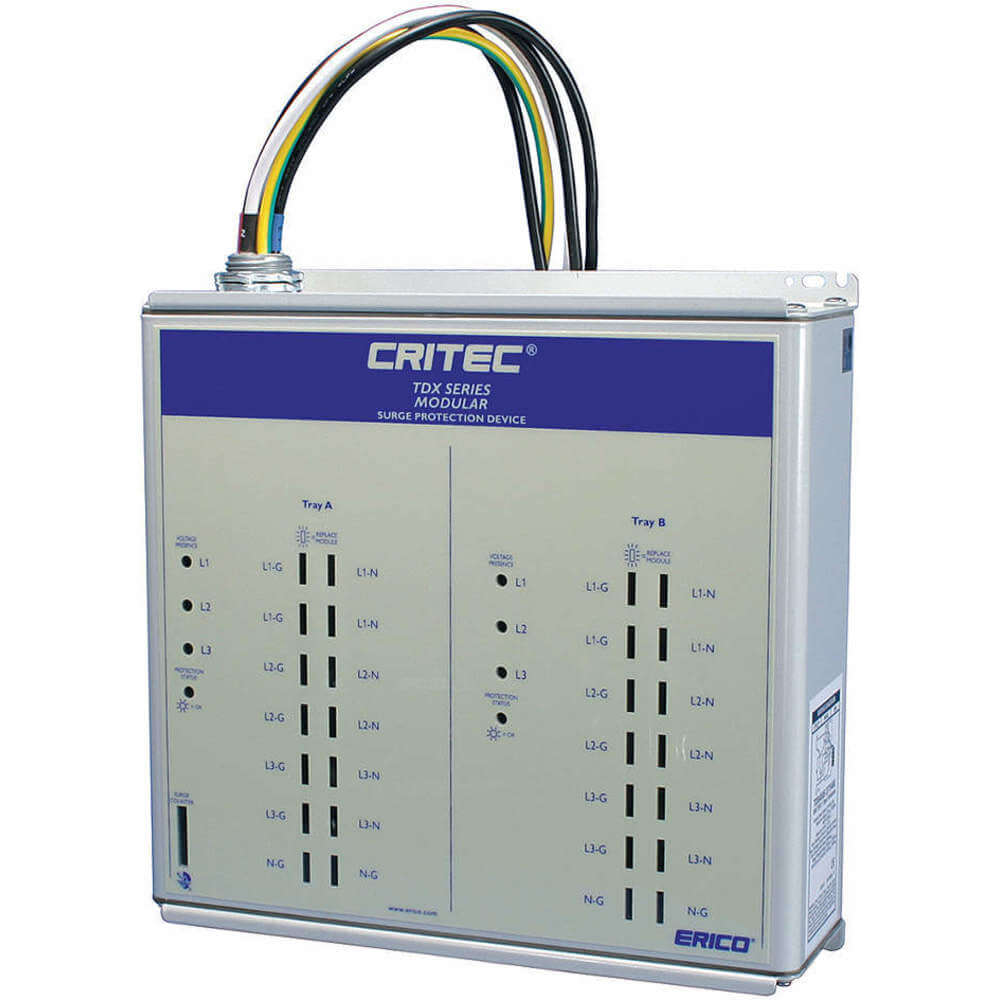

ERICO TDX400S277/480 Tvss Modular 400ka Nema 4 3ph 277/480v
Get it by Thursday, Dec 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€8,132.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Surge Suppressor |
| Amps | 400 kA |
| Basic Material | Metallic |
| Chase Nipple Size | 3/4" |
| Color | Gray |
| Depth | 3.25" |
| Enclosure Material | Metal |
| Enclosure Nema Rating | 1 |
| Enclosure Rating | IP65 |
| Filter Type | Nonfiltering |
| Filtering | No |
| Footnotes | Can Be Installed In A Type 1 Or 2 Location In Accordance With The NEC 2008 |
| Includes | Voltage Free Contact |
| Ip Rating | 20 |
| Length | 10.4" |
| Lightning Impulse Amps | 25 kA |
| Lightning Impulse Current | 25kA |
| Max. Continuing Operating Voltage | 320/550V AC |
| Max. Continuing Operating Voltage | 320 L-N, 550 L-L |
| Max. Operating Temp. | 176°F |
| Max. Surge Current Per Mode | 400 kA |
| Max. Surge Current Per Phase | 400kA |
| Max. Surge Current Per Phase | 400 kA |
| Min. Operating Temp. | -40°F |
| Modes Of Protection | All modes protected |
| Modes Of Protection | L-G, L-L, L-N, N-G |
| Modular | Yes |
| Mounting Style | Chase Nipple, Panel |
| Nominal Discharge Amps | 20 kA |
| Nominal Discharge Current | 160 kA |
| Nominal Discharge Current | 20kA |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Phase | 3 |
| Short Circuit Amps Rating | 200 kA |
| Short Circuit Current Rating | 200kA |
| Standards | Ansi/Ieee, C-Tick, Ce, Iec 61643-1, Ul 1449 Edition 4 Type 1/2 |
| Status Indicator | Audible Alarm, Led Light, Mechanical Flag |
| System Connection | Parallel |
| Type | Modular |
| Ul Spd Type | Type 1/2 |
| Voltage | 277/480V AC Wye |
| Voltage Protection Rating | 1200V (L-N), 1800 (L-L), 1000V (N-G), 1200V (L-G) |
| Width | 10.32" |
| Wire Gauge | 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 44.96 |
| Ship width (cm) | 30.48 |
| HS code | 8536308000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Phase | Voltage | Number Of Poles | Number Of Wires | Voltage Protection Rating | Max. Continuing Operating Voltage | Modes Of Protection | Max. Surge Current Per Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDX400S120/208 | 3 | 120/208V AC Wye | 4 | 5 | 800V (L-N), 1200 (L-L), 700V (N-G), 800V (L-G) | 170/276V AC | L-G, L-L, L-N, N-G | 400 kA | €8,613.04 | |
|
TDX400S120/240 | 1 | 120/240V AC | 3 | 4 | 800V (L-N), 1200 (L-L), 700V (N-G), 800V (L-G) | 170/276V AC | L-G, L-L, L-N, N-G | 400 kA | €6,531.08 |
