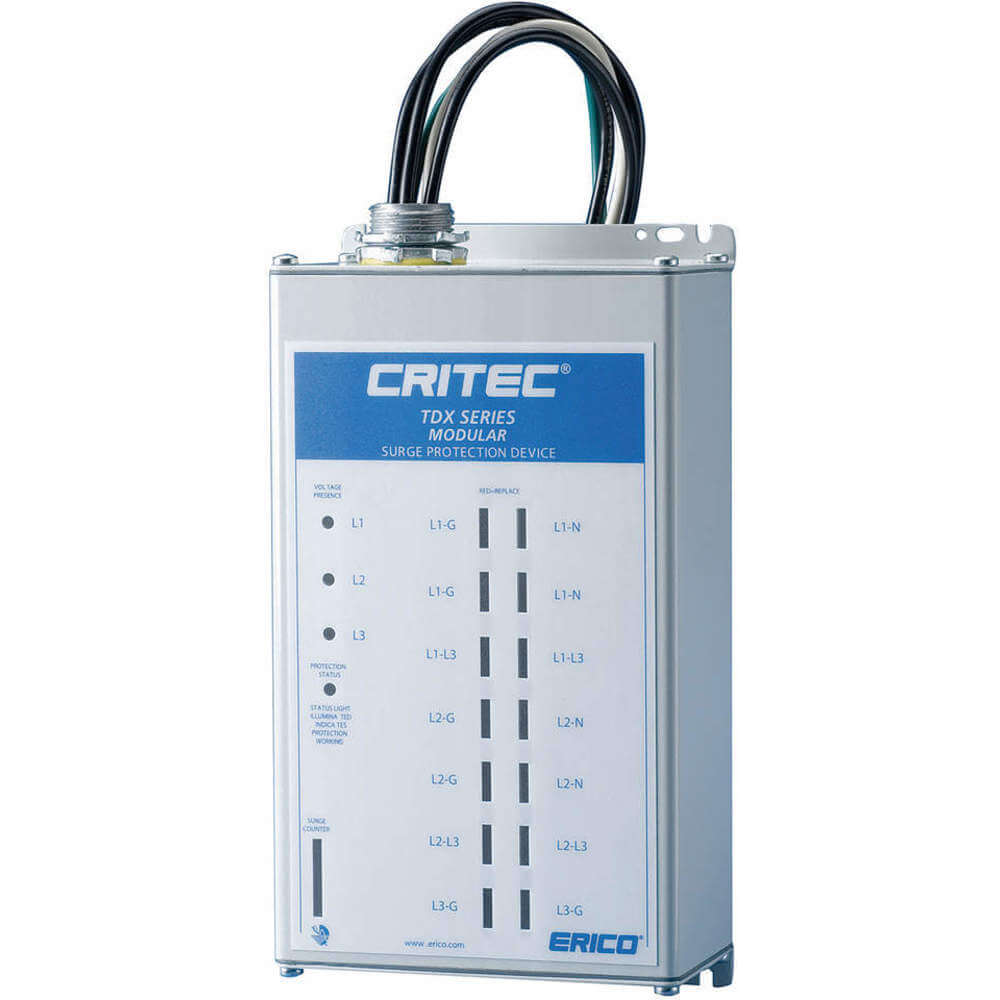

ERICO TDX200S480D Tvss Compact 200ka Nema 4 3ph 480v
Item: AA8KMTModel: TDX200S480DCross Ref: 18K870
7 In Stock
Ships within 2 days via
10.00% off
€4,977.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surge Suppressor |
| Amps | 200 kA |
| Basic Material | Metallic |
| Chase Nipple Size | 3/4" |
| Color | Gray |
| Depth | 3.07" |
| Enclosure Material | Metal |
| Enclosure Nema Rating | 4 |
| Enclosure Rating | IP65 |
| Filter Type | Nonfiltering |
| Filtering | No |
| Footnotes | Can Be Installed In A Type 1 Or 2 Location In Accordance With The NEC 2008 |
| Includes | Voltage Free Contact |
| Ip Rating | 65 |
| Length | 9.45" |
| Lightning Impulse Amps | 20 kA |
| Lightning Impulse Current | 20kA |
| Lightning Impulse Current | 25 kA |
| Max. Continuing Operating Voltage | 610/1220V AC |
| Max. Continuing Operating Voltage | 610 L-N, 1220 L-L |
| Max. Operating Temp. | 176°F |
| Max. Surge Current Per Mode | 200 kA |
| Max. Surge Current Per Phase | 200kA |
| Max. Surge Current Per Phase | 200 kA |
| Min. Operating Temp. | -40°F |
| Modes Of Protection | All modes protected |
| Modes Of Protection | L-G, L-L |
| Modular | Yes |
| Mounting Style | Chase Nipple, Panel |
| Nominal Discharge Amps | 20 kA |
| Nominal Discharge Current | 20kA |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 3 |
| Short Circuit Amps Rating | 200 kA |
| Short Circuit Current Rating | 200kA |
| Standards | Ansi/Ieee, C-Tick, Ce, Iec 61643-1, Ul 1449 Edition 3 Type 1/2 |
| Status Indicator | Audible Alarm, Led Light, Mechanical Flag |
| System Connection | Parallel |
| Type | Modular |
| Ul Spd Type | Type 1/2 |
| Voltage | 480V AC |
| Voltage Protection Rating | 1800V |
| Voltage Protection Rating | 1800 (L-L), 1800V (L-G) |
| Width | 3.31" |
| Wire Gauge | 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 40.13 |
| Ship width (cm) | 30.48 |
| HS code | 8536308000 |
| Country of Origin | CN |
Product Variants
| Model | Phase | Voltage | Number Of Poles | Number Of Wires | Modes Of Protection | Voltage Protection Rating | Max. Continuing Operating Voltage | Lightning Impulse Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

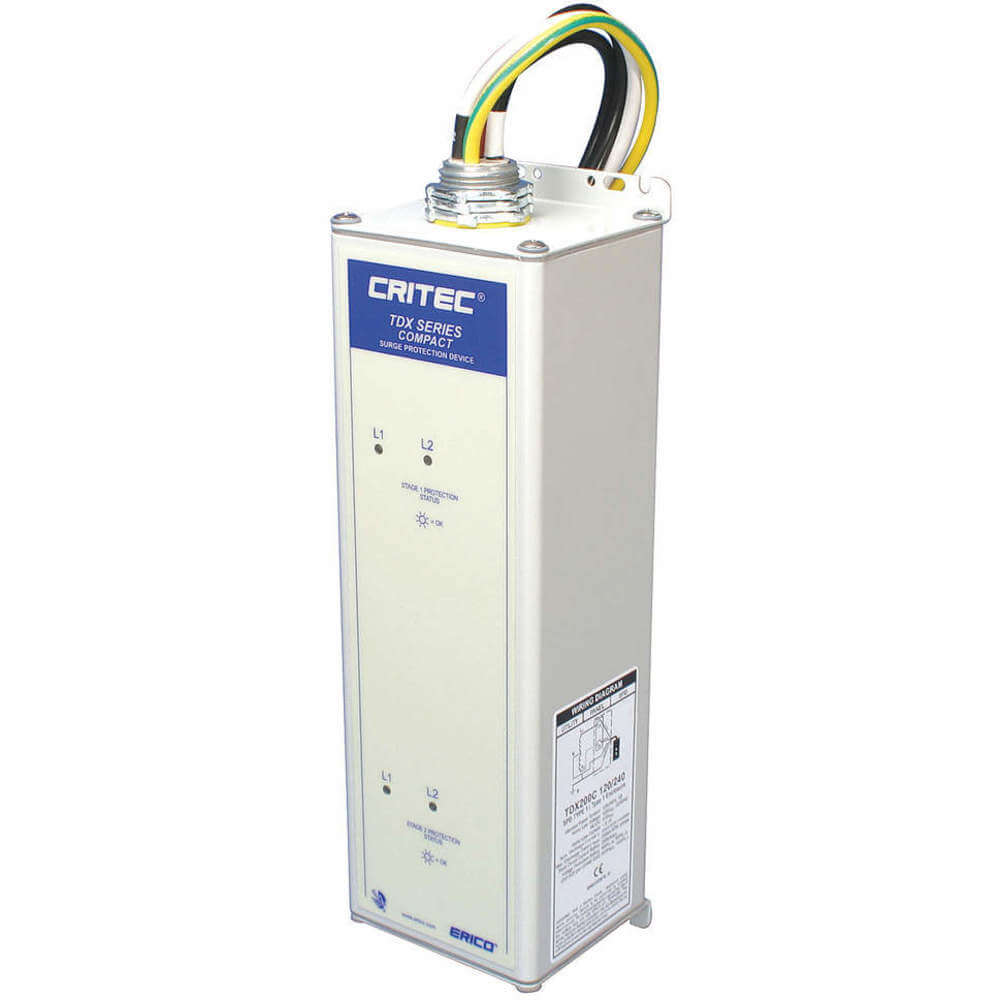

| TDX200C120/208 | 3 | 120/208V AC Wye | 4 | 5 | L-G, L-L, L-N, N-G | 600V (L-N), 1000 (L-L), 600V (N-G), 600V (L-G) (Modular) | 170/276V AC | 12 kA | €2,762.86 | |
| TDX200C120/240 | 1 | 120/240V AC | 3 | 4 | L-G, L-L, L-N, N-G | 600V (L-N), 1000 (L-L), 600V (N-G), 600V (L-G) (Modular) | 170/276V AC | 25 kA | €2,248.40 | |
| TDX200C277/480 | 3 | 277/480V AC Wye | 4 | 5 | L-G, L-L, L-N, N-G | 1000V (L-N), 1200V (L-G, N-G), 1800V (L-L) | 320/550V AC | 25 kA | €2,857.41 | |
| TDX200S120/208 | 3 | 120/208V AC Wye | 4 | 5 | L-G, L-L, L-N, N-G | 600V (L-N), 1000 (L-L), 600V (N-G), 600V (L-G) (Modular) | 170/276V AC | 20 kA | €5,351.44 | |
| TDX200S120/240 | 1 | 120/240V AC | 3 | 4 | L-G, L-L, L-N, N-G | 600V (L-N), 1000 (L-L), 600V (N-G), 600V (L-G) (Modular) | 170/276V AC | 20 kA | €4,467.90 | |
| TDX200S277/480 | 3 | 277/480V AC Wye | 4 | 5 | L-G, L-L, L-N, N-G | 1000V (L-N), 1200V (L-G, N-G), 1800V (L-L) | 320/550V AC | 20 kA | €5,168.54 |
