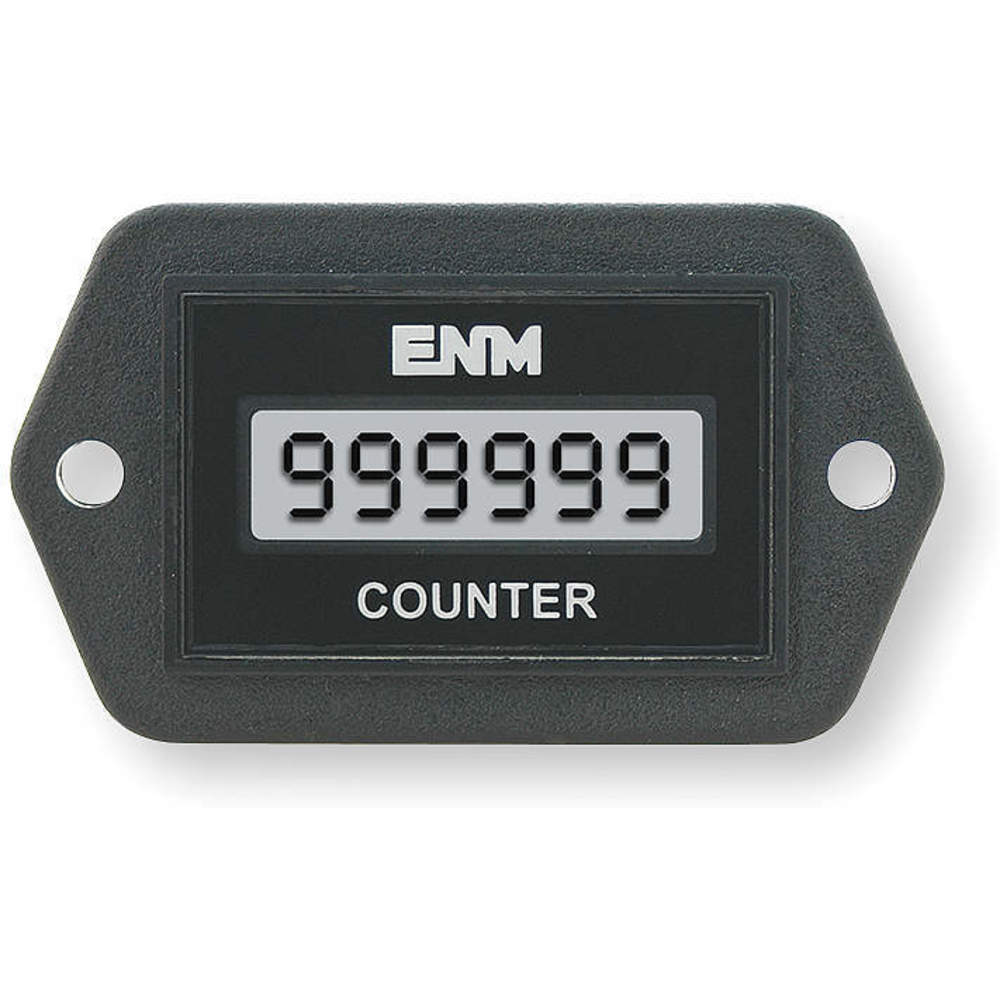

ENM C1121BB Counter Lcd 6 Digits 4.5 To 28 Vdc
Item: AC2YWHModel: C1121BBCross Ref: 2PAT7
7 In Stock
Ships within 2 days via
10.00% off
€29.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Counter |
| Accuracy | -0.01% to +0.01% |
| Character Height | 0.276" |
| Connector Type | Tabs |
| Counts Per Second | 50 |
| Counts/second | 50 cPS |
| Cutout Height | 1 1/2" |
| Cutout Width | 1" |
| Depth | 0.82" |
| Digit Color | Green, Yellow |
| Digit Height - Maximum | 7/25" |
| Dim. | 1" x 1 1/2" |
| Display Type | LCD |
| Fits | 1.45" x 0.95" Panel Cutout |
| Height | 0.94" |
| Input Signal | 4.5-28V DC |
| Input Voltage | 4.5-28V DC |
| Interface | None |
| Ip Rating | IP67 |
| Length | 0.94" |
| Manufacturers Warranty Length | 1 yr. |
| Min. On/off Pulse | 10 ms |
| Min. On/off Pulse | 10 msec. |
| Mounting Style | Panel |
| Nema Enclosure Rating | NEMA 12, NEMA 4X |
| Number Of Digits | 6 |
| Output | None |
| Output Rating | None |
| Output Rating | Not Rated |
| Overall Depth | 7/8" |
| Overall Height | 1" |
| Overall Width | 1 1/2" |
| Power Rating | 0.1 mW to 0.18 W |
| Power Required | 3 mA |
| Prescaling Range | 1 to 999,999 |
| Preset | No |
| Reset Type | Remote Signal |
| Scaler | No |
| Terminal Connection Type | Tab |
| Type | Electronic |
| Width | 1.42" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 8.64 |
| HS code | 9029108000 |
| Country of Origin | US |
Product Details:
- Special Features: EEPROM Memory with no battery
Product Variants
| Product | Model | Type | Display Type | Number Of Digits | Counts Per Second | Reset Type | Output Rating | Depth | Input Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

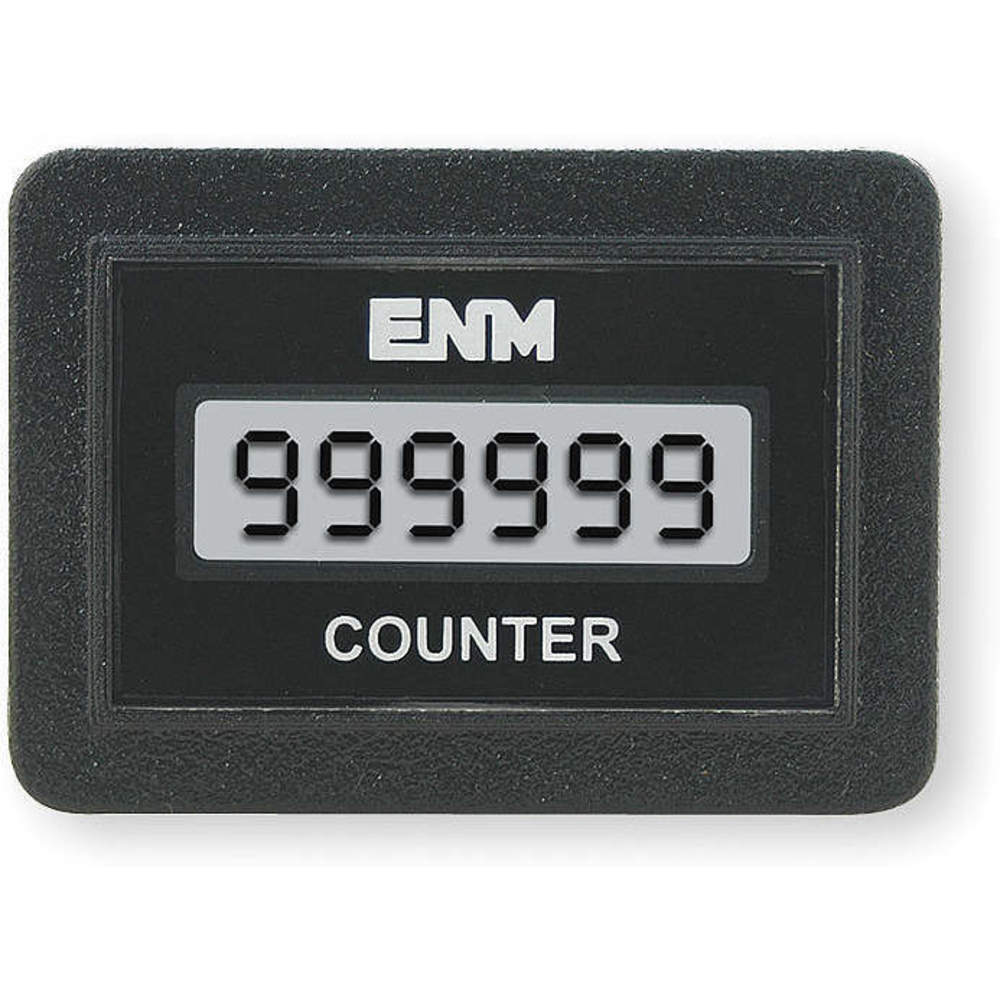

C1141BB | Electronic | LCD | 6 | 50 | Remote Signal | Not Rated | 0.82" | 4.5-28V DC | €32.51 |
