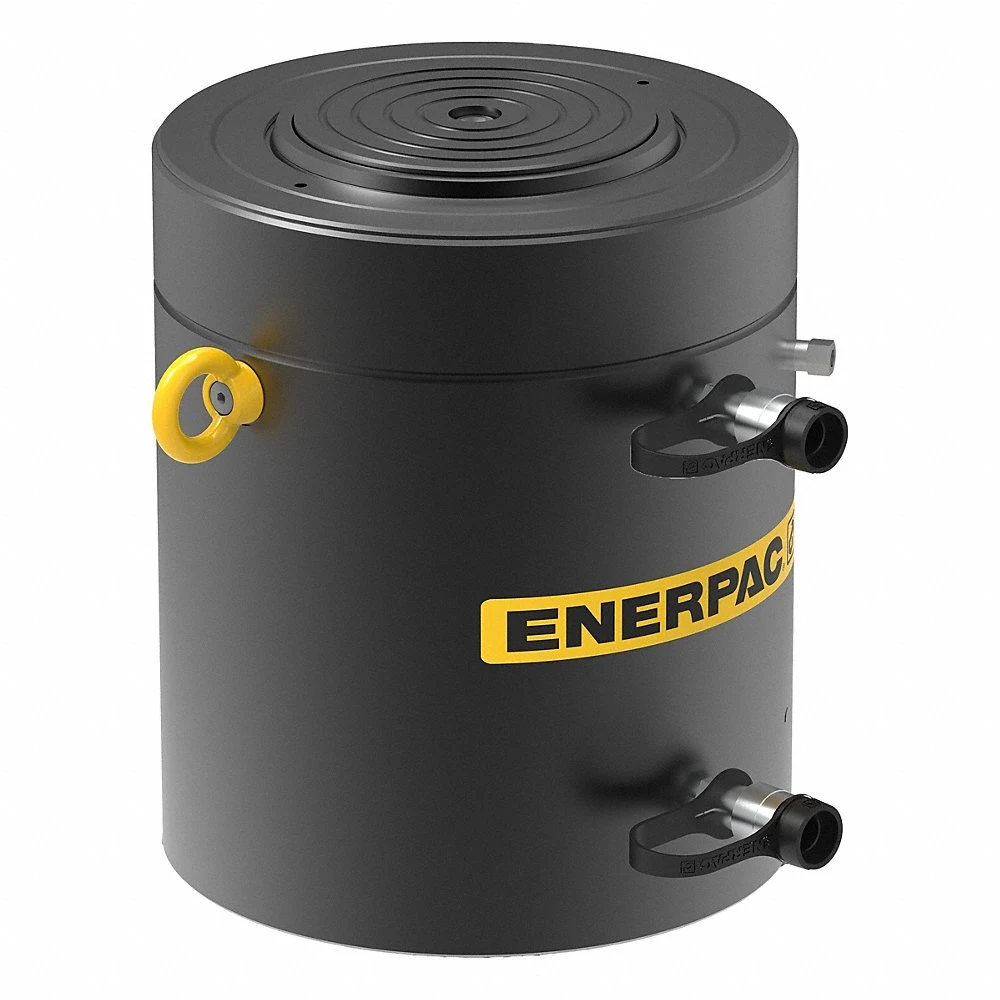

ENERPAC HCR4006 Cylinder, Double Acting, 400 ton Nominal Capacity, 5 15/16 Inch Nominal Stroke Lg, Steel
Get it by Tuesday, Aug 25
13.00% off
€22,899.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Base Mounting Holes Thread V | M16 x 2 |
| Base To Advance Port H | 2.91" |
| Capacity Class | 400 ton. |
| Collapsed Height A | 16.57" |
| Coupler | CR400 Coupler |
| Cylinder Bore Dia. E | 10.63" |
| Cylinder Effective Area Advance | 88.75 sq. in. |
| Cylinder Effective Area Advance (cm2) | 5726 sq. cm |
| Cylinder Effective Area Advance In | 88 3/4" |
| Extended Height B | 22 12/25" |
| Fob | N |
| Material | Steel |
| Max. Cylinder Capacity Advance | 4008 kN |
| Max. Operating Pressure | 10150 psi |
| Oil Capacity Advance | 524.09" |
| Oil Capacity Retract | 176.14" |
| Optional Tilt Saddle Addition To Collapsed Height A1 | 1.89" |
| Optional Tilt Saddle Dia. J1 | 8.27" |
| Outside Dia. D | 13.78" |
| Plunger Dia. F | 8.66" |
| Plunger Type | Solid |
| Return Type | Double Acting, Hydraulic Return |
| Saddle Dia. J1 | 6.26" |
| Saddle Max. Tilt Angle Radius (degrees) | 5° |
| Saddle Protrusion From Plunger K | 4/25" |
| Stroke | 5.91" |
| Surface Treatment | Nitride |
| Tariff Code | 8412218090 |
| Ton | 450 ton. |
| Top To Retract Port | 4.37" |
Shipping Info:
| Ship weight (kg) | 287.18 |
| Ship height (cm) | 55.88 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 40.64 |
| Country of Origin | US |
