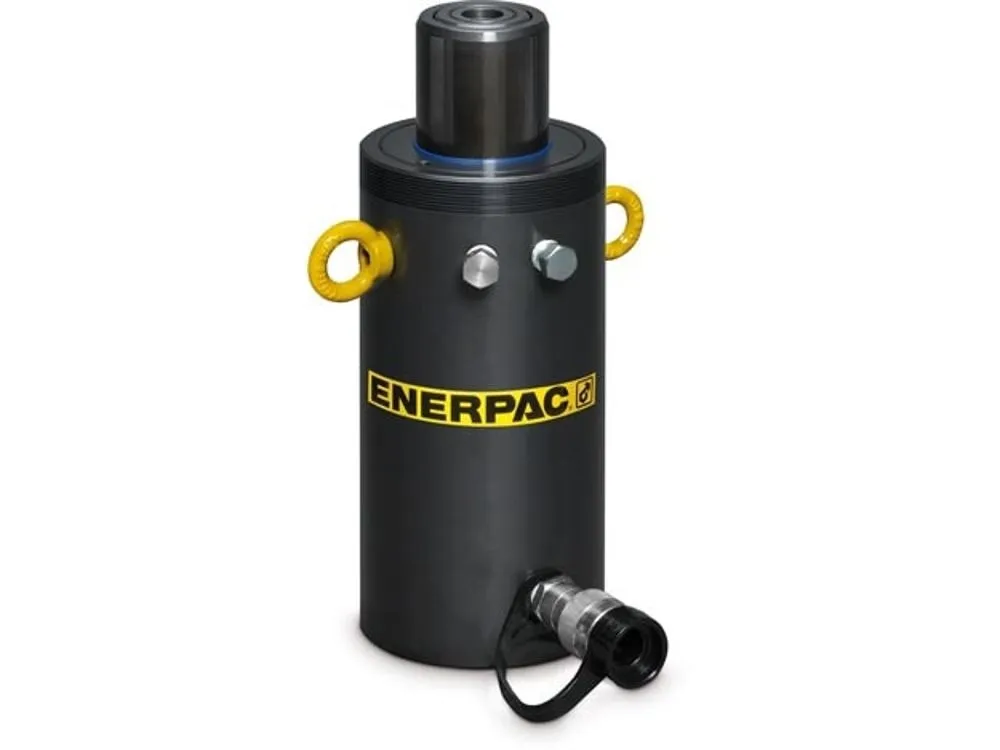

ENERPAC HCG5010 High Tonnage Hydraulic Cylinder, 50 Ton, Single-Acting
Get it by Tuesday, Dec 23
10.00% off
€5,602.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Base Mounting Thread Size | M12 |
| Body Material | Steel |
| Bore Dia. | 3.94" |
| Capacity Class (tonnage) | Class 50 |
| Collapsed Height A | 15.59" |
| Collapsed Height A (mm) | 396 mm |
| Cylinder Effective Area Advance | 12.17 sq. in. , 78.5 sq. cm |
| Cylinder Type | High Cycle |
| Effective Push Area | 12.17 sq. in. |
| Extended Height | 25.4" |
| Includes | (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve |
| Material | Steel |
| Max. Operating Pressure | 10150 psi |
| Max. Pressure | 10150 psi |
| Maximum Cylinder Capacity Advance (kn) | 550 kN |
| Maximum Cylinder Capacity Advance (short Tons) | 62 ton. |
| Nominal Capacity | 50 ton. |
| Nominal Stroke Length | 10" |
| Oil Capacity Advance | 119.82 cu. in. |
| Oil Capacity Advance (cm3) | 1963 cu. cm |
| Oil Capacity Push | 119.82 cu. in. |
| Outside Dia. | 5.12" |
| Plunger Dia. | 2 19/25" |
| Plunger Type | Solid |
| Product Datasheet | enerpac-hcg10010.pdf |
| Retracted Height | 15.59" |
| Return Type | Single-Acting, Load Return |
| Sideload Resistance Of Maximum Capacity (percentage) | 10% |
| Single Acting/double Acting | Single Acting |
| Stroke | 9.84" |
| Stroke (mm) | 250 mm |
| Stroke Length | 9 7/8" |
| Surface Treatment | Nitride |
| Weight | 72 lbs. |
Shipping Info:
| Ship weight (kg) | 32.22 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 60.96 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Stroke Length | Retracted Height | Outside Dia. | Max. Cylinder Capacity Advance | Single Acting/double Acting | Body Material | Plunger Type | Cylinder Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HCG10010 | - | - | - | 1002 kN | - | - | Solid | - | €10,160.95 | |
| HCG10012 | 11 3/4" | 18.86" | 6.89" | 1002 kN | Single Acting | Steel | Solid | High Cycle | €11,758.09 | |
| HCG1002 | 2" | 7.95" | 6.89" | 1002 kN | Single Acting | Steel | Solid | High Cycle | €6,349.12 | |
| HCG1004 | 3 7/8" | 9.92" | 6.89" | 1002 kN | Single Acting | Steel | Solid | High Cycle | €7,754.38 | |
| HCG1006 | 5 7/8" | 11.89" | 6.89" | 1002 kN | Single Acting | Steel | Solid | High Cycle | €9,244.07 | |
| HCG1008 | 7 7/8" | 14.92" | 6.89" | 1002 kN | Single Acting | Steel | Solid | High Cycle | €9,396.64 | |
| HCG15010 | 9 7/8" | 17.6" | 8.46" | 168 ton. | Single Acting | Steel | Solid | High Cycle | €12,488.15 |
