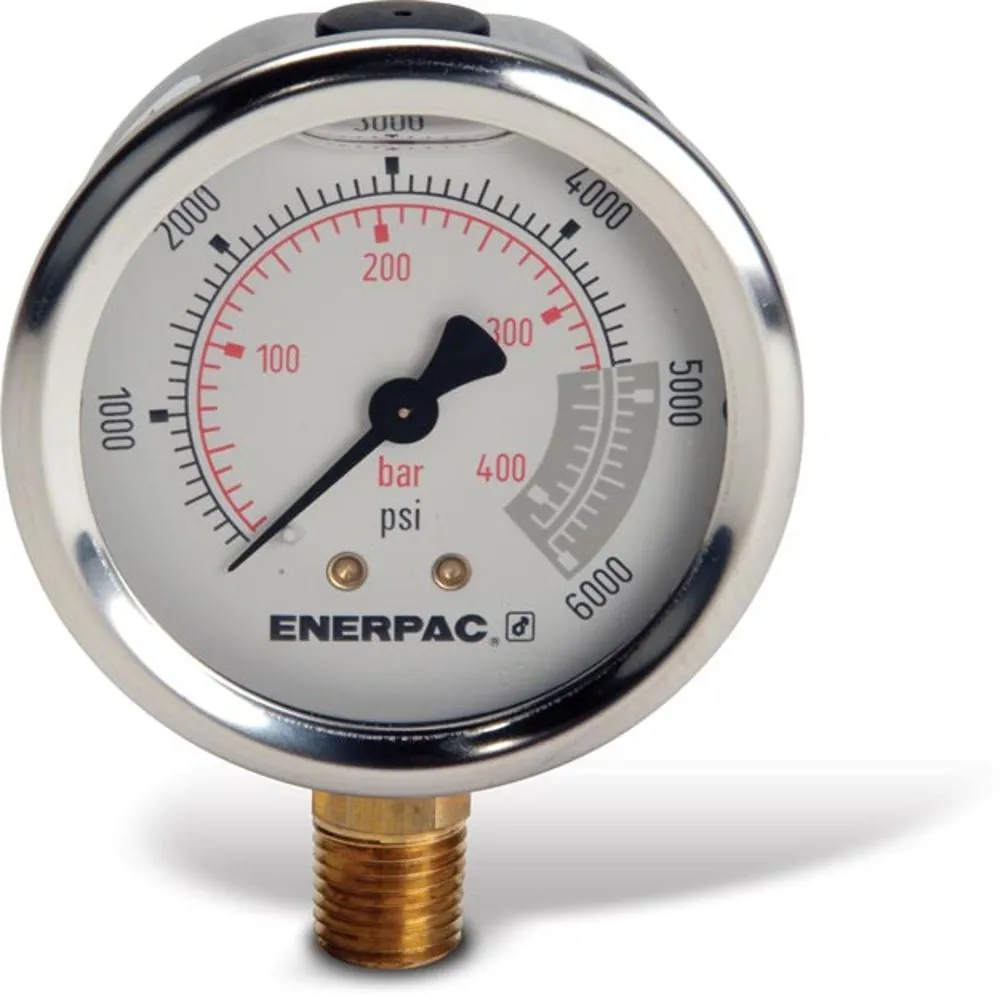

ENERPAC G2517L Hydraulic Pressure Gauge, 2.50 Inch Face, Glycerine Filled, 6000 Max. Psi
Ships within 2 days via
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Application | Hydraulic |
| Basic Gauge Case Material | Stainless Steel |
| Blowout Safety Back | Yes |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Corrosion Resistant |
| Case Depth | 1.46" |
| Case Dia. | 2 1/2" , 2.5" |
| Case Material | Stainless Steel |
| Color | Silver |
| Compatible Brand And Series | Enerpac Fm-25Ng, Enerpac Nv-251 |
| Compatible Gauge Adapter | Enerpaca-3 |
| Compatible Grainger Part No | 30W697, 30X062 |
| Compatible Manufacturer Model No. | FM-25NG, NV-251 |
| Compatible Mfr Model No. | FM-25NG, NV-251 |
| Connection Location | LOWER |
| Dial Color | White |
| Dimensions A | 2 1/2" |
| Dimensions D | 3.31" |
| Field Fillable | No |
| For Use With | Hydraulics |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Lens Material | Glass |
| Gauge Mounting Method | Lower Mount |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Type | Liquid Filled |
| Gauge Wetted Parts | Stainless Steel, Copper |
| Graduations | 100 psi x 10 bar |
| Hazardous Location Rating | Not Rated |
| Hydraulic Pressure Gauge Type | Dial Pressure Gauge For Hydraulic Systems |
| Included | Pressure Equalizing Membrane, Safety Blow Out Disk |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Major Graduation | 1000 psi |
| Max. Operating Pressure | 6000 psi |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pressure | 0 psi to 6000 psi |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Hydraulic Cylinder Pressure Gauge |
| Pressure Type | Pressure |
| Primary Range | 0 psi to 6000 psi |
| Primary Scale Minor Graduations | 100 |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPTF Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPTF |
| Product Datasheet | enerpac-g2517l.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Range | 0 psi to 6000 psi |
| Removable Bezel | No |
| Requires Adapter | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 400 psi |
| Secondary Range | 0 Bar to 400 Bar |
| Secondary Scale Minor Graduations | 10 |
| Secondary Scale Units | Bar |
| Secondary Units | Bar |
| Sensor Material | Copper Alloy |
| Sensor Type | Bourdon Tube |
| Series | G Series |
| Smallest Graduation | 100 psi |
| Socket Material | 303 Stainless Steel |
| Style | Glycerine Filled |
| Thread Dia. | 1/4" |
| Thread Type | NPTF |
| Vibration Resistance | Liquid Filled |
| Wetted Material | Stainless Steel, Copper |
| Wetted Parts Material | 303 Stainless Steel, Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 9026208000 |
| Country of Origin | US |
Product Details:
Enerpac G2517L liquid filled pressure gauge is equipped with glycerin to safeguard the pressure-sensing components against the effects of vibration, abrupt pressure fluctuations and moisture. This inclusion of glycerin ensures the durability and accuracy of the pressure gauge, as it acts as a protective barrier to absorb and dampen any external shocks or disturbances, maintaining its reliability in the aerospace, construction, heavy equipment, automotive and transportation industries.
Features:
- Enerpac G2517L pressure gauge is calibrated in a dual scale, displaying readings in both pounds per square inch (psi) and bar units for easy and convenient pressure measurement.
- Its all pressure-sensing parts of the gauge are sealed and dampened by glycerine ensuring a long life and durability by protecting the sensitive components from external contaminants and vibrations.
- This pressure gauge is equipped with a safety blow-out disk and a pressure-equalising membrane to protect the gauge from overpressure situations and ensure accurate and reliable pressure measurements even in demanding applications.
- It has a maximum working pressure of 6000 psi.
Frequently Asked Questions:
Q. What equipment is recommended to use while operating these gauges for high-cycle applications?
A. The use of gauge snubbers or needle valves is recommended for high-cycle applications or systems with rapid pressure fluctuations. These accessories help to reduce the impact of pressure spikes and provide additional protection to the pressure gauge, enhancing its longevity and performance.
Q. How often should the liquid-filled pressure gauge be checked for accuracy?
A. It is recommended to check the accuracy of the pressure gauge periodically. The frequency of calibration or accuracy verification depends on the specific application and industry requirements.
Q. Can the liquid-filled pressure gauge be installed in any orientation?
A. Yes, the liquid-filled pressure gauge can be installed in various orientations, including vertical, horizontal, or at any angle. The liquid filling remains inside the gauge and does not affect its performance regardless of its position.
Documentation:
Product Variants
| Product | Model | Process Connection Size | Nominal Dial Size | Process Connection Location | Lens Material | Pressure | Max. Operating Pressure | Major Graduation | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2536L | 1/4" | 2 1/2" | Bottom | Glass | 0 psi to 15000 psi | 15000 psi | 3000 psi | Stem Mount | €302.16 | |
 |
G4089L | 1/4" | 4" | Bottom | Glass | 0 psi to 15000 psi | 15000 psi | 3000 psi | Stem Mount | €564.57 | |
 |
G2535L | 1/4" | 2 1/2" | Bottom | Polycarbonate | 0 psi to 10000 psi | 10000 psi | 2000 psi | Stem Mount | €230.08 | |
 |
G4088L | 1/4" | 4" | Bottom | Glass | 0 psi to 10000 psi | 10000 psi | 1000 psi | Stem Mount | €522.90 | |
 |
G2512L | 1/4" | 2 1/2" | Bottom | Glass | 0 psi to 300 psi | 300 psi | 50 psi | Stem Mount | €244.22 | |
 |
G2513L | 1/4" | 2 1/2" | Bottom | Glass | 0 psi to 600 psi | 600 psi | 100 psi | Stem Mount | €244.22 | |
 |
G2514L | 1/4" | 2 1/2" | Bottom | Glass | 0 psi to 1000 psi | 1000 psi | 100 psi | Stem Mount | €238.58 |
